SOAP UI

This method is an alternative to the other methods mentioned above if the user is familiar with SOAP UI.

To identify the requisite fields using SOAP UI:

1. Login to the Oracle Utilities Billing Cloud Service application.

2. Navigate to the page where the test data has to be added. Add the data in the respective fields.

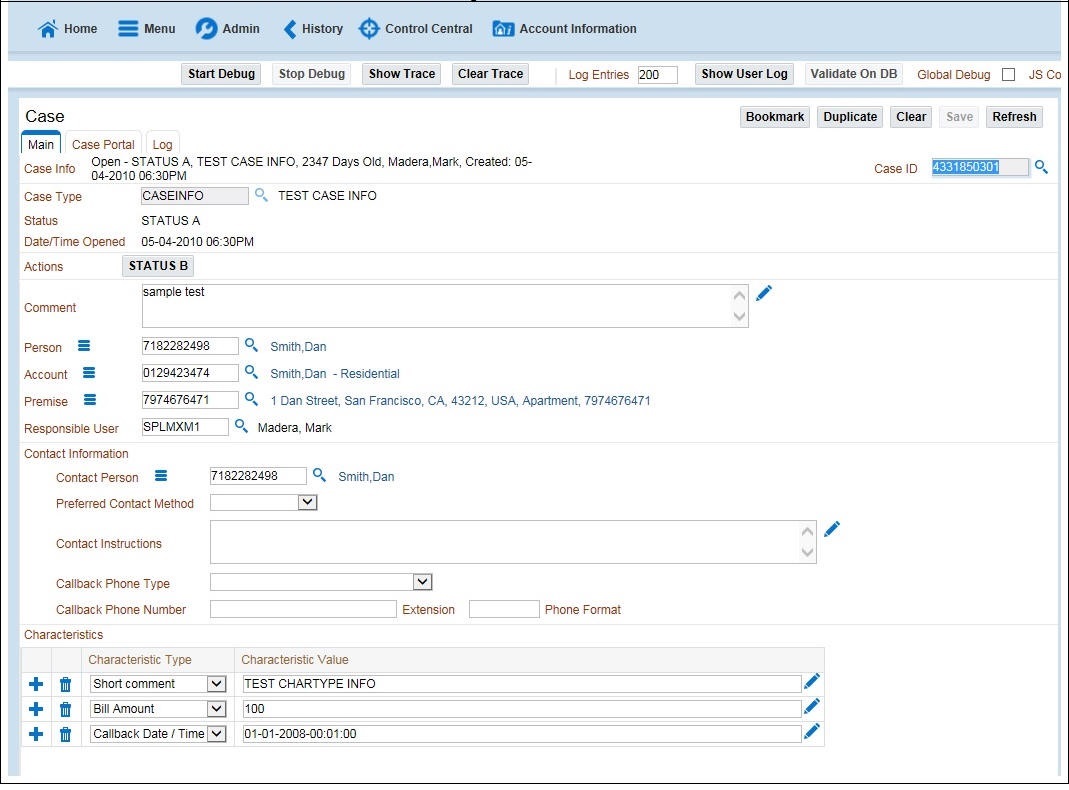

Example: The figure below shows the Case page where Characteristics Type and Characteristic Value are added in the Characteristics section. Shows the page where the test data has to be added.

Shows the page where the test data has to be added.

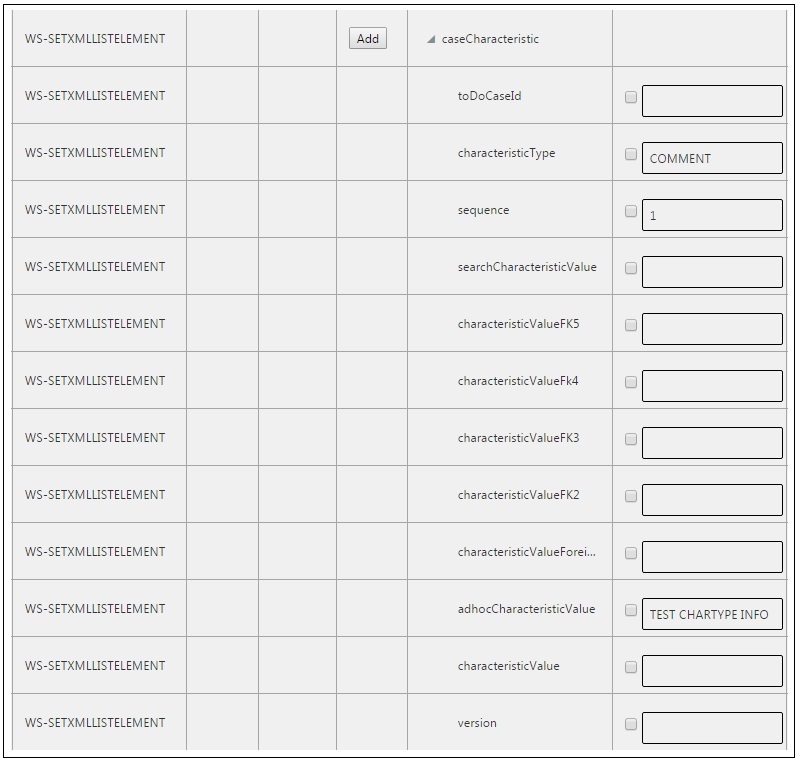

3. On the SOAP UI, perform a Read using the data that has been added on the Case page (in step 2). The result is displayed in the right pane. Shows the right pane on the SOAP UI where a Read is performed.

Shows the right pane on the SOAP UI where a Read is performed.

4. Copy the values and paste them in the respective fields on the flow. Example: COMMENT and TEST CHARTYPE INFO are the values for characteristicType and adhocCharacteristicValue fields.

Note: Not all fields populated on SOAP response need to be populated on the flow. (Example: version, info, other type of description, etc). Shows copying and pasting the values in the respective fields on the flow.

Shows copying and pasting the values in the respective fields on the flow.

5. Click Save.
