Adding Flows to a Flow Set
To add flows to a flow set:
1. Login to the application.
2. Navigate to the Flow Sets menu.
3. On the left pane, click Manage Flow Set. The list of available flow sets is displayed.
4. Select the flow set name to which the flow(s) needs to be added.
5. Click Add Flows. You can search for one or more flows using the wildcard “%” to search for flows matching a name.
Example: Search for all flows that contain the text “person” in their name by searching for string “%person%”.
6. Select the flows from the list and click Add To Flow Set.

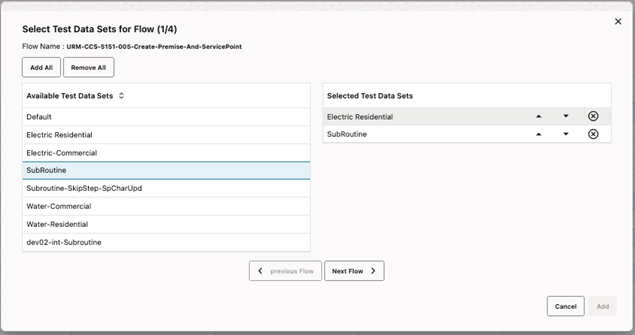

7. On the Select Test Data Sets for Flow page, drag and drop the required flow test data sets from the Available Test Data Set section to the Selected Test Data Sets section. When the flow set is run, the selected flow will be run with all selected test data sets, one at a time, in the specified sequence.
8. If more than one flow is added to the flow set, click Next Flow and select the required flow test data sets for that flow. Repeat this step for all the selected flows.
9. Click Add. The Add button is enabled after the test data sets are specified for all selected flows.
10. Click Close and then click Save to save the flow set.
