1.2 Upload DSL

This topic describes the systematic instructions to upload DSL in Business Process maintenance.

Specify User ID and Password, and login to Home screen.

1. Download the DDAEODWF.json file. This is a standard batch process definition script for Oracle Banking Accounts that includes the list of batch tasks to be automatically executed in a sequence. The user can also download DDACONFIRMEOTIWF.json for the workflow definitions.
2. On Home Screen, under Tasks menu, click Business Process Maintenance to import, create or modify batch process definition
   The Process List screen displays.

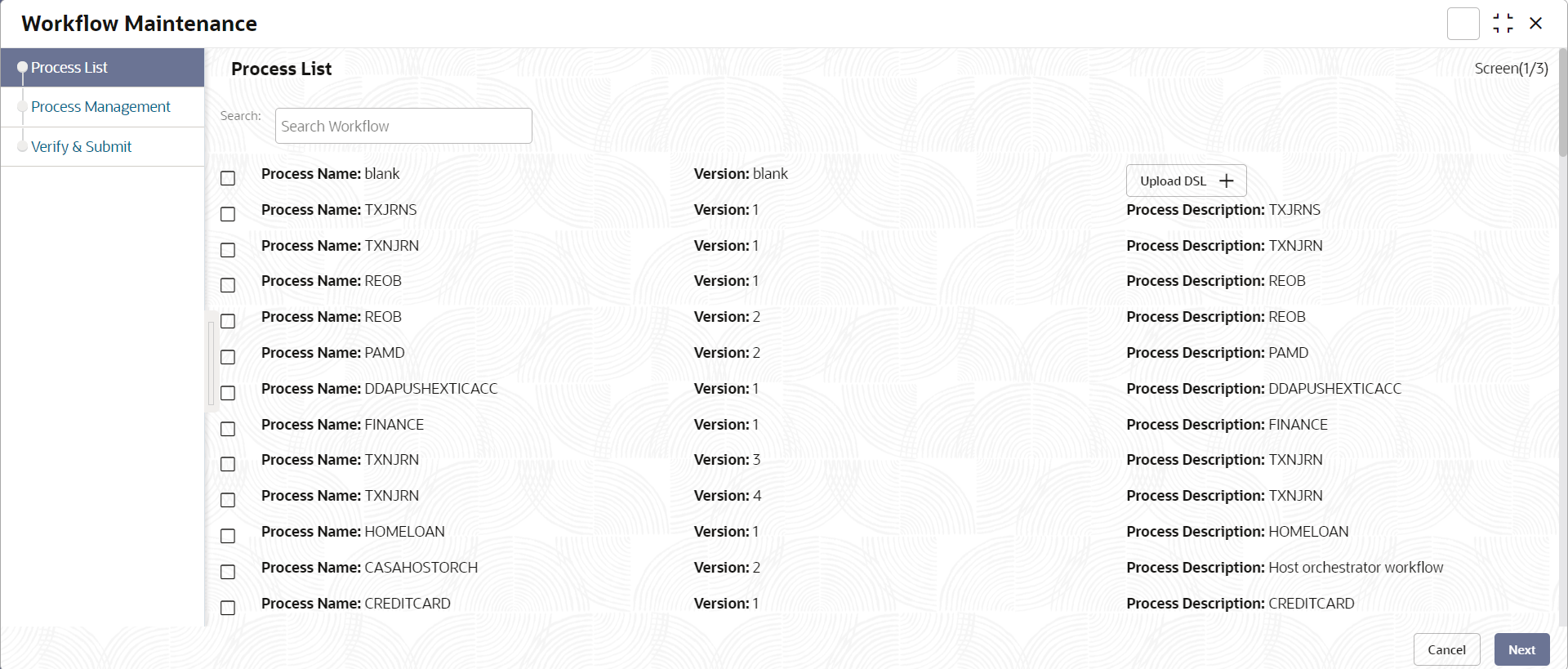

   Figure 1-1 Process List








3. Select the Process Name: blank check box.
4. Click the Upload DSL+ button to upload batch process definition.
5. Select the file DDAEODWF.json from the local folder.
   The Process List – Upload DSL screen displays.

   Figure 1-2 Process List - Upload DSL








6. Click Next button.
   The Process Management screen displays.

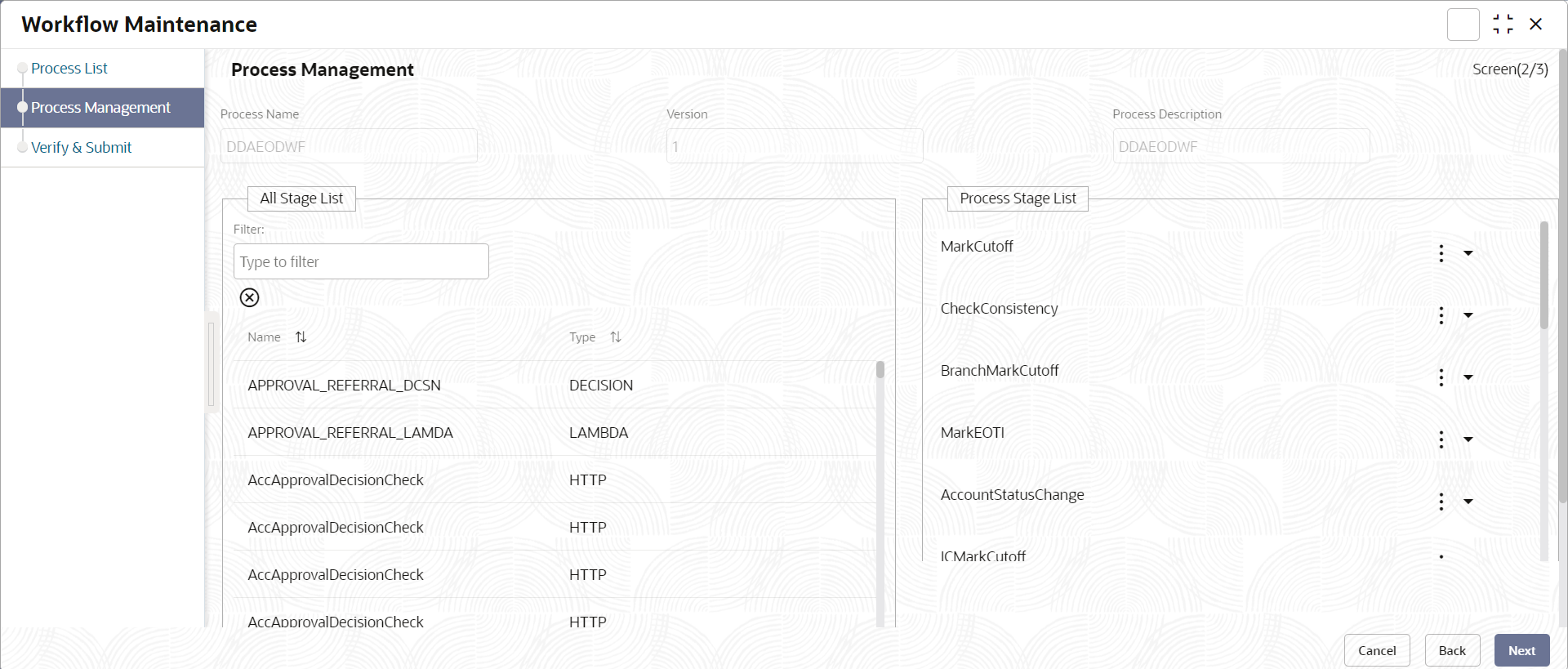

   Figure 1-3 Process Management








7. Click Next button.
   The Verify and Submit screen displays.

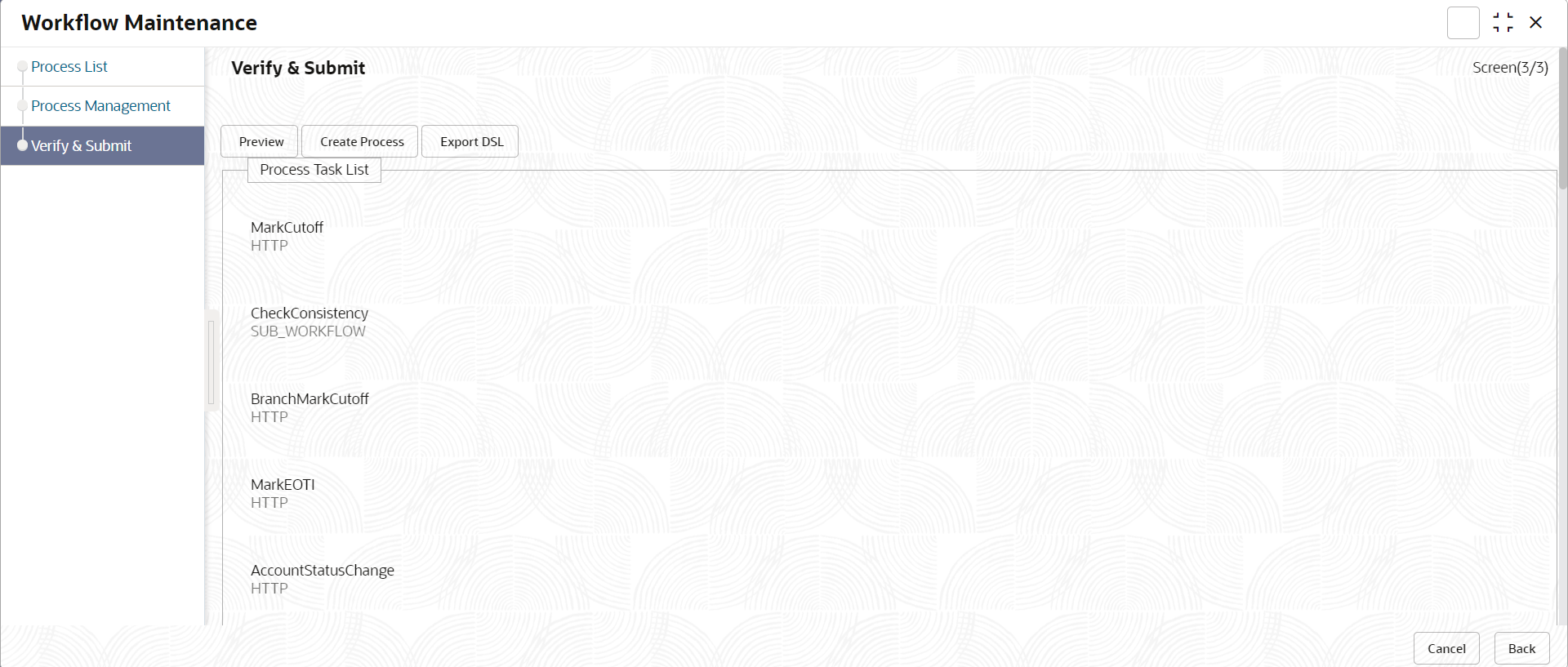

   Figure 1-4 Verify and Submit








8. Click Review or Create Process to register the batch.
