8.1 View Overrides Configuration

This topic describes the systematic instructions to view the list of Overrides configurations.

1. Click Account Configurations, and under Account Configurations, click Overrides Configuration.
2. Under Overrides Configuration, click View.
   The View page displays.

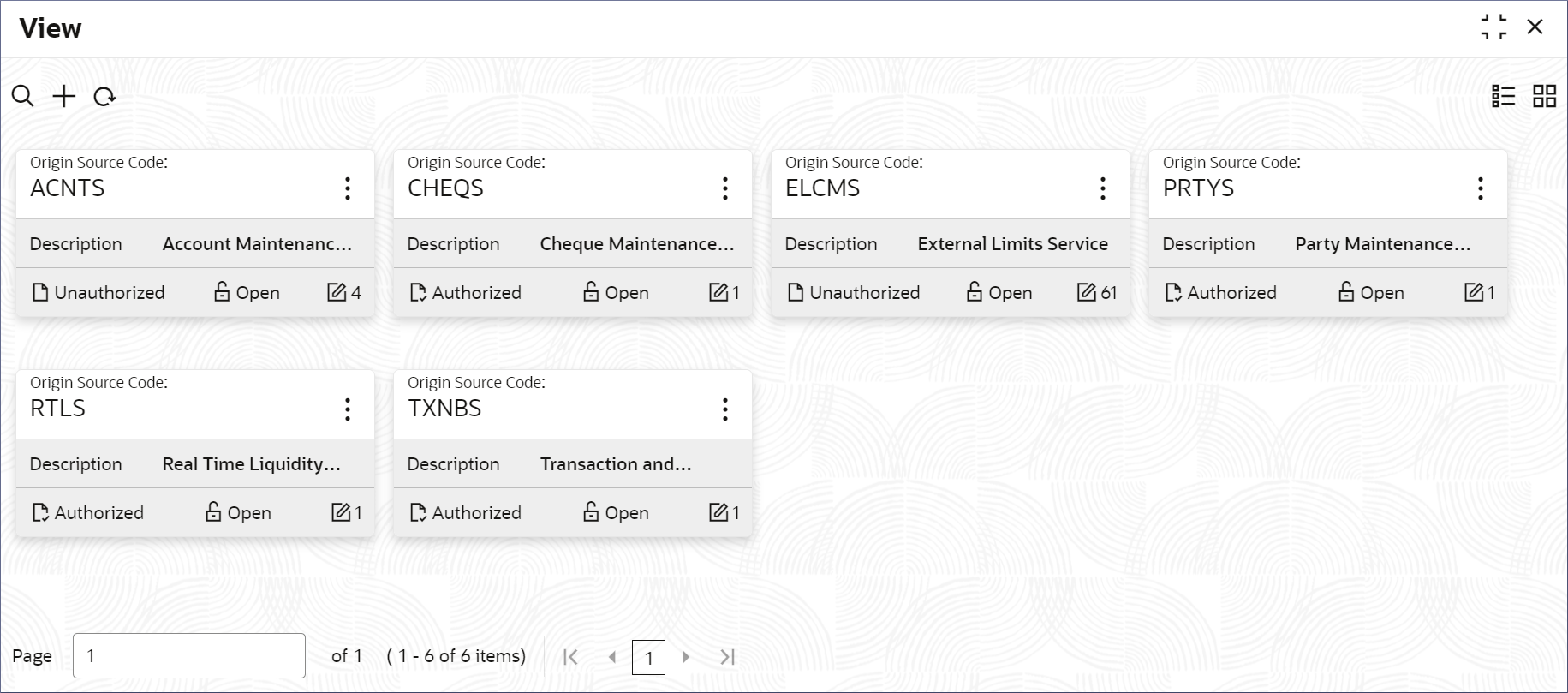

   Figure 8-1 View Overrides Configuration





   Description of "Figure 8-1 View Overrides Configuration"




   Tip:

   Click or to switch between the Tile view and the List view.

   Table 8-1 Overrides Configuration Tile - Field Description

   Field	Description
   Origins Source Code	Displays the Code for the Overrides configuration.
   Description	Displays the description of the Overrides configuration.
   Authorization	Displays the authorization status of the record. Authorized Rejected Unauthorized
   Status	Displays the status of the record. Open Closed

   The following table describes the action items in the More Options () menu and the action items on the page.

   Table 8-2 Action Items Description

   Action Item	Description
   Unlock	Unlock a record and make amendments.
   Close	Close a record to prevent it from being unlocked and amended.
   View	View the details of a record.
   Delete	Delete a record. Note: Once deleted, the component can no longer be used to define an entity. But entities already defined using the component can continue to use it.
   Reopen	Reopen a closed record.
   Authorize	Authorize a record to make it active and available to define entities. Note: Creator of a record cannot authorize the component. Another user with authorize permissions can.
   Audit	Select to view the Maker, Checker, Status, and Modification Number of a record.
   Errors and Overrides	Select to view all existing errors or warnings on the page.

   Note:

   The actions you can perform depend on your role and the record status.
3. View details of an Overrides Configuration.
   1. Click and select View.
      The Overrides Configuration page displays.

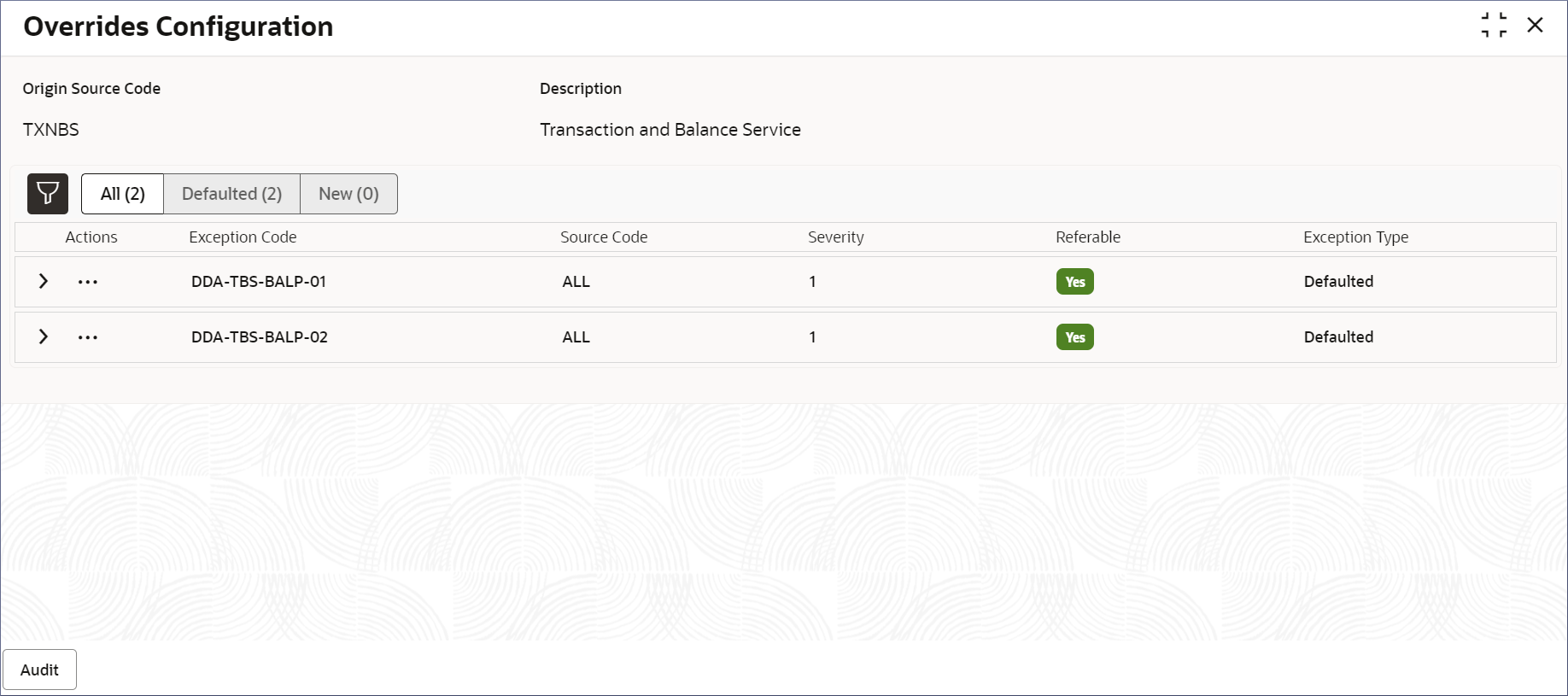

      Figure 8-2 View Overrides Configuration





      Description of "Figure 8-2 View Overrides Configuration"




      Table 8-3 Fields and Column Descriptions

      Column Name	Description
      Origin Source Code	Specifies the origin source of the exception codes.
      Description	Description of the origin source.
      Exception Code	This column lists the exception code added to the origin source.
      Source Code	This column lists the source code to which the exception code applies.
      Severity	This column lists the severity level of the exception.
      Referable	This column lists if the exception is marked for referral.
      Exception Type	This column lists the type of the exception.

   2. Click All, Defaulted, or New buttons to list the corresponding exception codes.
   3. Click in the Actions column and select View.
      The Add Exception Code dialog displays.

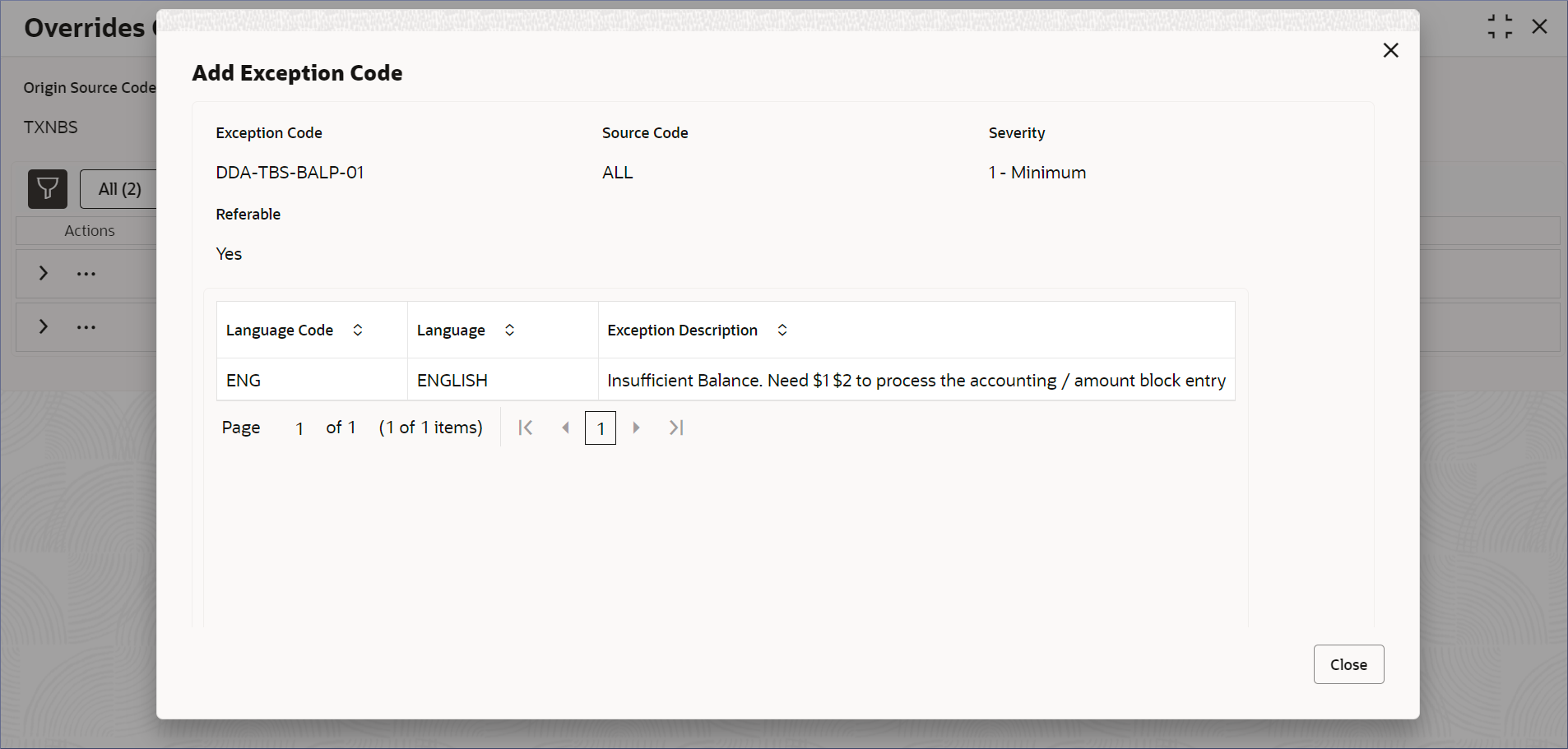

      Figure 8-3 Add Exception Code





      Description of "Figure 8-3 Add Exception Code"



   4. Click Close.
4. Unlock and update an Overrides Configuration.
   1. Click and select Unlock.
      The Overrides Configuration page displays.

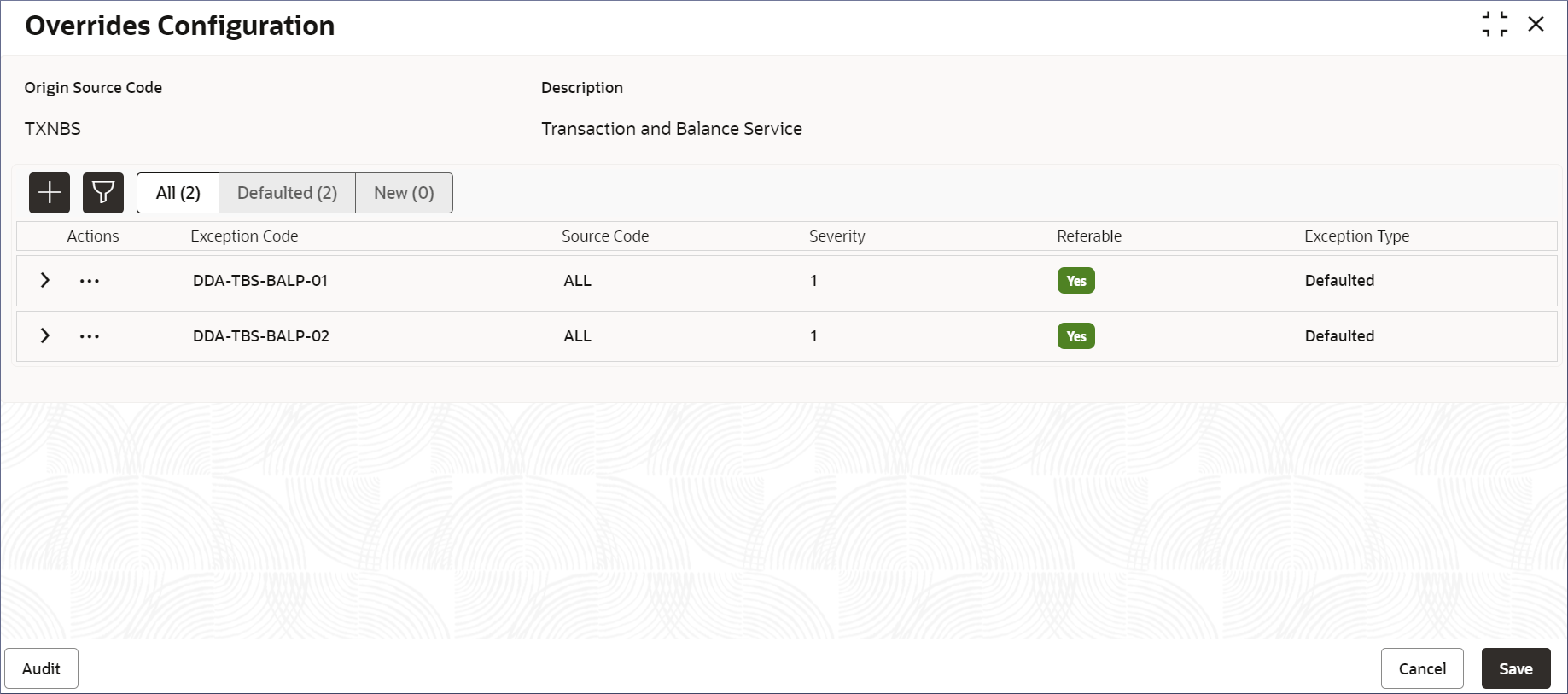

      Figure 8-4 Overrides Configuration - Unlock





      Description of "Figure 8-4 Overrides Configuration - Unlock"



   2. To add a new Exception Code, click .
      1. click .
         The Add Exception Code dialog displays.

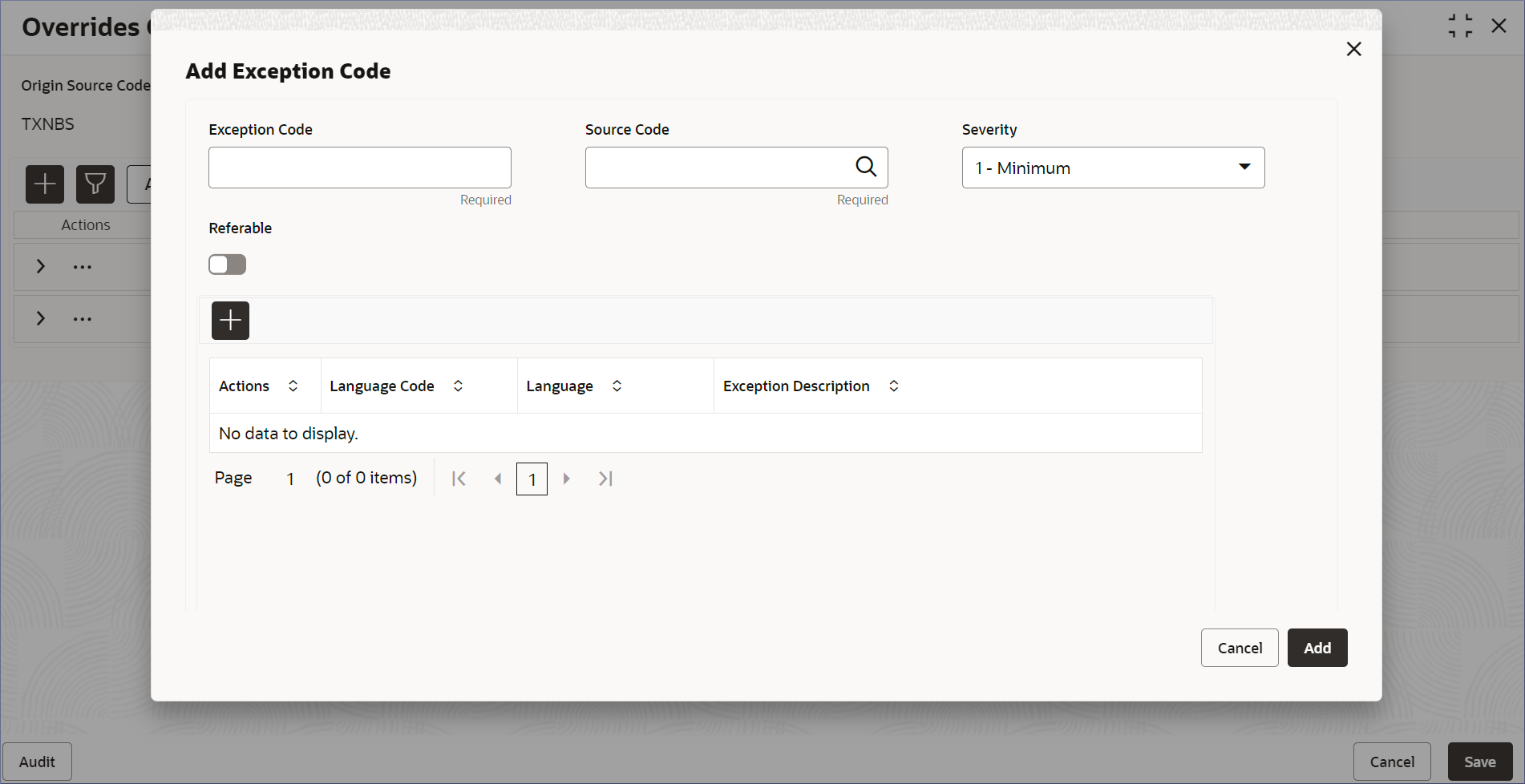

         Figure 8-5 Add Exception Code





         Description of "Figure 8-5 Add Exception Code"



      2. Specify the required fields.

         Table 8-4 Field Description

         Field	Description
         Exception Code	Specify an alphanumeric code for the exception.
         Source Code	Specify the Source Code for which the Exception Code is specified.
         Severity	Specify the Severity of the exception. You can specify a value from one to ten, where One represents the minimum severity and 10 represents the maximum severity.
         Referable	Enable to mark an exception for a Referral.

      3. To add a new language Code for the Exception code, click .

         A new blank row is added to the Language Code table.

      4. Double click the Language Code column to activate the row.
      5. Specify the Language Code.

         The Language column is auto-populated.

      6. Enter a Description for the Exception code.
      7. Click Add.

         The Overrides Configuration page displays the new Exception Code in a new row.

   3. Edit an Exception code.
      1. Click in the Actions column and select ,Edit.

         The Add Exception Code dialog displays.

      2. Perform the required edits.
      3. Click Save.
   4. Delete an Exception code.
      1. Click in the Actions column and select ,Delete.
         The exception code is deleted.

         Note:

         You can only delete exception codes that you added in the same session.
5. Approve or Reject Overrides.
   1. From the Search Filter, search for the required record that is in an Unauthorized and Open state.
   2. Click and select Authorize.
      The View page displays.

      Figure 8-6 Approve the Record





      Description of "Figure 8-6 Approve the Record"




      Table 8-5 Authorize View

      Field Name	Description
      Mod Number<N>	Indicates the number of times the record was modified. Where N represents the number of modifications. Note: For a newly created record the modification number is 1.
      Done By	Name of the user who performed the latest modification.
      Done On	Date on which the record was modified.
      Record Status	The status of the record. Note: To authorize a record, its status should be Open.
      Once Auth	Specifies if the record was authorized at least once. Note: For a newly created record, the value is No.
      Compare (Button)	Click to compare the modified record with the previous version of the record.
      View (Button)	Click to display the record details.

   3. Click the check box besides Mod Number<N> to select the modified record.
   4. Click Approve or Reject.
      The Confirm dialog displays.
   5. Enter any remarks and click Confirm.
      A toast message confirms the successful approval or rejection of the record.
