1.3.2 About Transaction Area

The transaction area consists of a transaction panel, a Customer Information widget, and additional widgets within the Teller Transaction screens.

A sample of the transaction area is shown below:

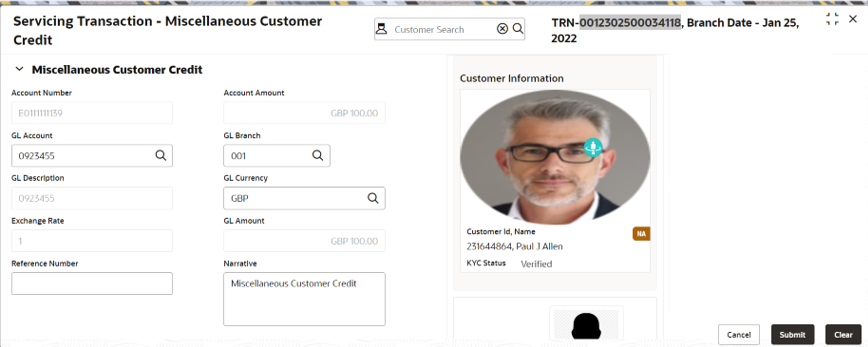

Figure 1-4 Transaction Area

Description of "Figure 1-4 Transaction Area"

Transaction Header

The transaction header is specific to each transaction screen. The following details are provided in the transaction header:

Table 1-4 Transaction Header

Item	Description
Transaction Screen Name	Displays the name of the selected transaction screen.
Customer Search	For information on the Customer Search, refer to Customer Search.
Branch Date	Displays the current branch date.

Transaction Panel

The transaction panel consists of the data segments with the necessary input fields and action buttons. Users need to specify the details in the fields to perform the transactions.

Customer Information

The Customer Information widget provides the details about the customer that are validated during transaction submission.

Table 1-5 Customer Information

Field	Description
Display Option	The Customer Information widget is displayed only if this option is selected. Note: The display option is based on the Y/N static maintenance maintained in the function code indicator table. You need to enable it in the SRV_TM_BC_FUNCTION_INDICATOR table.
Customer's Image	Displays the image of the customer.
Customer's Name	Displays the name of the customer.
KYC Status	Displays the KYC status of the customer's details.
Signature	Displays the signature of the customer.
Account Details	Displays the details of the customer account.
Address Details	Displays the address details of the customer.
Contact Details	Displays the contact details of the customer.
