15.2 View State Group Parameters

This topic describes the systematic instructions to view the list of configured State Group parameters.

1. Click Account Configurations, and under Account Configurations, click State Group Parameters, then click View State Group Parameters.
   The View State Group Parameters page displays.

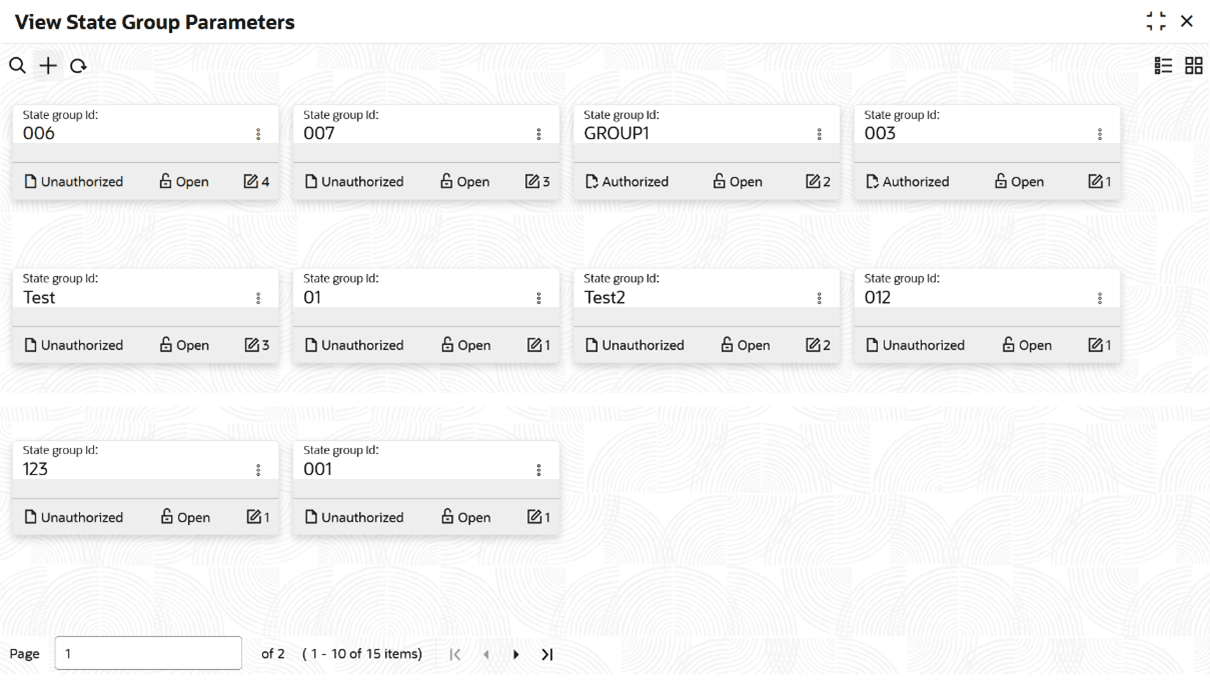

   Figure 15-2 View State Group Parameters





   Description of "Figure 15-2 View State Group Parameters"




   Tip:

   Click or to switch between the Tile view and the List view.

   Table 15-2 State Group Parameters Tile - Field Description

   Field	Description
   State Group ID	Displays the State Group ID.
   Authorization	Displays the authorization status of the record. Authorized Rejected Unauthorized
   Status	Displays the status of the record. Open Closed

   The following table describes the action items in the More Options () menu and the action items on the page.

   Table 15-3 Action Items Description

   Action Item	Description
   Unlock	Unlock a record and make amendments.
   Close	Close a record to prevent it from being unlocked and amended.
   View	View the details of a record.
   Delete	Delete a record. Note: Once deleted, the component can no longer be used to define an entity. But entities already defined using the component can continue to use it.
   Reopen	Reopen a closed record.
   Authorize	Authorize a record to make it active and available to define entities. Note: Creator of a record cannot authorize the component. Another user with authorize permissions can.
   Audit	Select to view the Maker, Checker, Status, and Modification Number of a record.
   Errors and Overrides	Select to view all existing errors or warnings on the page.

   Note:

   The actions you can perform depend on your role and the record status.
2. View the details of a State Group Parameters tile.
   1. Click and select View.
      The State Group Parameters page displays.
   2. Click Audit.
      A dialog displays the Maker, Checker, Status, and Modification Number.
3. Unlock and update State Group Parameters.
   1. Click and select Unlock.
      The State Group Parameters page displays.

      Note:

      The fields that are grayed out cannot be updated.
   2. Edit the required fields.

      Note:

      For more information on editing the State Group Parameters, see Create State Group Parameters.
   3. Click Save.
4. Approve or Reject the State Group Parameters.
   1. From the Search Filter, search for the required record that is in an Unauthorized and Open state.
   2. Click and select Authorize.
      The View page displays.

      Figure 15-3 Approve the Record





      Description of "Figure 15-3 Approve the Record"




      Table 15-4 Authorize View

      Field Name	Description
      Mod Number<N>	Indicates the number of times the record was modified. Where N represents the number of modifications. Note: For a newly created record the modification number is 1.
      Done By	Name of the user who performed the latest modification.
      Done On	Date on which the record was modified.
      Record Status	The status of the record. Note: To authorize a record, its status should be Open.
      Once Auth	Specifies if the record was authorized at least once. Note: For a newly created record, the value is No.
      Compare (Button)	Click to compare the modified record with the previous version of the record.
      View (Button)	Click to display the record details.

   3. Click the check box besides Mod Number<N> to select the modified record.
   4. Click Approve or Reject.
      The Confirm dialog displays.
   5. Enter any remarks and click Confirm.
      A toast message confirms the successful approval or rejection of the record.
   6. On the View screen, click Audit.
      The following screen displays. This screen displays Date and Time details of the Branch.

      Figure 15-4 Audit - Branch Time Zone





      Description of "Figure 15-4 Audit - Branch Time Zone"



   7. Click UTC tab.
      The following screen displays. This screen displays Universal Date and Time.

      Figure 15-5 Audit - UTC





      Description of "Figure 15-5 Audit - UTC"
