3 Configure Account Services

You can maintain the routing configuration of the Oracle Banking Routing Hub in the common core for CASA transitions of the Oracle Banking Retail Lending Cloud Services to create, update, and query the host system.

The user should construct the host name according to the template below:

obpm-apigateway-router.fsgbu-obcbcs-<environment>—obfc-<account name> Port: 8080

The values for environment and account name are available in the app-shell URL as provisioned: https://<account name>.obcs.ocs.oc-test.com/<environment>/app-shell/.

The environment value mapping from URL to OBRH Integration configuration is as follows:

Table 3-1 Environment Value Mapping

Environment URL Value OBRH Configuration Value
Premium Non Production non-prod nonprod
Premium Pre-Production pre-prod preprod
Premium Production prod prod
Partner partner partner
Standard Non Production non-prod-std nonprod-std
Standard Pre-Production pre-prod-std preprod-std
Standard Production prod-std prod-std
Refer the examples below:
  1. Account Name: demobank1

    Environment Provisioned: Standard - Non Production

    OBRH Integration Host Name: obpm-apigateway-router.fsgbu-obcbcs-nonprod-std—obfc-demobank1

  2. Account Name: demobank1

    Environment Provisioned: Standard - Production

    OBRH Integration Host Name: obpm-apigateway-router.fsgbu-obcbcs-prod-std—obfc-demobank1

  3. Account Name: demopartner

    Environment Provisioned: Partner

    OBRH Integration Host Name: obpm-apigateway-router.fsgbu-obcbcs-partner—obfc-demopartner

Note:

Port will be 8080, that is common for all the environment.
Follow the steps below:
  1. From the menu, under Core Maintenance, search Service Consumers.
    The Service Customers screen is displayed.

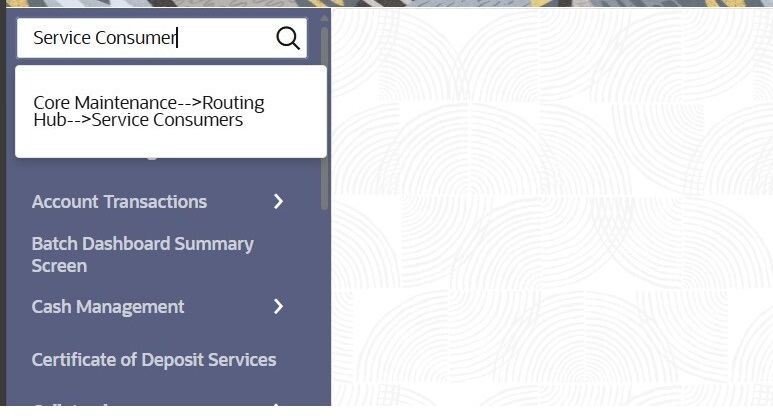

    Figure 3-1 Service Consumers - Search


    Description of Figure 3-1 follows
    Description of "Figure 3-1 Service Consumers - Search"

  2. From the List of Service Consumers field, search CASA_SERVICES_RDDA and click View More.
    The search result is displayed.

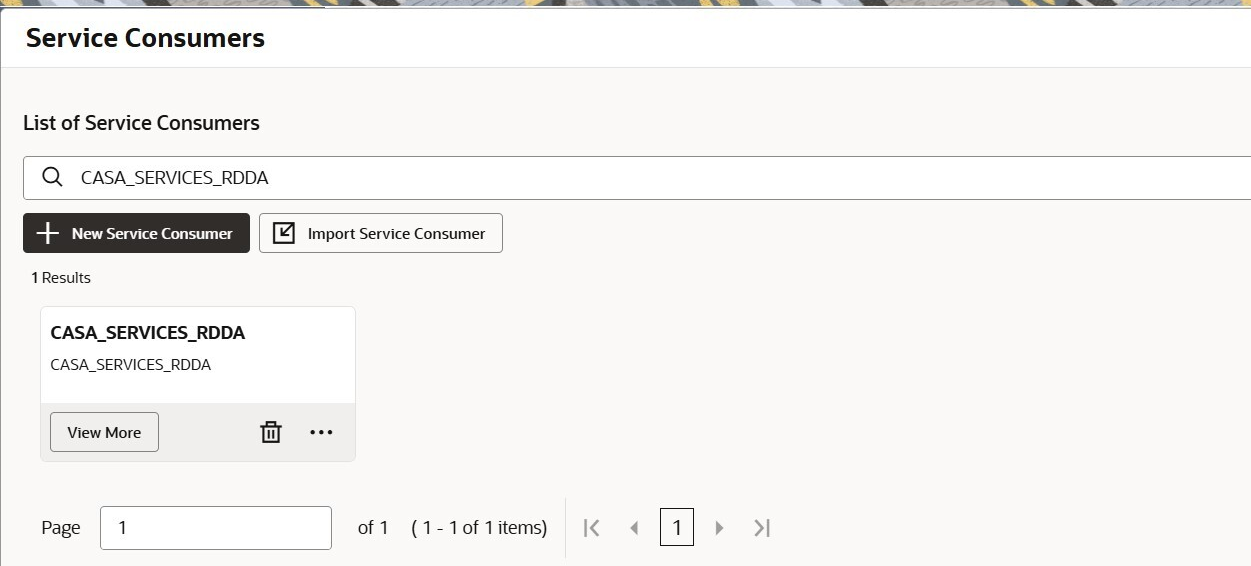

    Figure 3-2 Service Consumers


    Description of Figure 3-2 follows
    Description of "Figure 3-2 Service Consumers"

  3. Navigate to the Service Provides tab, search for RDDA_OBPM, and click View More.
    The details are displayed.

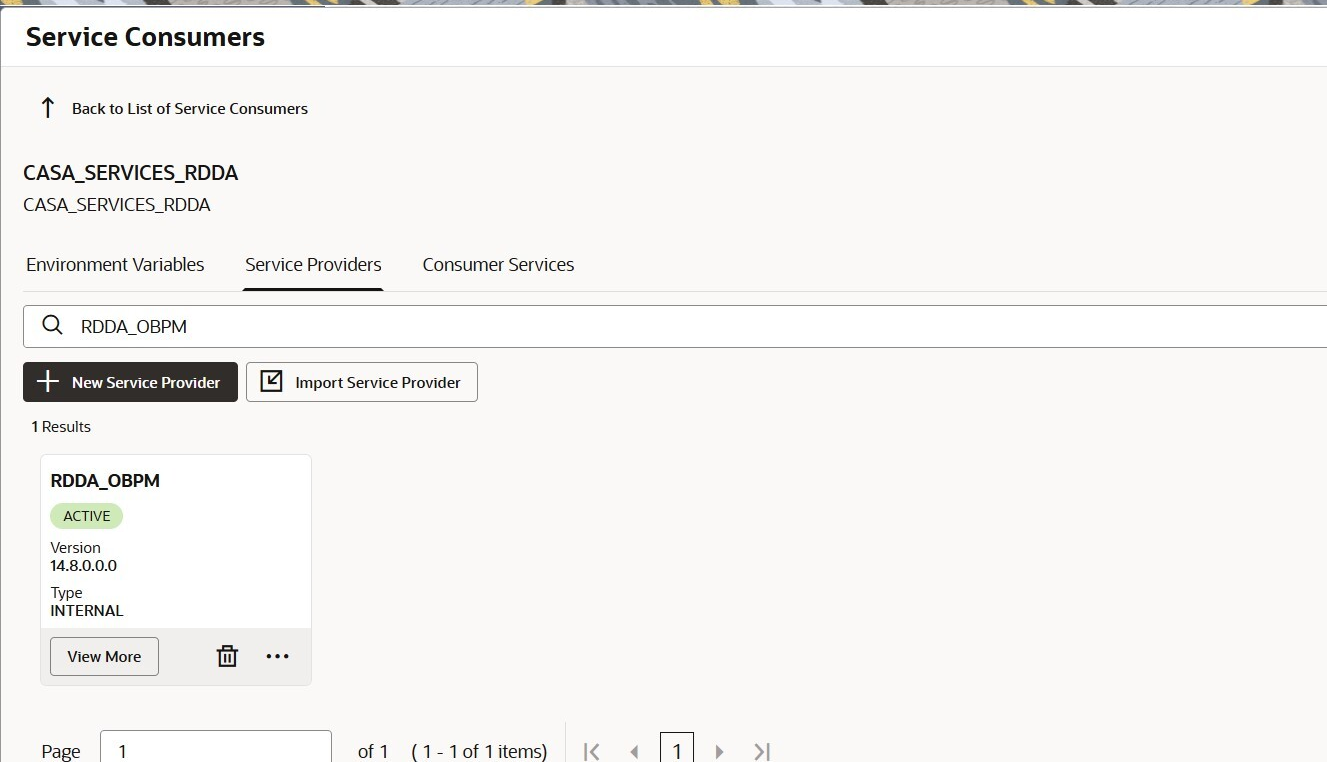

    Figure 3-3 Service Providers tab


    Description of Figure 3-3 follows
    Description of "Figure 3-3 Service Providers tab"

  4. From the Actions field, click the Edit icon.
  5. Add host and port for OBPM service as per the template shared by OBPM team.

    Note:

    Template: obpm-apigateway-router.fsgbu-obcbcs-<environment>—obfc-<account name> Port: 8080

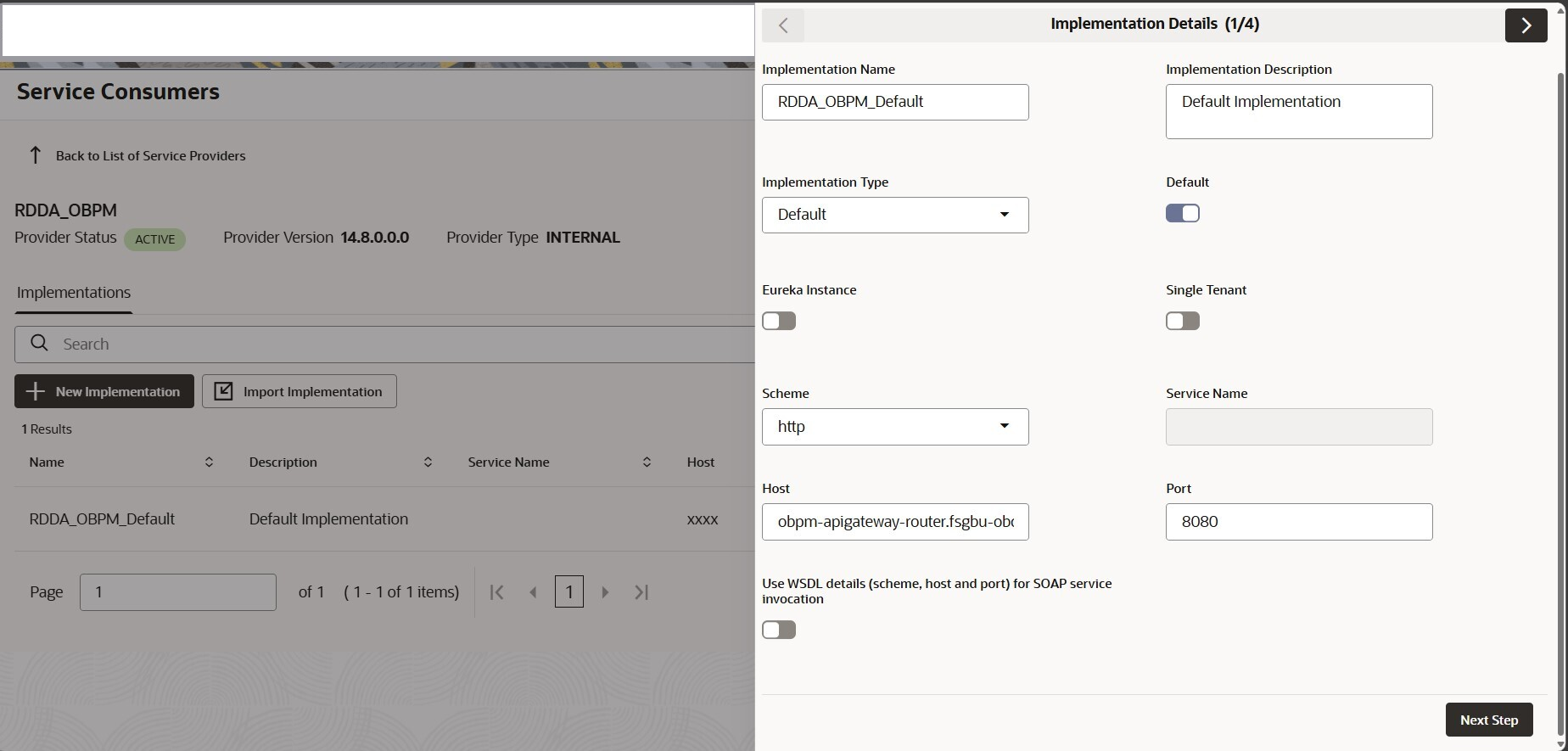

    Figure 3-5 Implementation Details


    Description of Figure 3-5 follows
    Description of "Figure 3-5 Implementation Details"

  6. Click Next Step, until you see the Save button.

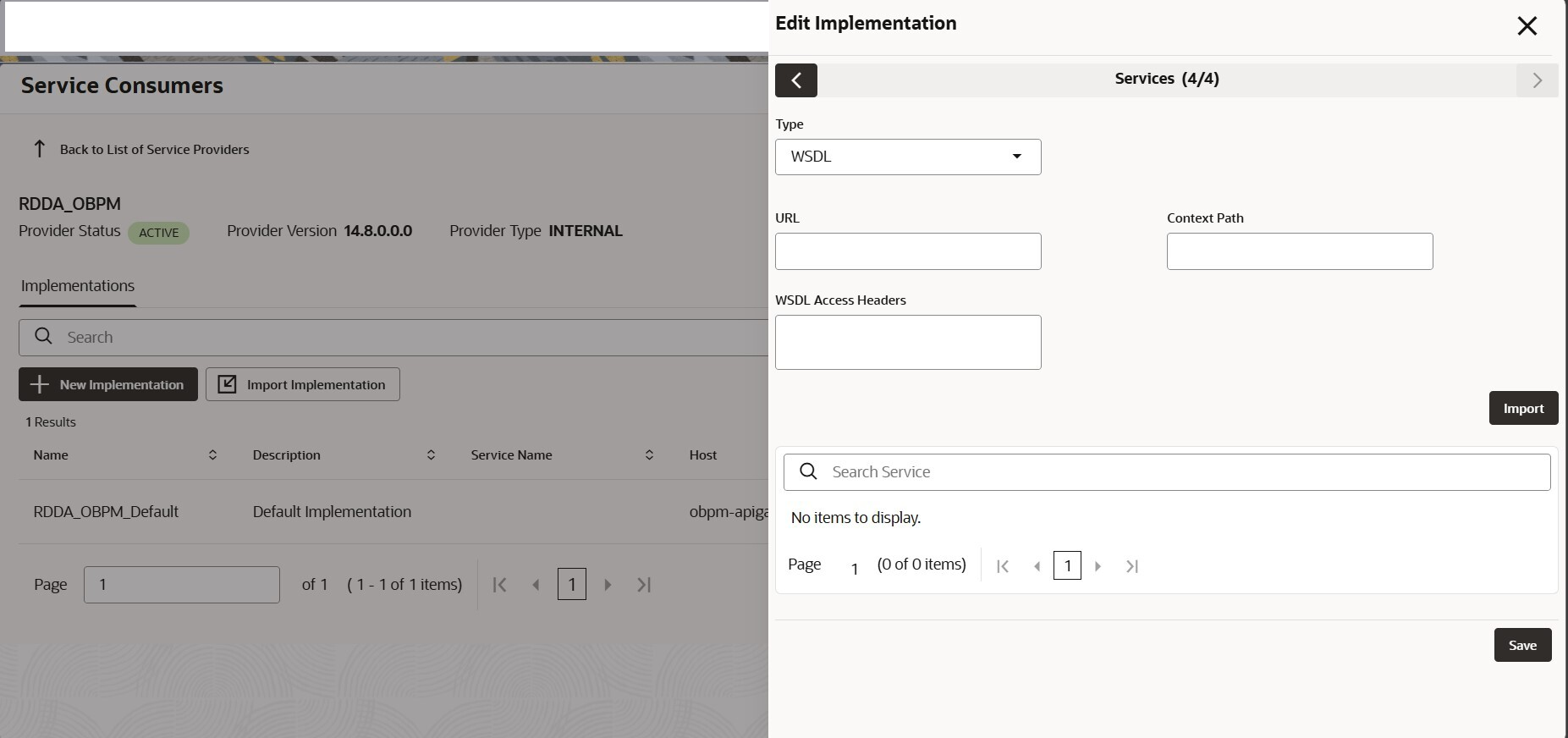

    Figure 3-6 Edit Implementation


    Description of Figure 3-6 follows
    Description of "Figure 3-6 Edit Implementation"

  7. Click Save.
