46.8.2 Delete Mapping

This topic describes the systematic instruction to Delete Mapping overlay screen.

Using this option System Administrator can delete the templates mapped to a User or Party or User Segment or to a User Type.

To delete the mapped dashboard template:

1. Navigate to one of the above paths.
   The Dashboard Overview screen appears.
2. In the Dashboard Overview screen, click the View Mapping tab.
   The Dashboard Overview - Mapping summary screen appears.
3. Select the Mapping Type from the list i.e. User / Party / Segment / User Type.
4. In Action column against the already created dashboard template, click on the icon, and then click Delete against the template mapping that you want to delete. T
   The application will prompt the administrator with a deletion message with an option of Confirm/ Cancel.

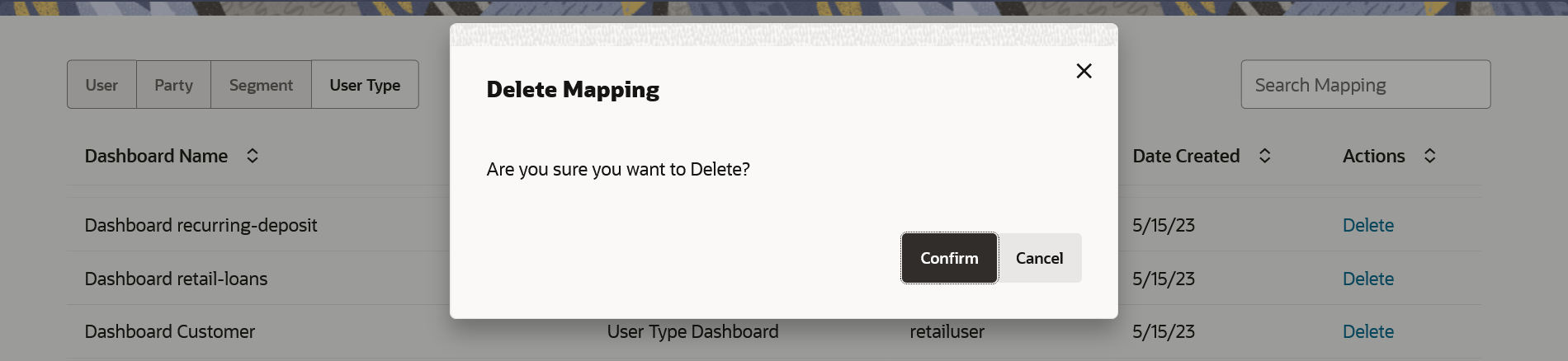

   Figure 46-15 Delete Mapping





   Description of "Figure 46-15 Delete Mapping"



5. Perform anyone of the following actions:
   • Click Confirm to delete the mapping. It will navigate to confirmation page with a success message and the status.
   • Click Cancel if you do not wish to delete the mapping.
6. Click OK to complete the transaction.
