13 Troubleshoot Overview

This section describes how to troubleshoot OBDX setup.

Invalid database password

This topic contains troubleshooting information if you receive an error when attempting to connect to the database server.

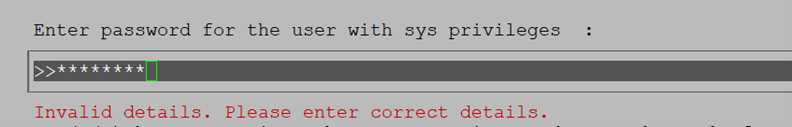

If you get the following error:

Try one of the following:

• Verify that the database is running.
• Check Network connectivity between Weblogic Server and Database server.
• Check the database configuration in installer.properties file
• Verify that the entered password is correct.

cx_oracle module

This topic contains troubleshooting information about problems with cx_Oracle python module.

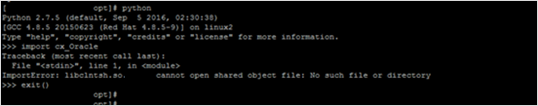

If you get the following error:

Execute the below command:

export LD_LIBRARY_PATH=/usr/lib/oracle/19.10/client64/lib:$LD_LIBRARY_PATH
python
 import cx_Orace     cx_Oracle.__version__

Failed Database Scripts

This topic contains troubleshooting information in case of database script failures.

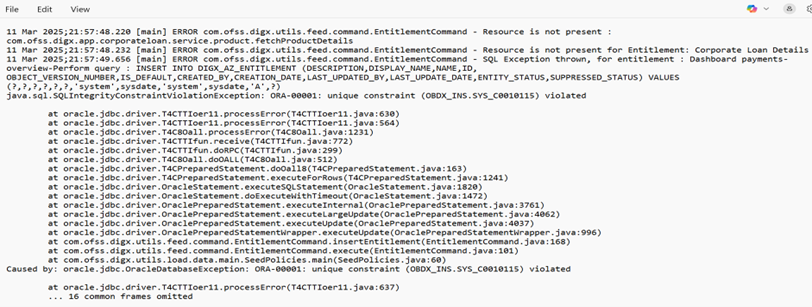

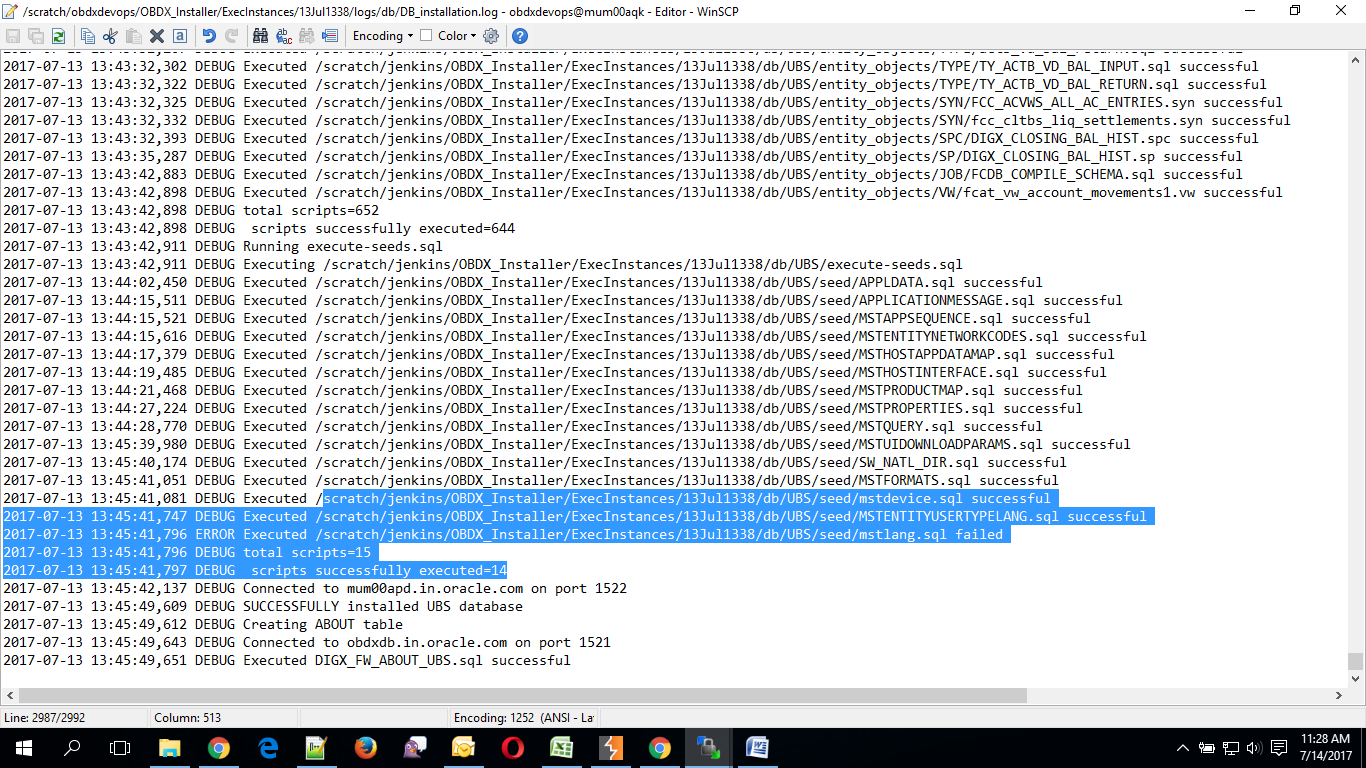

If you get the following error in DB_installation.log:

Entitlement.log :

Failure of Policy Seeding

This topic contains troubleshooting information if policy seeding fails during installation.

If you get the following error:

Try one of the following:

Check if Entitlement.log is created on
        following path <OBDX INSTALLER DIR>/ExecInstances/<DDMonthHHMM>/logs/db/ and contains any SEVERE
        errors for Entitlement policy seeding.
Check if Task.log is created on following
        path <OBDX INSTALLER DIR>/ExecInstances/<DDMonthHHMM>/logs/db/ and contains any SEVERE errors
        for Task policy seeding.
Check if Dashboard_seed.log is created on
        following path <OBDX INSTALLER DIR>/ExecInstances/<DDMonthHHMM>/logs/db/ and contains any SEVERE
        errors for Dashboard policy seeding.

• Check the seedPolicies.log in <OBDX INSTALLER DIR>/ExecInstances/<DDMonthHHMM>/logs/db/ directory if it contains any runtime errors generated during execution of the policies Seeding in OBDX schema

Fix the problem by following below steps:

• Login to OBDX installer server.
• Over-write the policies files (Day0Policy.csv; Entitlement.csv; Resources.csv and Task.csv) from OBDX Product zip into <OBDX INSTALLER DIR>/installables/policies directory.
• Browse to <OBDX INSTALLER DIR>\ installables\policies.

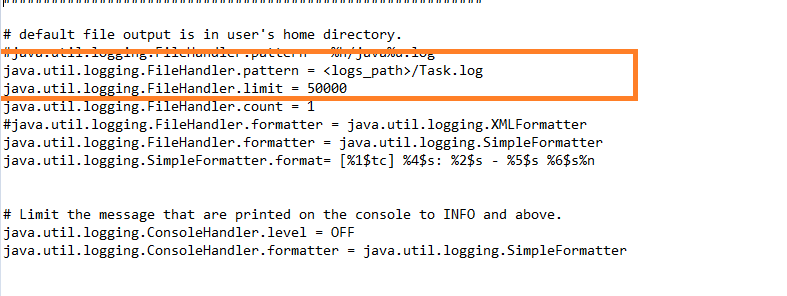

• Edit Entitlement_log4j.properties , Task_log4j.properties & Dashboard_seed_log4j.properties . Replace <logs_path> with directory where policy seeding logs will be generated.

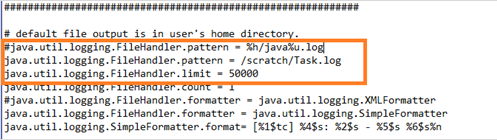

  Example










• Run below command manually if “SEVERE” error logs are found in Task.log.

  java -jar -Djava.util.logging.config.file='<logs.properties>’ com.ofss.digx.utils.feed.data.task.jar
            "Task.csv"  "oracle.jdbc.OracleDriver,<OBDX Schema name>,<OBDX Schema password>,
  jdbc:oracle:thin:@<OBDX DB hostname or IP>:<OBDX DB listener port>/<OBDX Service Name>"

  Example

  java -jar -Djava.util.logging.config.file='Task_log4j.properties’
          com.ofss.digx.utils.feed.data.task.jar ‘Task.csv’
          "oracle.jdbc.OracleDriver,OBDX_THP181,Welcome#1,jdbc:oracle:thin:@
          xx.xx.xx.xx:1521/OBDX"

• Run below command manually if “SEVERE” error logs are found in Entitlement.log.

  java -jar -Djava.util.logging.config.file='<logs.properties>’
          com.ofss.digx.utils.entitlement.feed.data.jar
            ‘Resources.csv,Entitlement.csv,Day0Policy.csv’
            'KERNEL'  "oracle.jdbc.OracleDriver,<OBDX
          Schema name>,<OBDX Schema password>,jdbc:oracle:thin:@<OBDX DB hostname or IP>:<OBDX DB listener
          port>/<OBDX Service Name>"

  Example

  java -jar -Djava.util.logging.config.file='Entitlement_log4j.properties’
  com.ofss.digx.utils.entitlement.feed.data.jar  ’Resources.csv,Entitlement.csv,Day0Policy.csv’
  'KERNEL' "oracle.jdbc.OracleDriver,OBDX_THP201,Welcome#1,jdbc:oracle:thin:@
          xx.xx.xx.xx:1521/OBDX"

  Note:

  Remove the space between multiple csv’s if there is any.
• Run below command manually if “SEVERE” error logs are found in Dashboard_seed.log.

  java -jar -Djava.util.logging.config.file='<logs.properties>’
            com.ofss.digx.utils.dashboard.jar  ‘<path>/
            dashboard_json’  "oracle.jdbc.OracleDriver,<OBDX
          Schema name>,<OBDX Schema password>,jdbc:oracle:thin:@<OBDX DB hostname or IP>:<OBDX DB listener
          port>/<OBDX Service Name>"

  Example

  java -jar -Djava.util.logging.config.file= Dashboard_seed_log4j.properties’
            com.ofss.digx.utils.dashboard.jar
            ‘/installables/policies/dashboard_json’
          "oracle.jdbc.OracleDriver,OBDX_THP201,Welcome#1,jdbc:oracle:thin:@xx.xx.xx.xx:1521/OBDX"

• Post successfully execution, restart Managed server.
