53.3.1 Client Maintenance - Search

This topic describes the systematic instruction to Client Maintenance - Search option.

User can search for any maintained Clients by entering the required search parameters.

To search for any maintained client:

1. Navigate to the above path.
   The Client Maintenance screen appears.
2. Enter the Client Name as one of the search criteria.
3. Perform anyone of the following actions:
   • Click Search. The search summary appears.
   • Click Cancel to cancel the transaction.
   • Click Clear if you want to reset the search parameters.

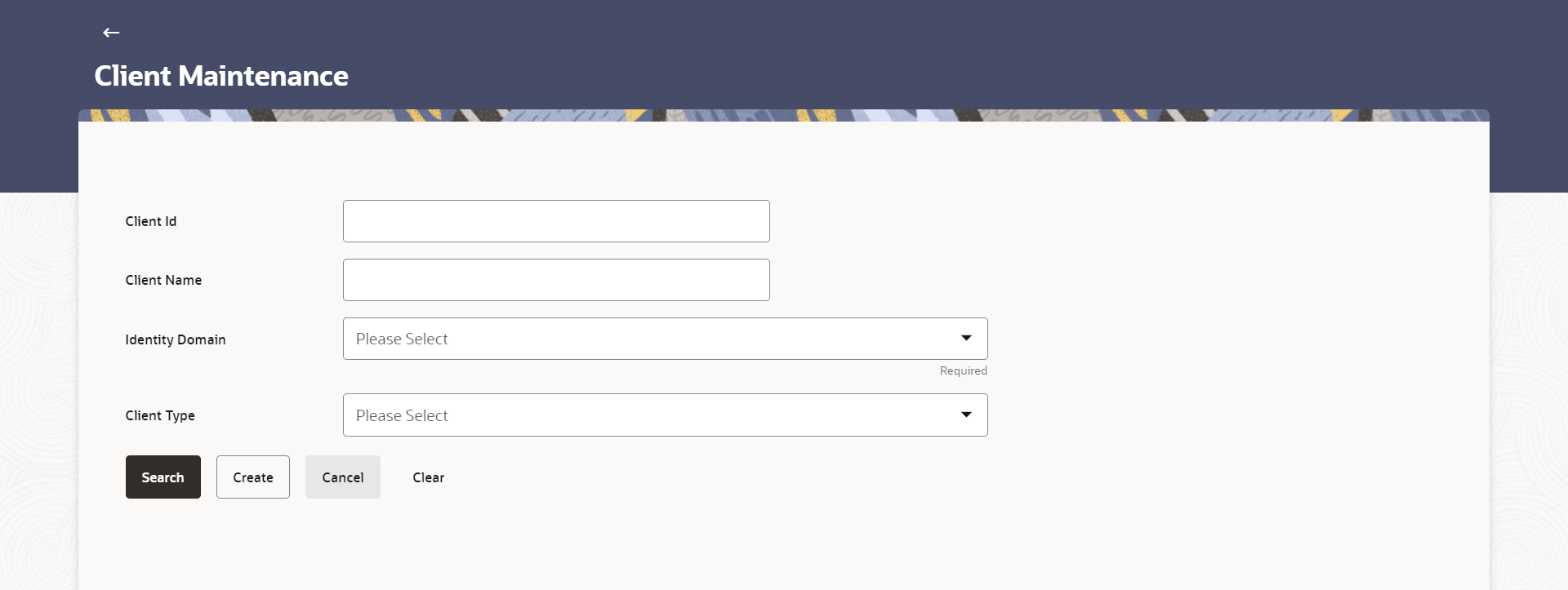

   Figure 53-11 Client Maintenance – Search





   Description of "Figure 53-11 Client Maintenance – Search"

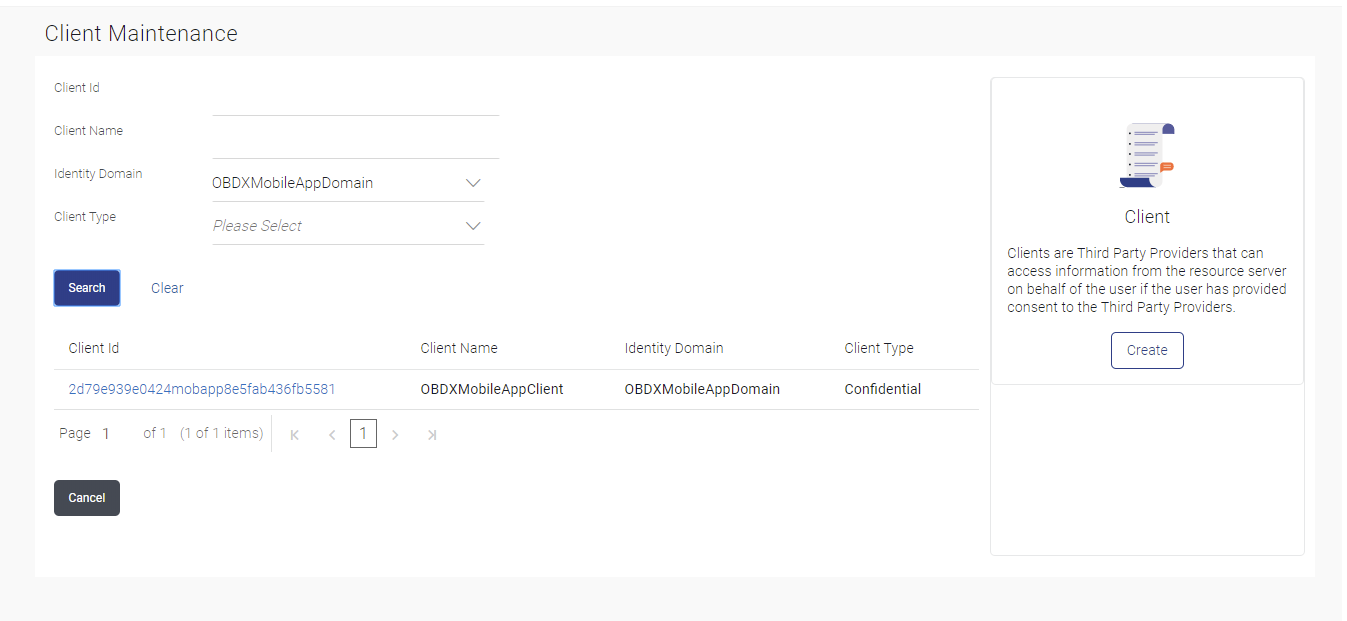

   Figure 53-12 Client Maintenance – Search Summary





   Description of "Figure 53-12 Client Maintenance – Search Summary"




   Note:

   The fields which are marked as Required are mandatory.

   For more information on fields, refer to the field description table.

   Table 53-7 Client Maintenance – Search Summary- Field Description

   Field Name	Description
   Client ID	Specify the Client ID that is to be searched.
   Client Name	Specify the Client Name if the client needs to be searched based on client name.
   Identity Domain	Select the Identity Domain in which the client needs to be searched.
   Client Type	Select the type of client based on which search is to be done.
   Search Result	Information specified in below fields are related to search results.
   Client ID	System displays the client ID of the client based on the input search parameters.
   Client Name	System displays the client name of the client based on the input search parameters.
   Identity Domain	System displays the name of identity domain to which client belongs.
   Client Type	System displays the client type for the searched client.

4. Click on Client Id link to view details of the selected client.

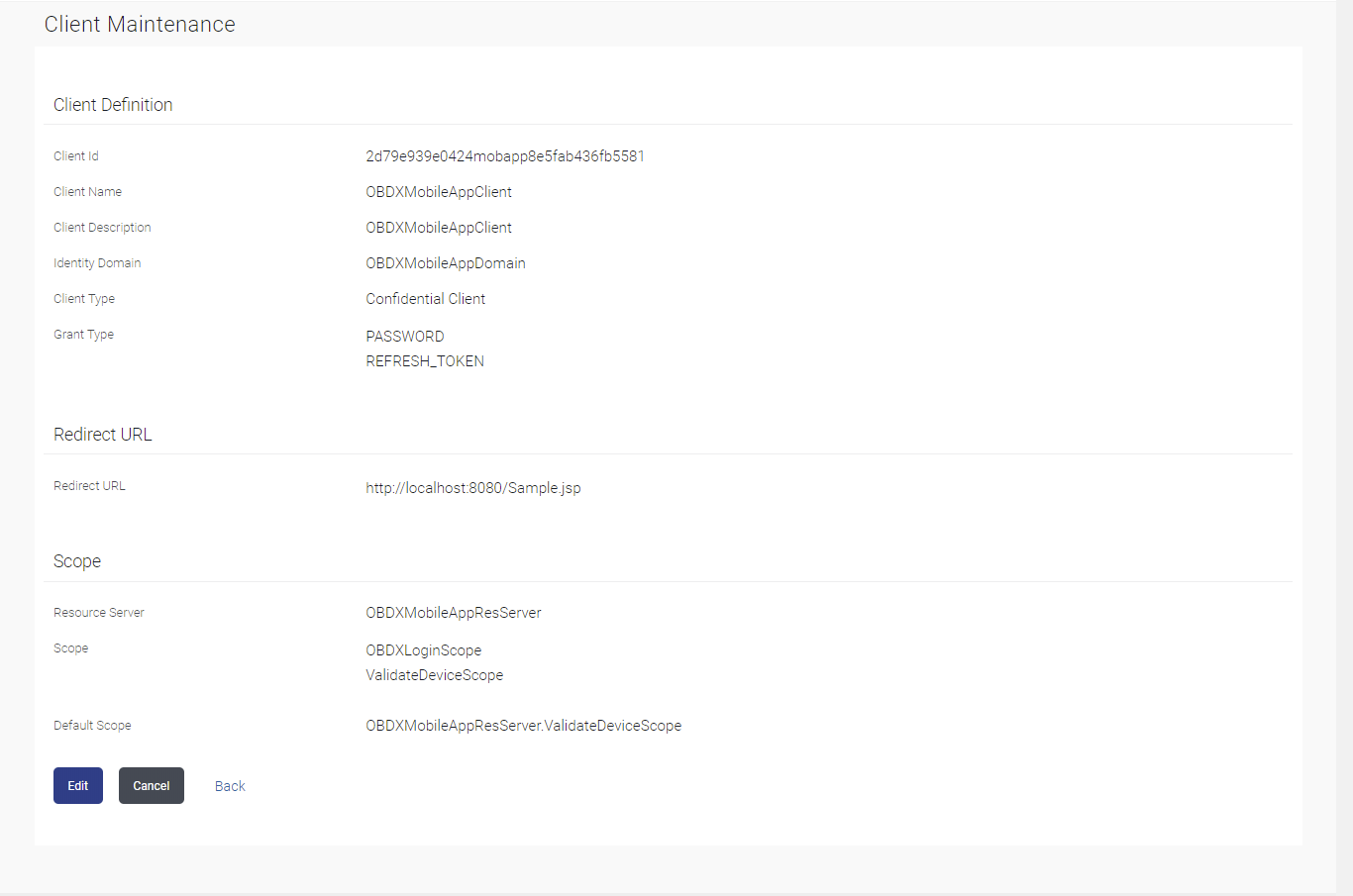

   Figure 53-13 Client Maintenance – View





   Description of "Figure 53-13 Client Maintenance – View"




   Note:

   The fields which are marked as Required are mandatory.

   For more information on fields, refer to the field description table.

   Table 53-8 Client Maintenance – View - Field Description

   Field Name	Description
   Client Definition	Information specified in below fields are related to client definition.
   Client ID	Displays the Client ID of the selected Client
   Client Name	Displays the Client Name of the selected client.
   Client Description	Displays the Client description of the selected client.
   Identity Domain	Displays the name of the Identity Domain to which client belongs.
   Grant Type	Displays the grant type for the selected client.
   Redirect URL	Information specified in below fields are related to redirect URL.
   Redirect URL	Displays the redirect page URLs for the selected client.
   Scope	Information specified in below fields are related to scope.
   Resource Server	Displays the name of the resource server to which the mapped scopes belong.
   Scope	Displays the scope name defined for the client.
   Default Scope	Displays the default scope defined for the client.

5. Perform anyone of the following actions:
   • Click Edit to update details of the client. User is directed to the Client Maintenance - Edit screen with values in editable form.
   • Click Cancel to cancel the transaction.
   • Click Back to navigate to previous screen.
