53.2.3 Resource Server Maintenance – Create

This topic describes the systematic instruction to Resource Server Maintenance – Createfunction. This function enables the System Administrator to create a resource server.

As part of Resource definition, the administrator can select the Identity Domain in which the resource server needs to be created and also define the scopes for the resource server.

To create resource server:

1. Navigate to the above path.
   The Resource Server Maintenance screen appears.
2. Click Create to create a new Identity Domain.
   The Resource Server Maintenance - Create screen appears.

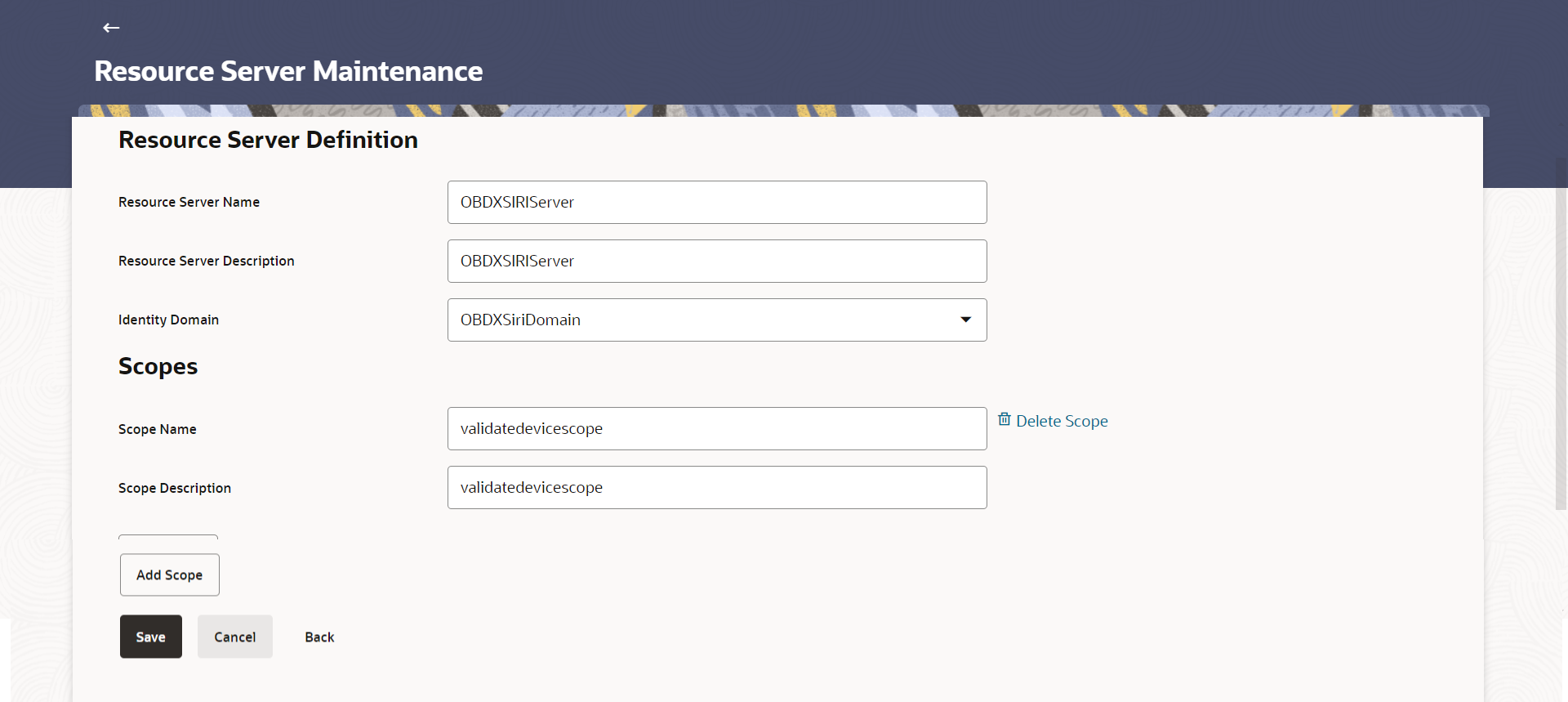

   Figure 53-10 Resource Server Maintenance – Create





   Description of "Figure 53-10 Resource Server Maintenance – Create"




   Note:

   The fields which are marked as Required are mandatory.

   For more information on fields, refer to the field description table.

   Table 53-6 Resource Server Maintenance – Create - Field Description

   Field Name	Description
   Resource Server Definition	Information specified in below fields are related to resource server definition.
   Resource Server Name	Specify the name of the resource server.
   Resource Server Description	Specify the resource server description.
   Identity Domain	Select an Identity Domain in which the Resource Server needs to be created.
   Scopes	Information specified in below fields are related to scopes.
   Scope Name	Specify the name of the scope to be created for a resource server
   Scope Description	Specify the description for the scope to be created for a resource server.

3. In the Resource Server Name field, enter name for resource server to be created.
4. In the Resource Server Description field, enter description for resource server to be created.
5. From the Identity Domain list, select the appropriate identity domain in which the resource server is to be created.
6. In the Scope Name field, enter the scope name for resource server.
7. In the Scope Description field, enter the description for the scope to be defined for resource server.
   • Click on icon to add new scope(s) for the resource server.
   • Click on icon against the already added scope to delete it.
8. Perform anyone of the following actions:
   • Click Save to save the changes.
   • Click Cancel to cancel the transaction.
   • Click Back to navigate to the previous screen.
9. Perform anyone of the following actions:
   • Click Save to save the changes.
   • Click Cancel to cancel the transaction.
   • Click Back to navigate to the previous screen.
10. Perform anyone of the following actions:
    • The Review screen appears. Verify the details, and click Confirm.
    • Click Cancel to cancel the transaction.
    • Click Back to navigate to the previous screen.

    The success message of resource server creation appears along with the reference number.
11. Click OK to complete the transaction.
