49.1 Transaction Blackout - Search

This topic describes the systematic instruction to Transaction Blackout - Search function.

This function allows the System Administrator to search for transactions under a particular user type and also to create a new Transaction blackout. The search is available on the basis of User type, Transaction Type, Transaction and date. The search result displays only those transactions under a user type for which the Transaction Blackout is maintained.

To search for transactions under a particular user type:

  1. Navigate to one of the above paths.
    The Transaction Blackout screen appears.
  2. Enter the search criteria.
  3. Perform anyone of the following actions:
    • Click Search, displays results based on search criteria.
    • Click Clear to reset the details.
    • Click Cancel to cancel the transaction.

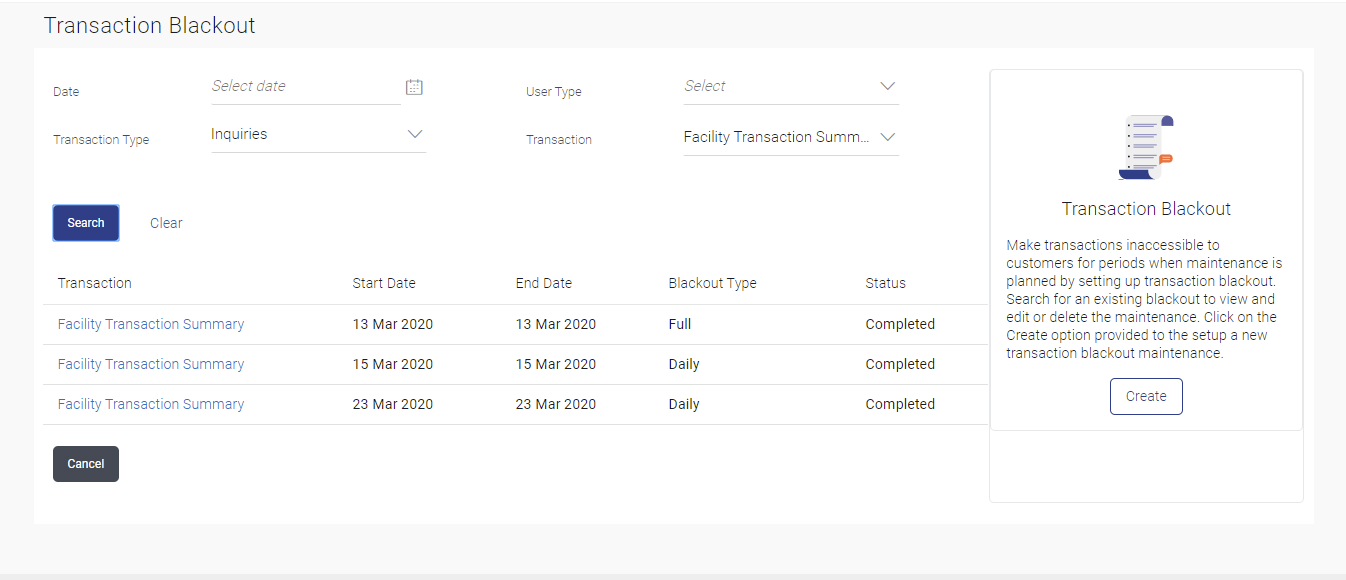

    Figure 49-2 Transaction Blackout- Search


    Description of Figure 49-2 follows
    Description of "Figure 49-2 Transaction Blackout- Search"

    Note:

    The fields which are marked as Required are mandatory.

    For more information on fields, refer to the field description table.

    Table 49-1 Transaction Blackout- Search - Field Description

    Field Name Description
    Date Date of the transaction blackout.
    User Type The type of user for whom the transaction is blacked out.

    The user types could be:

    • Corporate User
    • Administrator
    • Retail User
    • Prospect
    Transaction Type Transaction type to be blacked out.
    The options are:
    • Maintenances
    • Administration
    • Inquiries
    • Non-Financial
    • Financial
    Transaction The specific transaction, for which a blackout is maintained. Transactions list displayed here gets populated basis on the transaction type selected in the previous field.
    Search Result Information specified in below fields are related to search result.
    Transaction The specific transaction, for which a blackout is maintained
    Start Date Start date for the blackout.
    End Date End Date End date for the blackout.
    Blackout Type Type of black out.
    • Full: Indicates that it will be complete transaction blackout for the set date and time.
    • Daily: Indicates that it will be daily blackout for the set date and time.
    Status The transaction blackout status.
    The options are:
    • Ongoing: Indicates that blackout is ongoing.
    • Scheduled: Indicates that scheduled for some day in the future.
  4. View the table with search results. This table contains the start date and end date of the blackout maintenance. Transaction for which the blackout is applicable, the type of blackout (full or daily) and the status – whether the blackout is ongoing, or scheduled for some day in the future.
  5. Click on the field Transaction to view more details.

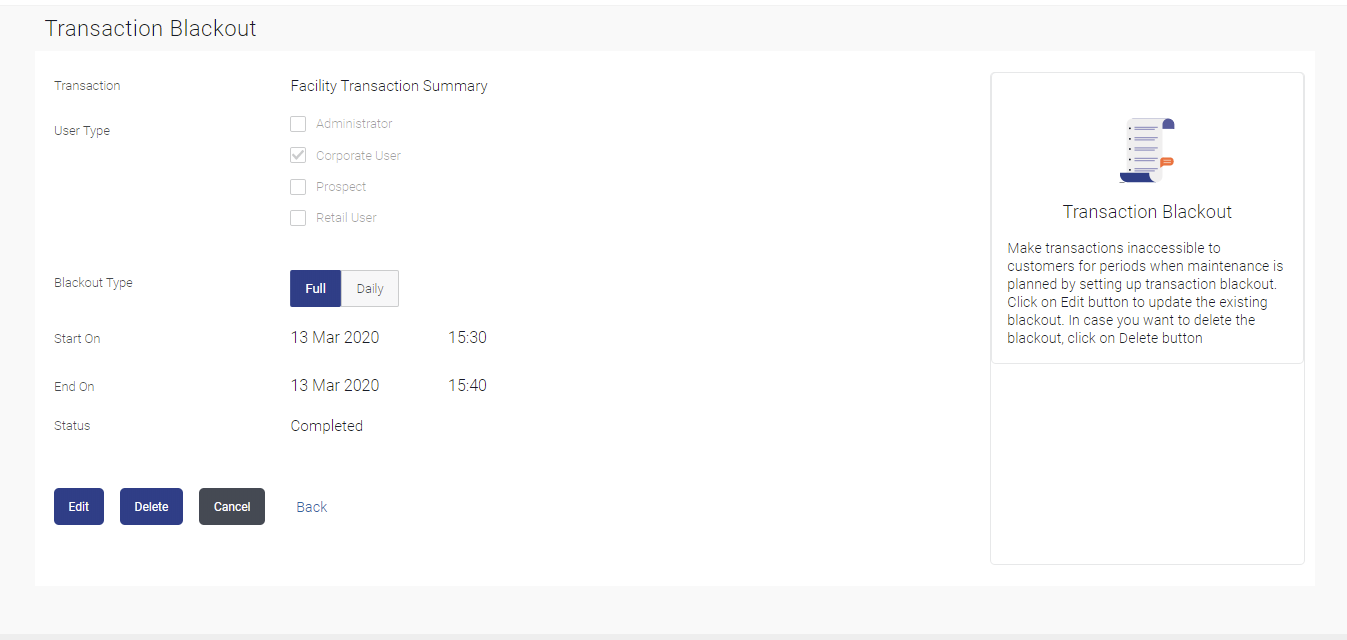

    Figure 49-3 Transaction Blackout- View details


    Transaction Blackout- View details

    Note:

    The fields which are marked as Required are mandatory.

    For more information on fields, refer to the field description table.

    Table 49-2 Transaction Blackout- View details - Field Description

    Field Name Description
    Transaction The specific transaction, for which a blackout is maintained.
    User Type The type of user for whom the transaction is blacked out.
    The user types could be:
    • Corporate User
    • Administrator
    • Retail User
    • Prospect
    Blackout Type Type of black out.
    • Full: Indicates that it will be complete transaction blackout for the set date and time.
    • Daily: Indicates that it will be daily blackout for the set date and time.
    Start On Start date and time for the blackout.

    This field will be displayed if the Blackout type is selected as Full.

    End On End date and time for the blackout.

    This field will be displayed if the Blackout type is selected as Full.

    Date Range Blackout start and end date.

    This field will be displayed if the Blackout type is selected as Daily.

    Time Range Blackout start and end time.

    This field will be displayed if the Blackout type is selected as Daily.

    Note:

    When blackout type is full - the following fields are displayed and enabled: Start On (Date and Time) End On and (Date and Time)

    When blackout type is Daily - the following fields are displayed and enabled - Date Range - From and To. Time Range - From and To. And, an option to Add Time
    Status The transaction blackout status.
    The options are:
    • Ongoing: Indicates that blackout is ongoing.
    • Scheduled: Indicates that scheduled for some day in the future.
  6. Perform anyone of the following actions:
    • Click Edit to edit the maintenance.
    • Click Delete to delete the maintenance.
    • Click Cancel to cancel the operation.
    • Click Back to navigate to the previous screen.

Parent topic: Transaction Blackout
