2.7 WebLogic configuration for OAuth

To enable OAuth support on WebLogic server follow below mentioned steps.

1. Login to WebLogic console with admin login and navigate to “Domain Structure” → “Deployments”.
2. Click on “com.ofss.digx.connector”

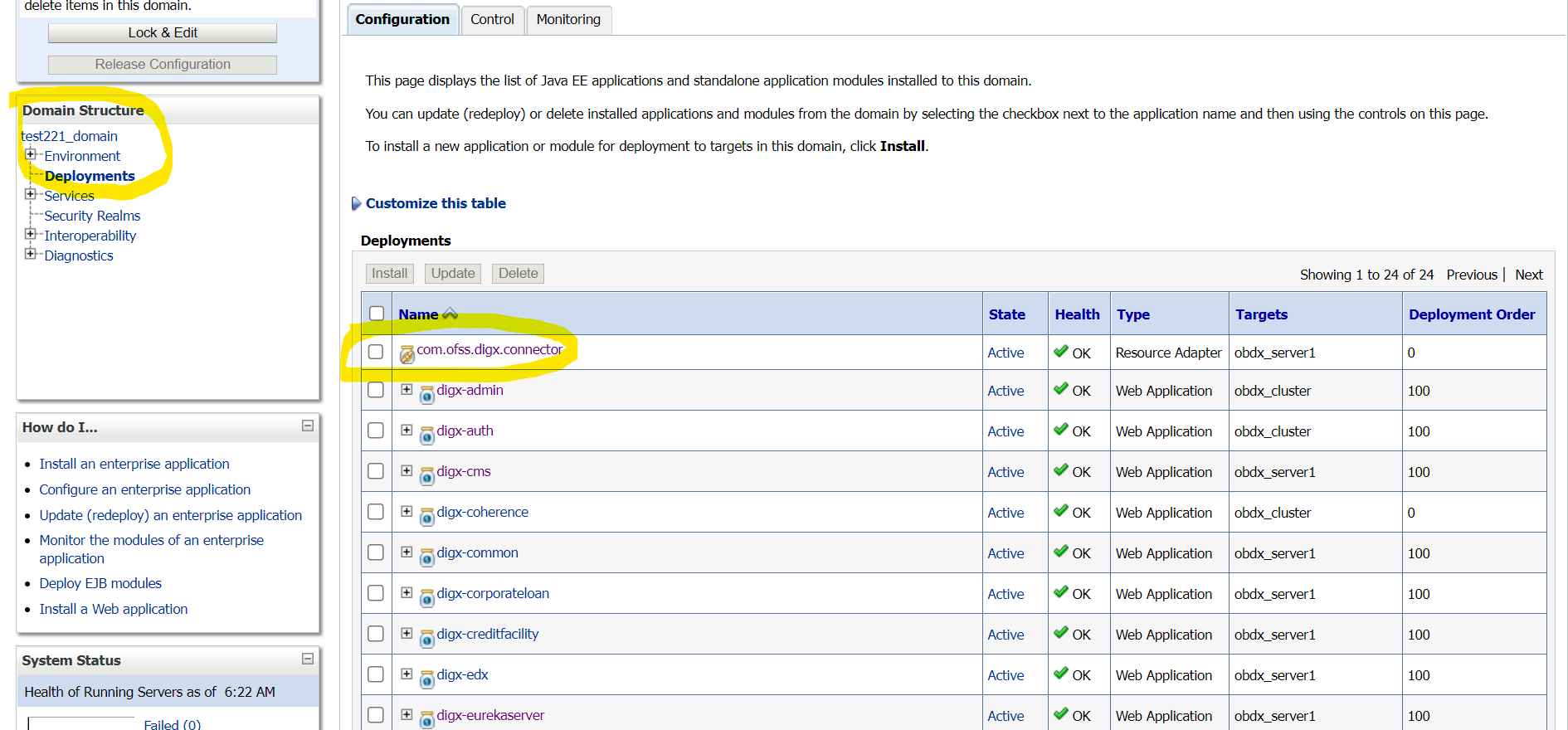

   Figure 2-31 Deployments








3. Navigate to “Configuration” → “Outbound Connection Pools” tab and click on New.

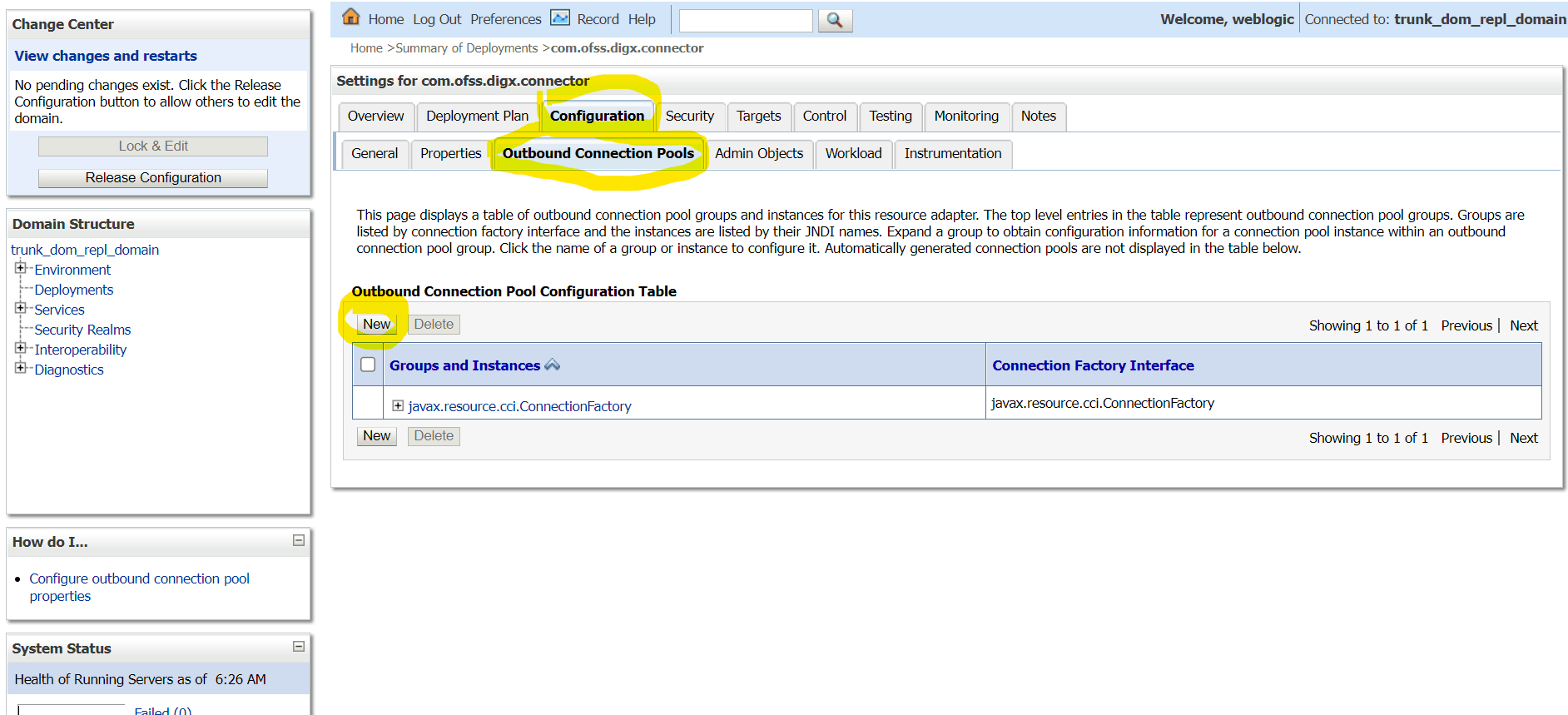

   Figure 2-32 Outbound Connection Pools Configuration








4. Select “javax.resource.cci.ConnectionFactory” and click on Next.

   Figure 2-33 Outbound Connection Group Configuration








5. Enter JNDI name as ra/DIGXConnectorSSOKEY and click on Finish.

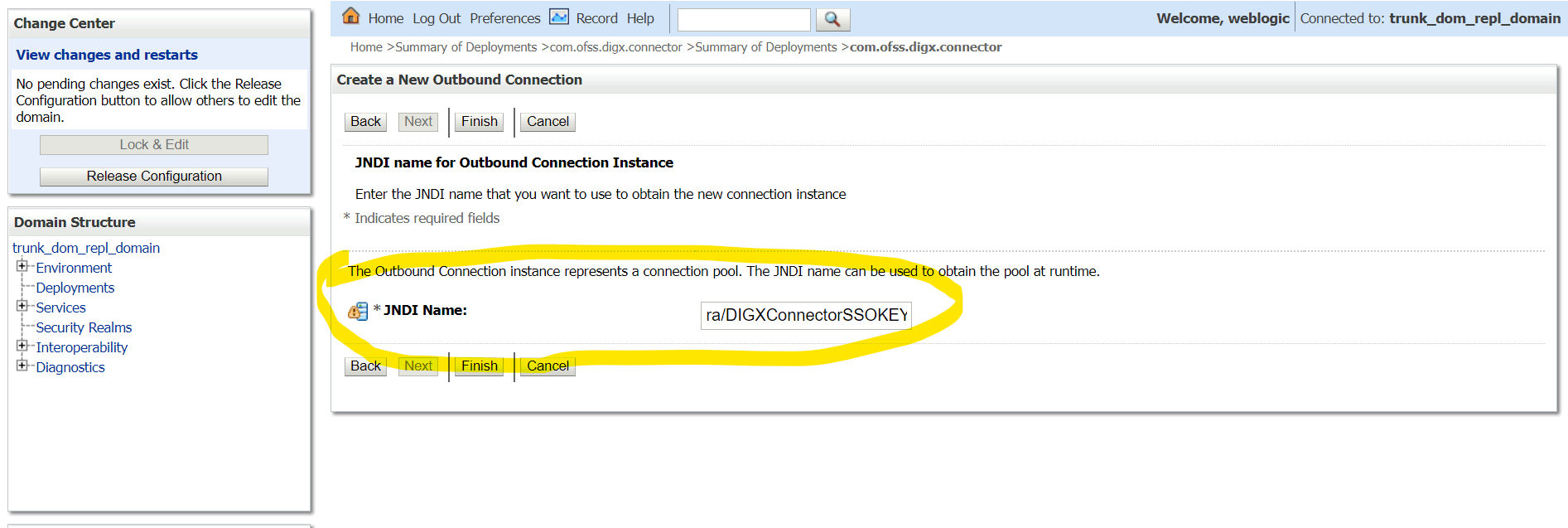

   Figure 2-34 JNDI Configuration for Outbound Connection








6. Again navigate to “Domain Structure” → “Deployments”.
7. Click on “com.ofss.digx.connector”.

   Figure 2-35 Deployments








8. Navigate to “Security” → “Outbound Credentials Mapping” tab and click on New.

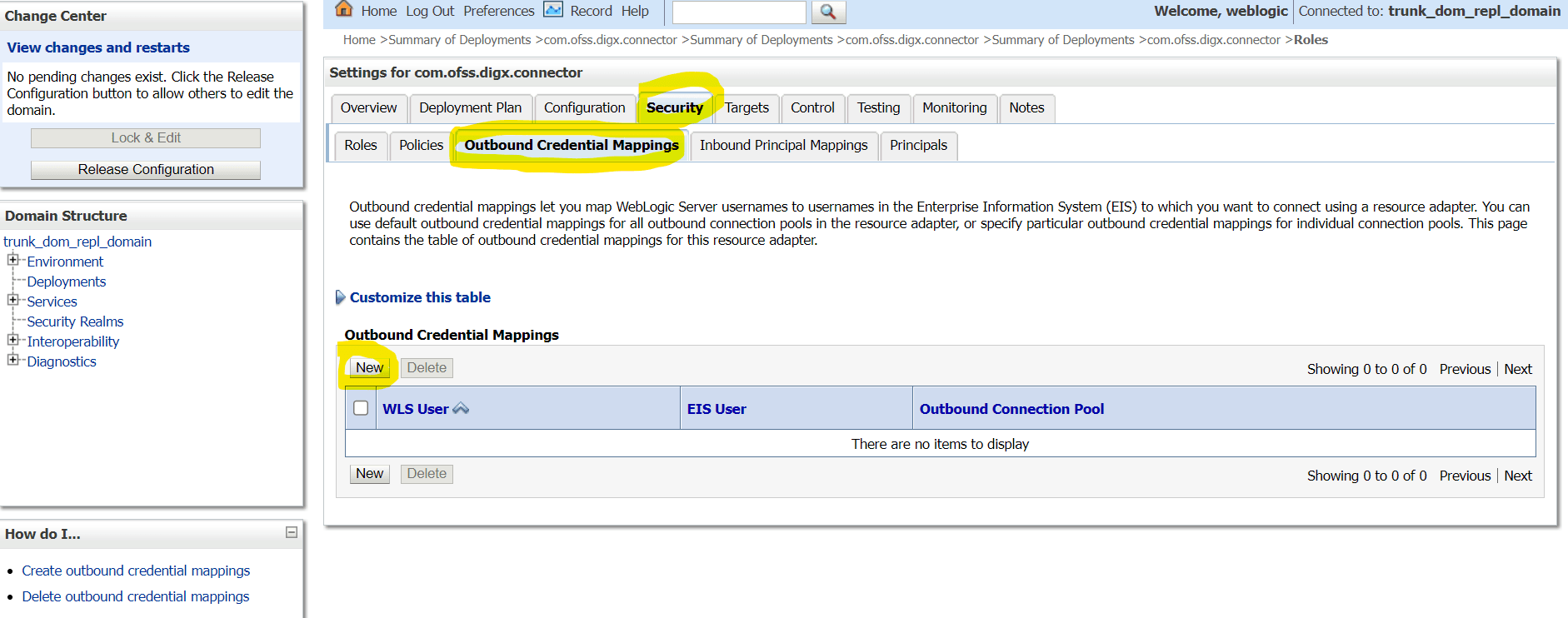

   Figure 2-36 Outbound Credentials Mappings




9. Select “ra/DIGXConnectorSSOKEY” by navigating using next button. Once selected as shown in below screenshot, click on Next.

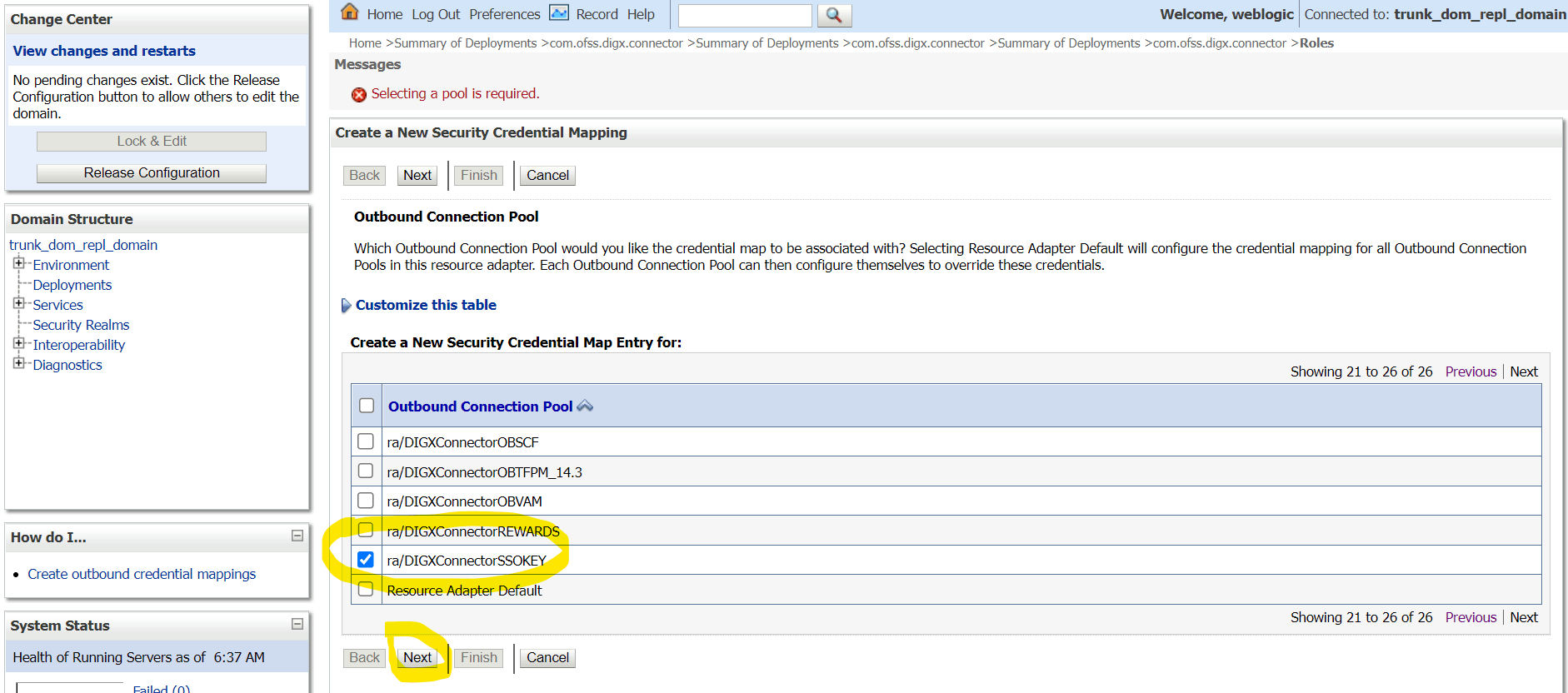

   Figure 2-37 Create New Security Credentials Mappings








10. Select “Default User” and click on Next.

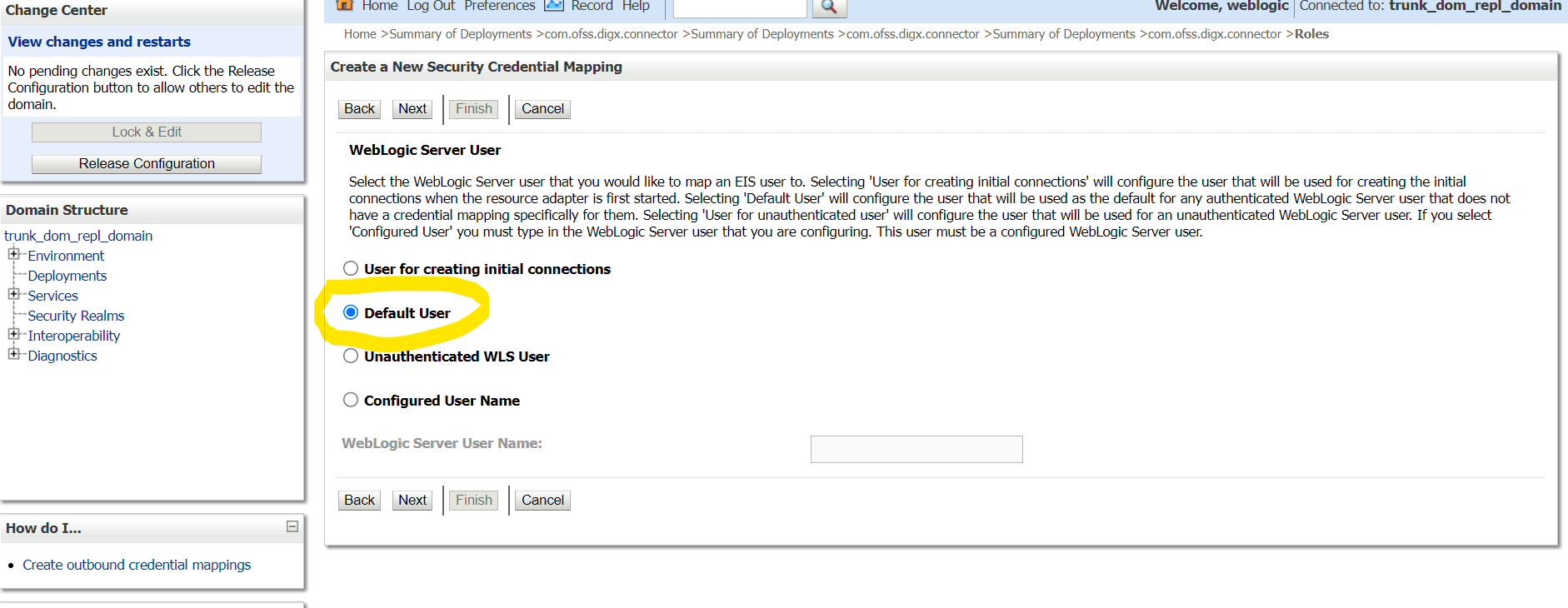

    Figure 2-38 Create New Security Credentials Mappings








11. Provide the below mentioned field values as given below.
    1. EIS User Name: - Client ID save in txt file generated from IDCS in section 3.5, step 6.
    2. EIS Password: - Client Secret save in txt file generated from IDCS in section 3.5, step 6.
    3. EIS User Name: - Client Secret save in txt file generated from IDCS section 3.5, step 6.

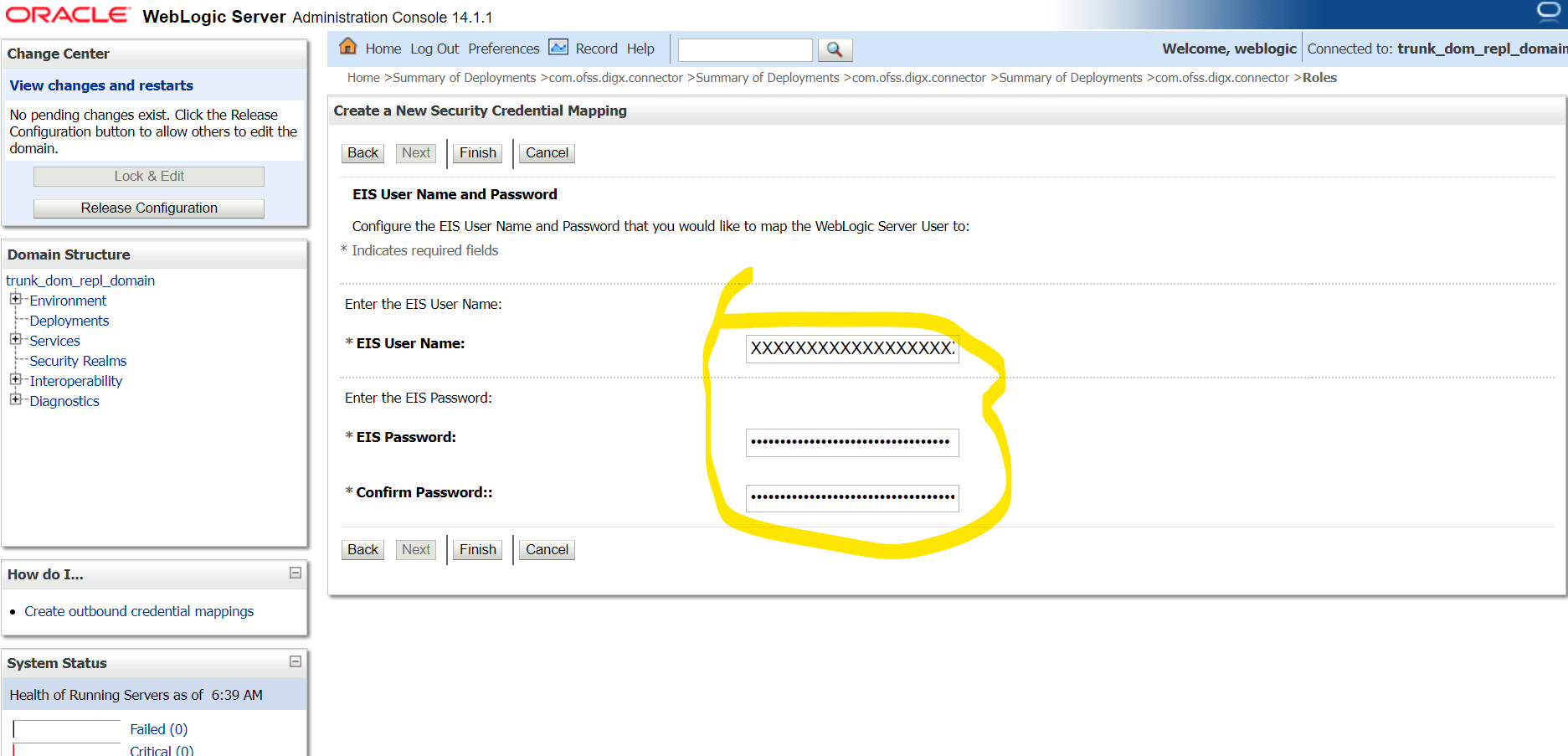

    Figure 2-39 Configure EIS UIS Username / Password








12. Click on Finish to save the configuration.
