20.11 Maintain Instrument Numbers
The Instrument Number Maintenance screen is used to maintain the instrument type for each branch.
To maintain instrument numbers:
- On the Homepage, from Teller mega menu, under
Branch Maintenance, click Instrument
Number Maintenance or specify Instrument Number
Maintenance in the search icon bar and select the screen.The Instrument Number Maintenance summary screen is displayed.
Figure 20-21 Instrument Number Maintenance (Summary)
- Click the icon.The Instrument Number Maintenance (New) screen is displayed.
- On the Instrument Number Maintenance screen, specify the
fields. For more information on fields, refer to the field description
table.
Note:

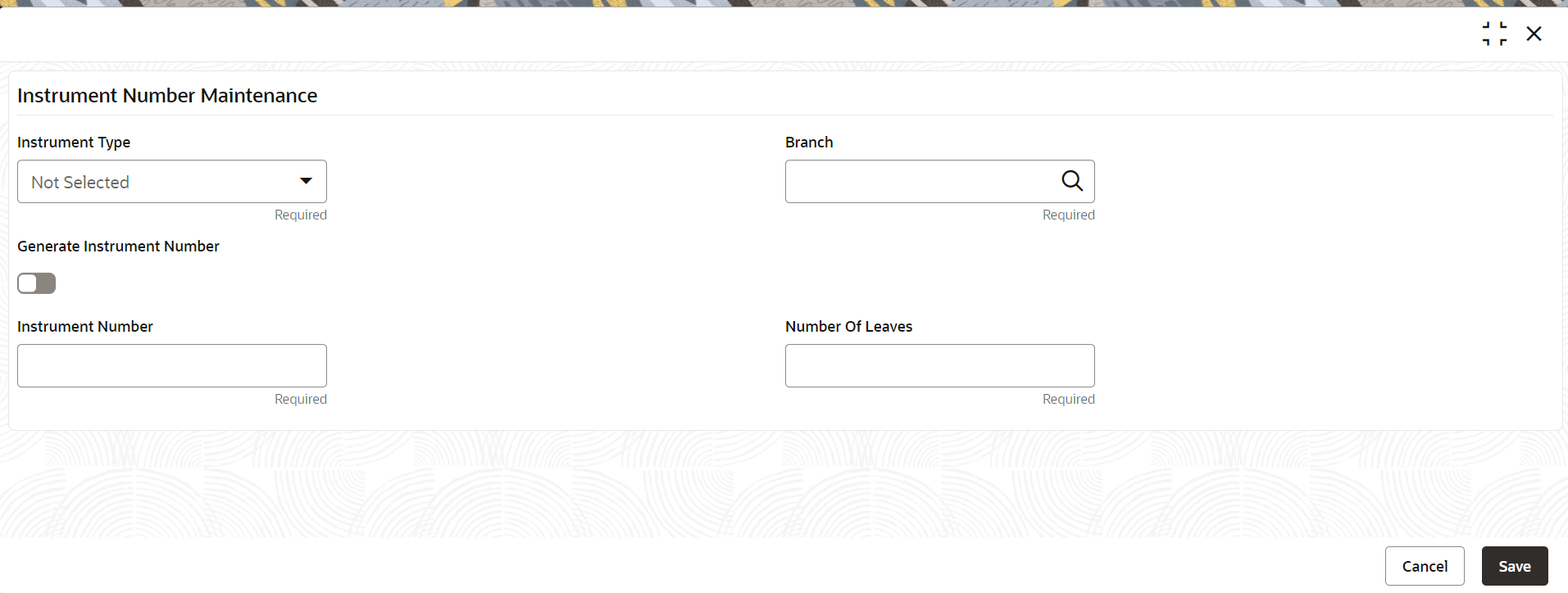

The fields marked as Required are mandatory.Figure 20-22 Instrument Number Maintenance (New)
Table 20-17 Instrument Number Maintenance - Field Description
Field Description Instrument Type
Specify the instrument type for which the instrument maintenance needs to be done.
Branch
Select the branch code from the list of values.
Generate Instrument Number
Specify Generate Instrument Number as Yes/No by selecting the radio-button.- If Yes, then Instrument number will be generated by OBBRN.
- If No, then Instrument number will be generated by OBPM.
Instrument Number
Specify the cheque number for which the instrument maintenance needs to be done.
Number of Leaves
Specify the number of leaves.
- Click Save.The summary view is displayed with the configured instrument number.
