1.2.1.3 Configure Relationship Pricing

The Relationship Pricing Integration for FLEXCUBE Universal Banking and Oracle Banking Branch is performed through REST. The CreateQueryPrice REST service is used to derive Relationship Pricing charge computation from the FLEXCUBE Universal Banking pricing engine.

Log in to Oracle Banking Branch Homepage. For information on how to log in, refer to Getting Started User Guide in the Oracle Banking Branch Documentation Library.

Oracle Banking Routing Hub is responsible for the handling of API calls between Oracle Banking Branch and external systems (FLEXCUBE Universal Banking in case of Relationship Pricing calls). The configuration templates for Oracle Banking Routing Hub are provided along with the product releases and need to be imported through the Service Consumers screen.

To configure relationship pricing:

1. On the Homepage, click Core Maintenance. Under Core Maintenance, click Routing Hub, and then select Service Consumers or specify Service Consumers in the search icon bar and select the screen.

   The Service Consumers screen is displayed.

   Figure 1-17 Service Consumers - Relationship Pricing





   Description of "Figure 1-17 Service Consumers - Relationship Pricing"



2. Click Import.
   The Import Service Consumer pop-up screen is displayed.
3. On the Import Service Consumer pop-up screen, click Select and upload the CMC_CHARGES.json file provided in the release.

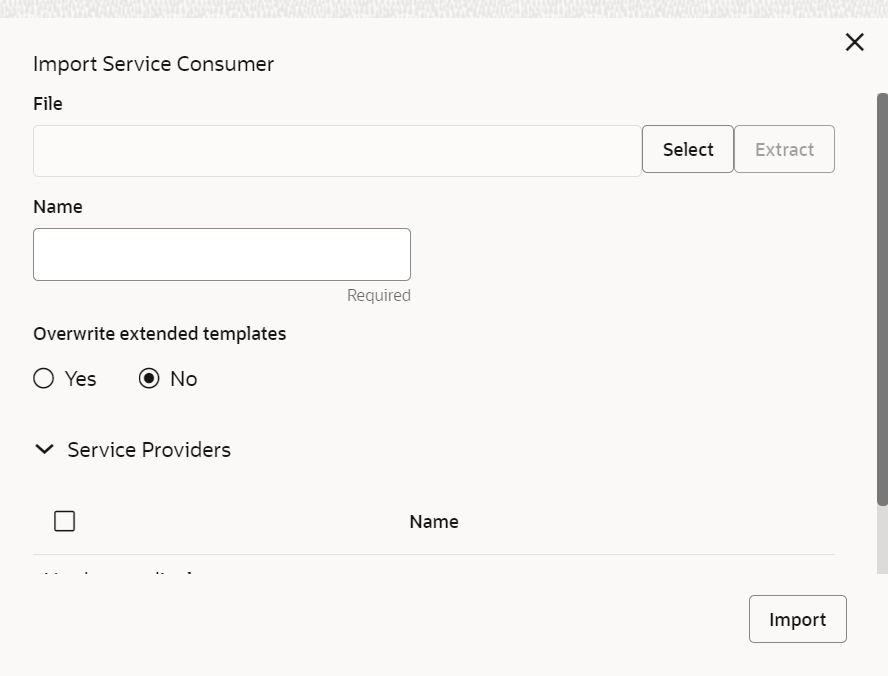

   Figure 1-18 Upload JSON file - Relationship Pricing





   Description of "Figure 1-18 Upload JSON file - Relationship Pricing"



4. Click Extract.

   Note:

   As an alternative method, CSTB_PARAM -GW_LOGUSER_CHECK can be maintained as N, if the gateway user is an Oracle Banking Branch user.
   The data is extracted successfully.
5. Select all the extracted service providers, and click Import.

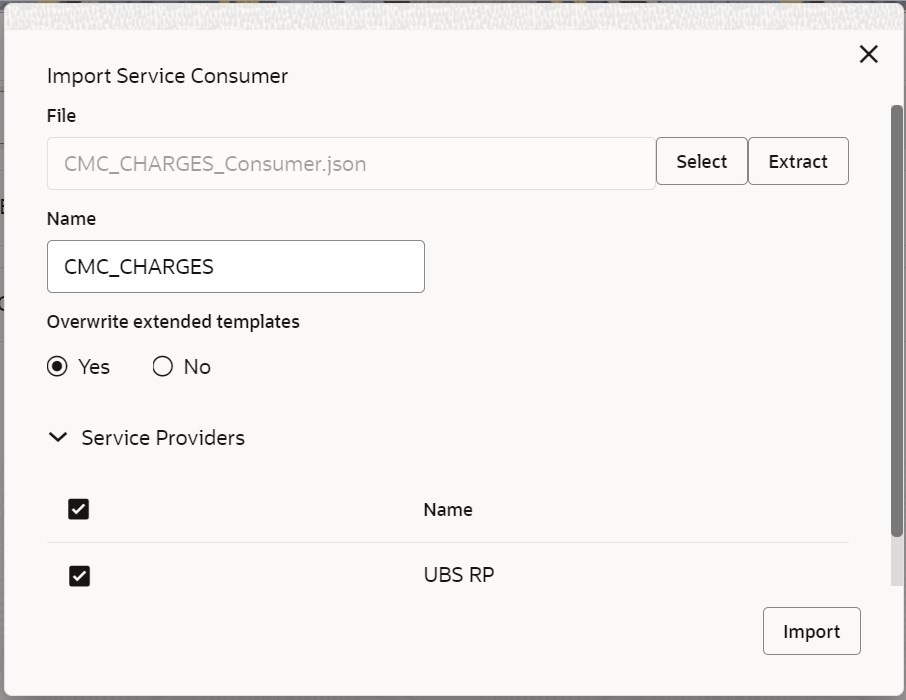

   Figure 1-19 Service Provider Selection - Relationship Pricing





   Description of "Figure 1-19 Service Provider Selection - Relationship Pricing"




   The service consumers are imported successfully. A sample screen after import operation is shown below.

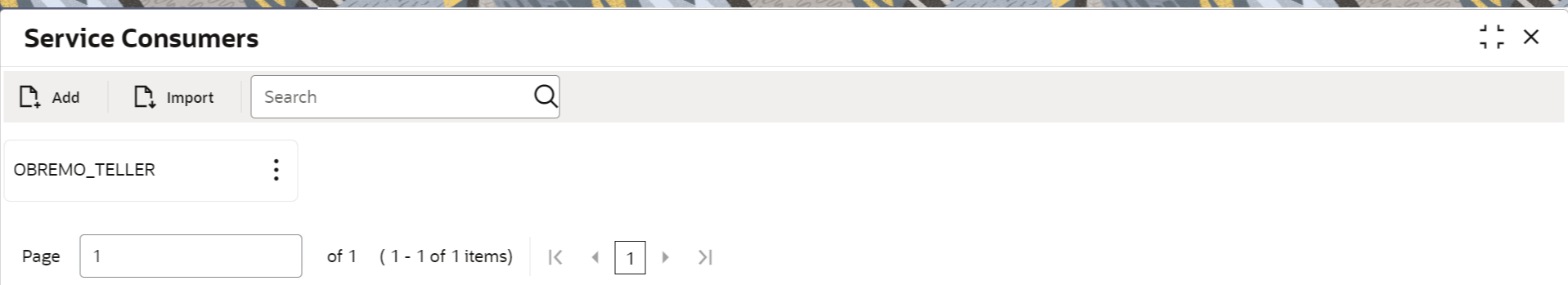

   Figure 1-20 Imported Service Consumers - Relationship Pricing





   Description of "Figure 1-20 Imported Service Consumers - Relationship Pricing"



6. Click on the individual service provider.

   The details of the imported service provider are displayed.

   Figure 1-21 View Service Provider - Relationship Pricing





   Description of "Figure 1-21 View Service Provider - Relationship Pricing"
