1.1 Prerequisites

Before you begin performing transactions, you need to log in to the Oracle Banking Branch Homepage.

For information on how to log in, refer to the Getting Started User Guide. You can also launch the Oracle Banking Branch application through the DDA.

To launch Oracle Banking Branch through DDA:

  1. Log in to the FLEXCUBE Universal Banking Homepage. For information on how to log in, refer to the Procedures User Guide in the FLEXCUBE Universal Banking Documentation Library.
    The FLEXCUBE Universal Banking Homepage is displayed.
  2. Specify CSDNGUIM in the top right corner text box, and click Next.
    The Next Gen UI Products Maintenance screen is displayed.

    Note:

    Make sure that the user has roles for the screen.

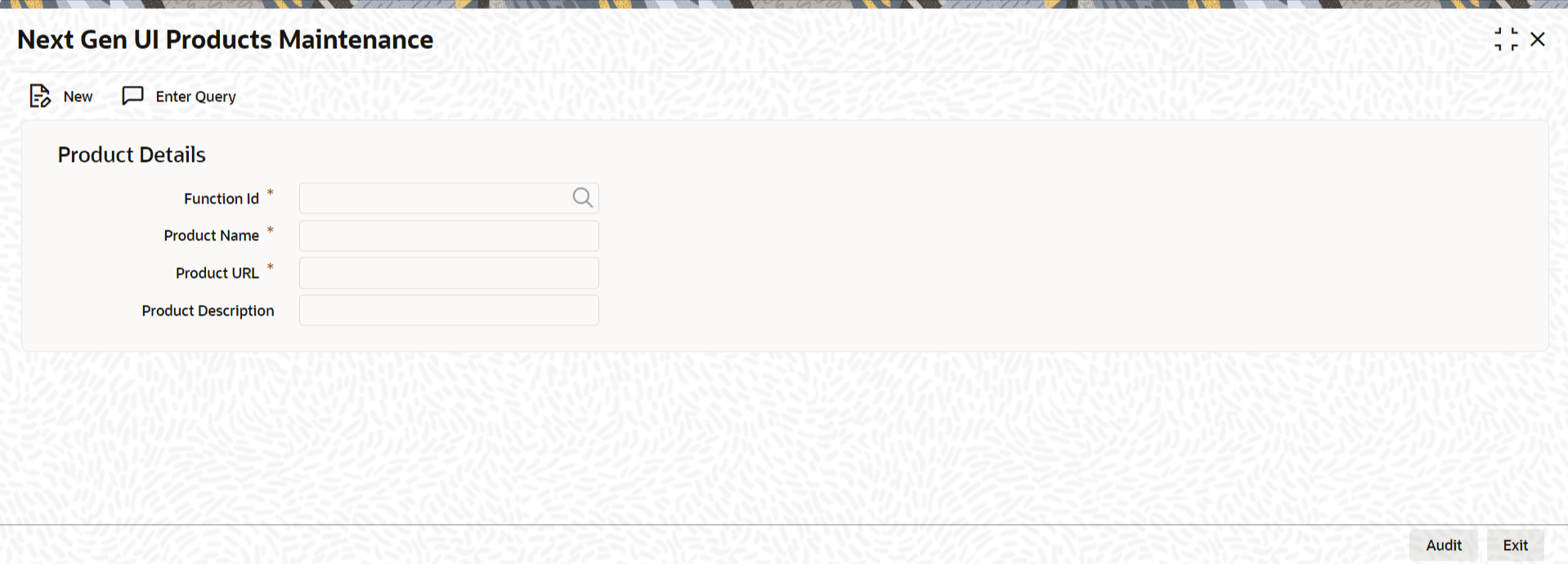

    Figure 1-1 Next Gen UI Products Maintenance


    Description of Figure 1-1 follows
    Description of "Figure 1-1 Next Gen UI Products Maintenance "

  3. On the Next Gen UI Products Maintenance screen, update the Next Generation UI Product URL.

    Note:

    For example, NEW TELLER can be used as the Function id, with the description as Teller Next Generation Product. It is released as Static Data and ensures the user roles are maintained for the same in FLEXCUBE Universal Banking.
  4. Once the roles are maintained in DDA, click Next Generation UI on the toolbar.
    The Next Gen UI Dashboard is displayed with the list of products.

    Figure 1-2 Next Gen UI Dashboard


    Description of Figure 1-2 follows
    Description of "Figure 1-2 Next Gen UI Dashboard"

  5. Click NEW TELLER.
    The Next Generation – Homepage is displayed.

    Note:

    Make sure that the same user id is maintained in DDA. In addition, make sure that the Next Generation UI is maintained and has the necessary roles. For example, if the user ID is Jones, the same needs to be present in the SMS systems of DDA and Next Generation UI.
  6. Do the Next Generation UI changes. The SECURITY_CONFIG table in PLATO_SECURITY schema must have the following entries:

    Table 1-2 Next Generation UI Changes

    Configuration Value

    INTEGRATION_ENABLED {id}

    true

    INTEGRATION_CALLBACK_URL {id}

    https://10.00.00.00:1010/FCJNeoWeb/ValidationService/FCNonceValidation/validate

    Note:

    The IP and port number of the DDA server must be updated.
    The Oracle Banking Branch Homepage is displayed.

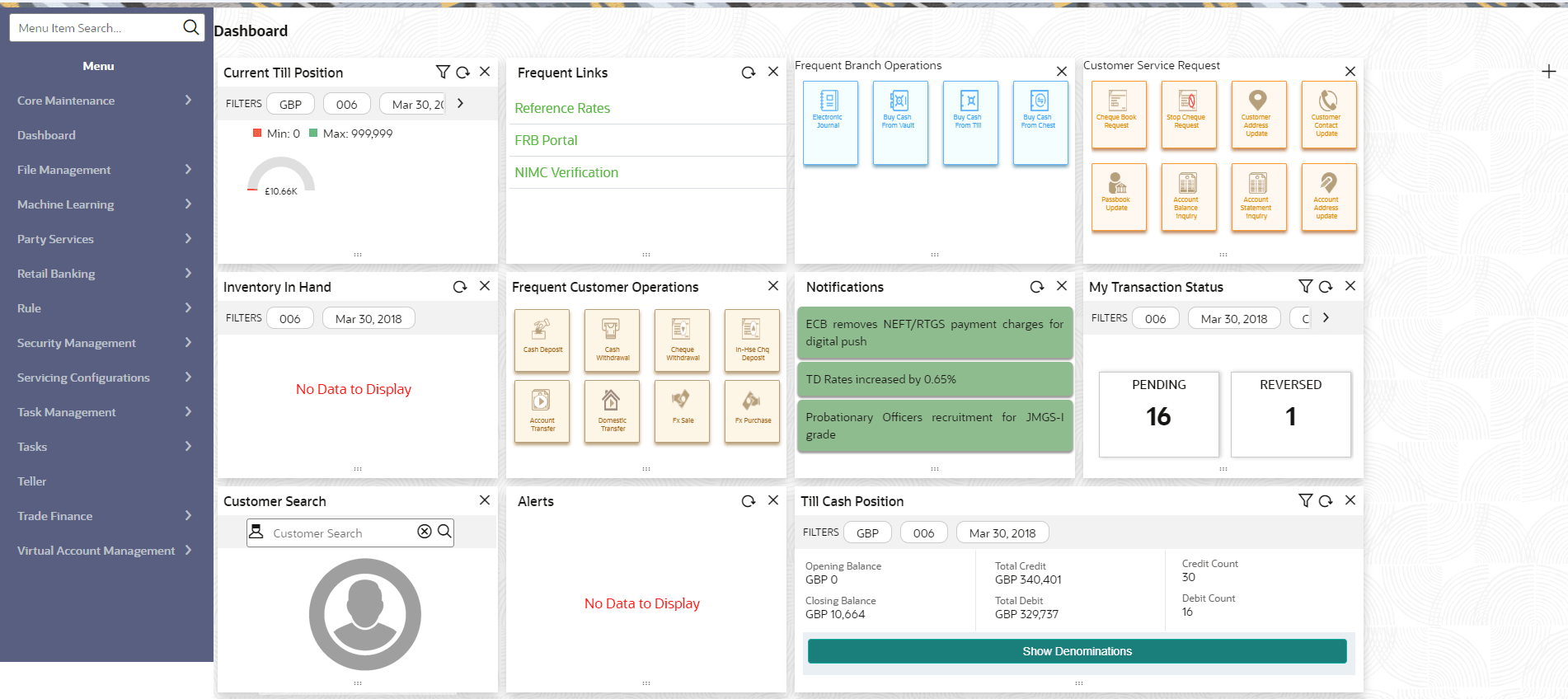

    Figure 1-3 Homepage


    Description of Figure 1-3 follows
    Description of "Figure 1-3 Homepage"

Parent topic: Overview of Oracle Banking Branch
