3.1 Upload Files

This topic describes the systematic instruction to upload a file for auto-processing the cashflow code/transaction data into system.

The Upload Files screen enables the user to upload files for auto-processing the cashflow code/transaction data into system. The uploaded files are not processed until it is approved. The file can contain data records of cashflow codes and cashflow transactions etc. The file format accepted by the system includes “.csv” files.

Table 3-1 Supported Files and Fields

File	Fields
Cashflow Code file	CASHFLOW_TYPE SOURCE_APPLICATION CODE CHANNEL DESCRIPTION CORPORATE_ID PARENT_ID
Cashflow Transaction file	EXTERNAL_REFERENCE_NO CASHFLOW_INDICATOR CORPORATE_ID CODE DESCRIPTION BANK_ACCOUNT_NUMBER VIRTUAL_ACCOUNT_NUMBER AMOUNT ACTUAL_AMOUNT CCY EXPECTED_DATE REVISED_EXPECTED_DATE ACTUAL_DATE CHANNEL APPLICATION_NAME PARTY_NAME PARTY_ID STATUS NARRATION T_UDF_TXT_1 T_UDF_TXT_2 T_UDF_TXT_3 T_UDF_TXT_4 T_UDF_TXT_5 T_UDF_TXT_6 T_UDF_TXT_7 T_UDF_TXT_8 T_UDF_TXT_9 T_UDF_TXT_10 CUSTOMER_REF_NO EXCLUDE_RECON CORPORATE_REF_NO SOURCE DUMMY_BIC_CODE DUMMY_ACC_NO.

Specify User ID and Password, and login to Home screen.

1. On Home screen, click File Management. Under File Management, click File Upload.
   The File Upload screen displays.

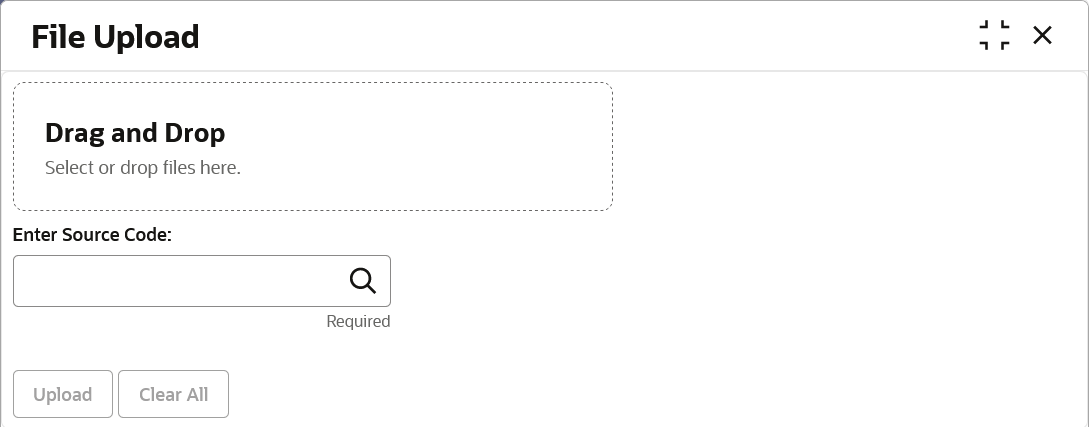

   Figure 3-1 File Upload





   Description of "Figure 3-1 File Upload"



2. Drag and drop the file to be uploaded in the highlighted box. or, Click inside the highlighted box to select the file to be uploaded.
3. In the Enter Source Code field, specify the source code of the application to associate the file records to.
4. Click Upload to upload the records from the file. Once the file is uploaded, it cannot be deleted.
   A message appears stating that the file has been uploaded successfully.
