2.2.2 External Notification Queue

To capture details of external notification queue screen

Specify the User ID and Password, and login to Homepage.

1. On the homepage, type PMDEXTNT and click next arrow.
   The External Notification Queue Detailed screen is displayed.

   Note:

   The fields which are marked in asterisk red are mandatory fields.

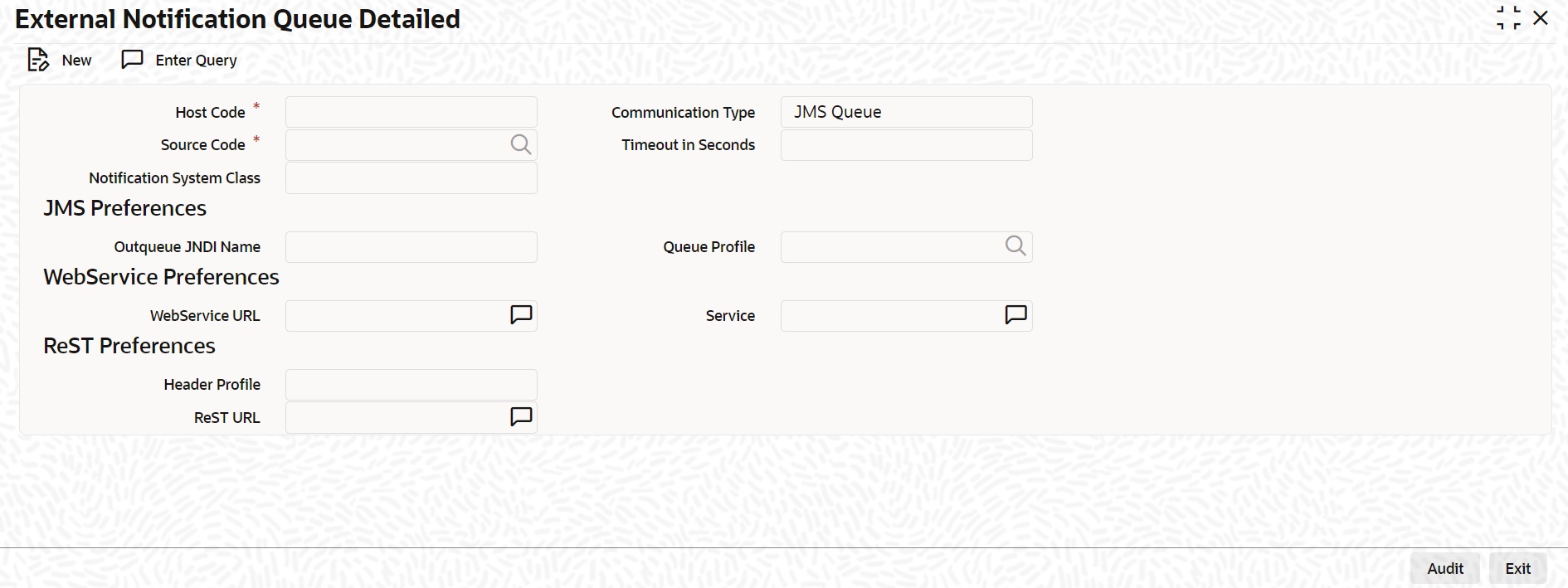

   Figure 2-7 External Notification Queue





   Description of "Figure 2-7 External Notification Queue"



2. You can enter below details in this tab. For information on fields, refer to the field description table.

   Note:

   Ensure you maintain an active record with all the required fields in External Notification Queue screen.

   Table 2-6 External Notification Queue

   Field	Description
   Host and Source Code	Specify the source code as INTBANKING. The host code gets defaulted based on source code. The gateway external system setup to be done for a source code INTBANKING.
   Communication Type	Select the communication type as Web Service.
   Notification System Class	Select the notification system Class as OFCL.
   WebService URL	For a given Host Code and Source Code combination, a WebService URL need to be maintained with the OL Service (FCUBSOLService) to get a notification call from OBPM to OBCL.
   Service	Specify the webservice as FCUBSOLService.
