1.2.5.2 ECA System Mapping

Specify the User ID and Password, and login to Homepage.

1. On the homepage, type PMDECAMT and click next arrow.
   The External Credit Approval System Detailed screen is displayed.

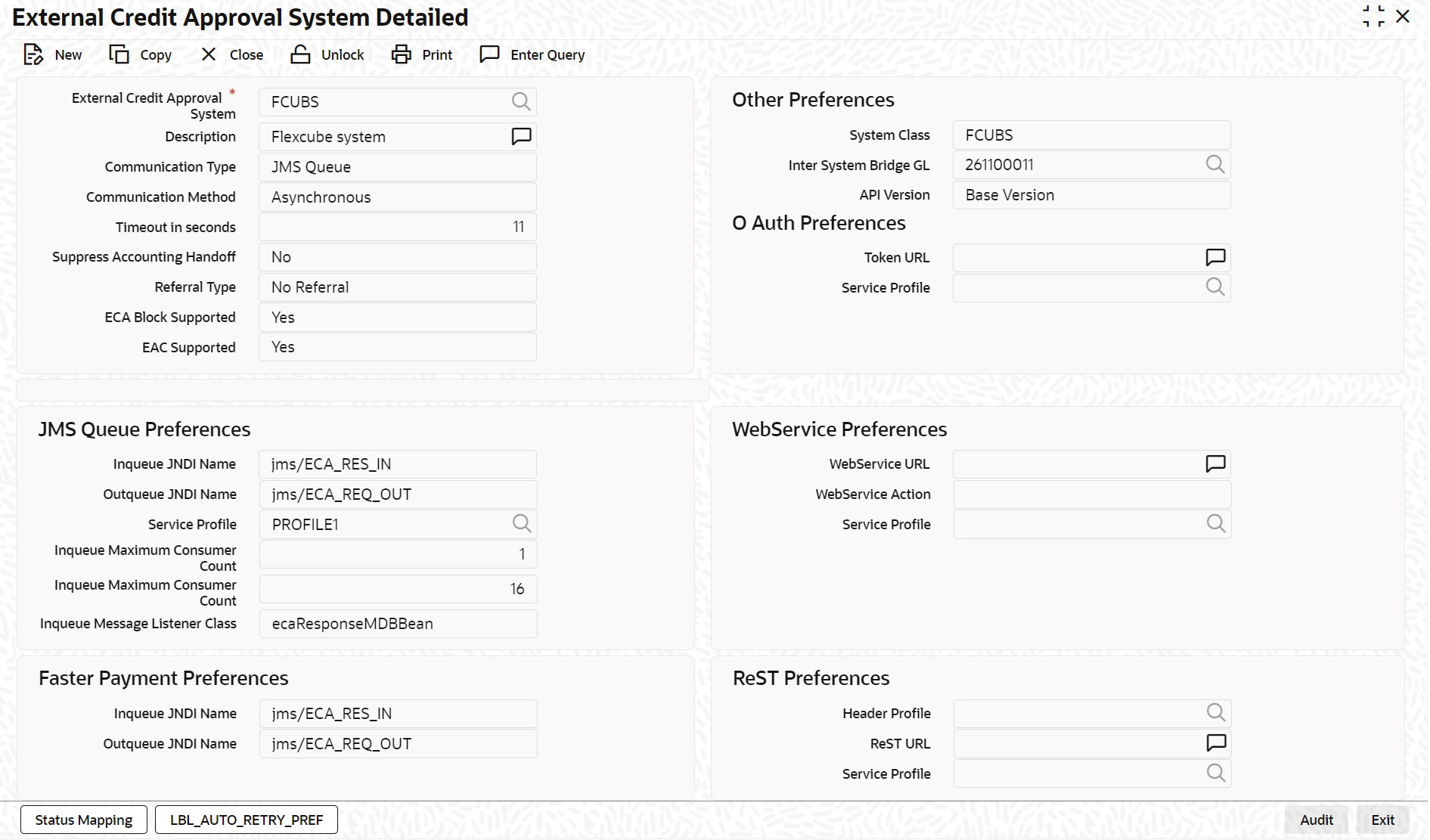

   Figure 1-11 External Credit Approval System Detailed





   Description of "Figure 1-11 External Credit Approval System Detailed"



2. You can enter below details in this tab. For information on fields, refer to the field description table.

   Table 1-8 External Credit Approval System Detailed

   Field	Description
   Inqueue JNDI Name	Specify the inqueue JNDI name as MDB_QUEUE_RESPONSE.
   Outqueue JNDI Name	Specify the outqueue JNDI name as MDB_QUEUE.
   Q Profile	Q Profile need to be maintained as per the MDB Queue created on the App Server. Q Profile need to be with an IP Address where the JMS Queue has been created. The OBPM system posts the ECA request to DDA system through these MDB queues. For more information about ECA System maintenance, refer to the Oracle Banking Payments Core User Guide.

   In External Credit Approval System Detailed screen, map the created ECA System.
