1.1.3 Host Parameter Maintenance

To capture details of host parameter screen

Specify the User ID and Password, and login to Homepage.

1. On the homepage, type PIDHSTMT and click next arrow.
   The Host Parameter screen is displayed.

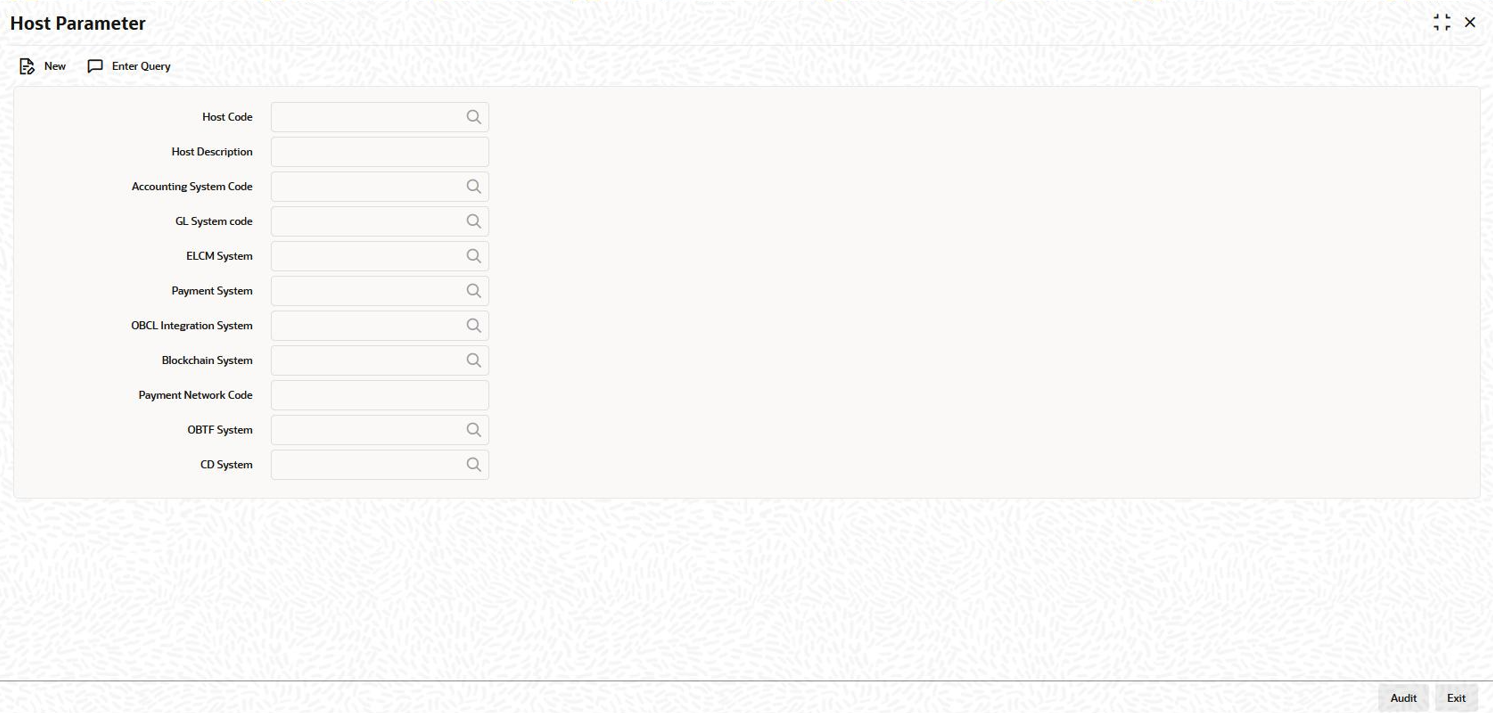

   Figure 1-3 Host Parameter





   Description of "Figure 1-3 Host Parameter"



2. You can enter below details in this tab. For information on fields, refer to the field description table.

   Note:

   • In OBCL, ensure you maintain host parameter with an active record with all the required fields.
   • OBCL Integration System is for UBS integration for 360 and trade integration. Payment System is for OBPM integration with INTBANKING need to be selected.

   Table 1-2 Host Parameter

   Field	Description
   Host Code	Specify the host code.
   Host Description	Specify the brief description for the host.
   Accounting System Code	Specify the accounting system code. For example, OLINTSYS
   Payment System	Specify the payment system. For example, INTBANKING
   ELCM System	Specify the ELCM system. For example, OLELCM
   OBCL Integration System	Specify the external system. For example, OLINTSYS, for integration with UBS system.
   Block Chain System	Specify the Block Chain System. For example OLBLKCN.
   Payment Network Code	Specify the Network through which OBPM to send the outbound message, for loan disbursement. For example, SWIFT.
