5.2.2 Flow of control through Hook Packages

This topic provides an overview of Flow of control through Hook Packages.

The flow of control through the Hook Packages for a particular stage is as explained in the below example:

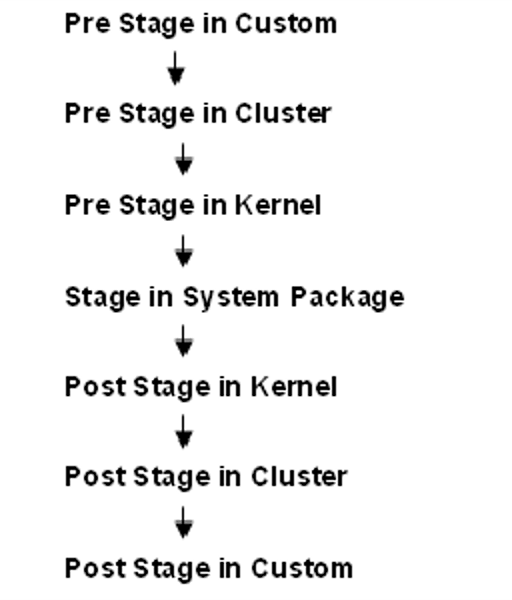

Figure 5-1 Flow of control through Hook Packages

Description of "Figure 5-1 Flow of control through Hook Packages"

Example: For Fn_check_mandatory, flow will be as:

STPKS_ STDCIFD_MAIN.Fn_Check_Mandatory

STPKS_ STDCIFD_CUSTOM.Fn_Pre_Check_Mandatory

STPKS_ STDCIFD_CLUSTER.Fn_Pre_Check_Mandatory

STPKS_ STDCIFD_KERNEL.Fn_Pre_Check_Mandatory

STPKS_ STDCIFD_MAIN.Fn_Sys_Check_Mandatory

STPKS_ STDCIFD_KERNEL.Fn_Check_Mandatory

STPKS_ STDCIFD_CLUSTER.Fn_Check_Mandatory

STPKS_ STDCIFD_CUSTOM.Fn_Check_Mandatory
