6.3 Deal Structure - Facilities

Detailed information about the Facilities tile in Deal Structure Data segment.

In this tab, the facilities added in Initiation and Enrichment stages are displayed.

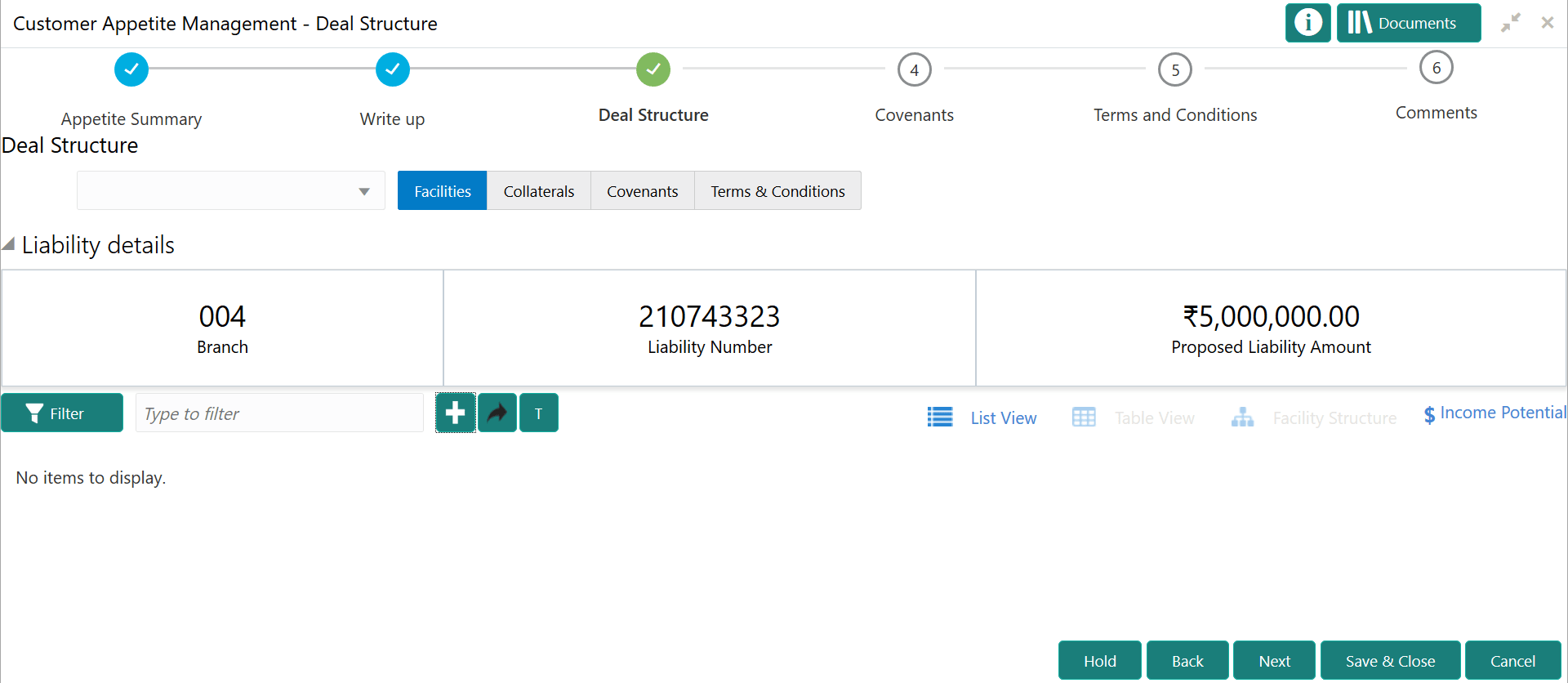

Figure 6-3 Deal Structure - Facilities

Add, Edit and Delete Options for Deal Structure writeup

Note:

In this chapter, only information to set limit for the facility is provided. Refer Enrichment - Funding Requirement for more information.
  1. Click the hamburger icon in the facility record and select Edit Facility.
    The Facility Details window is displayed.

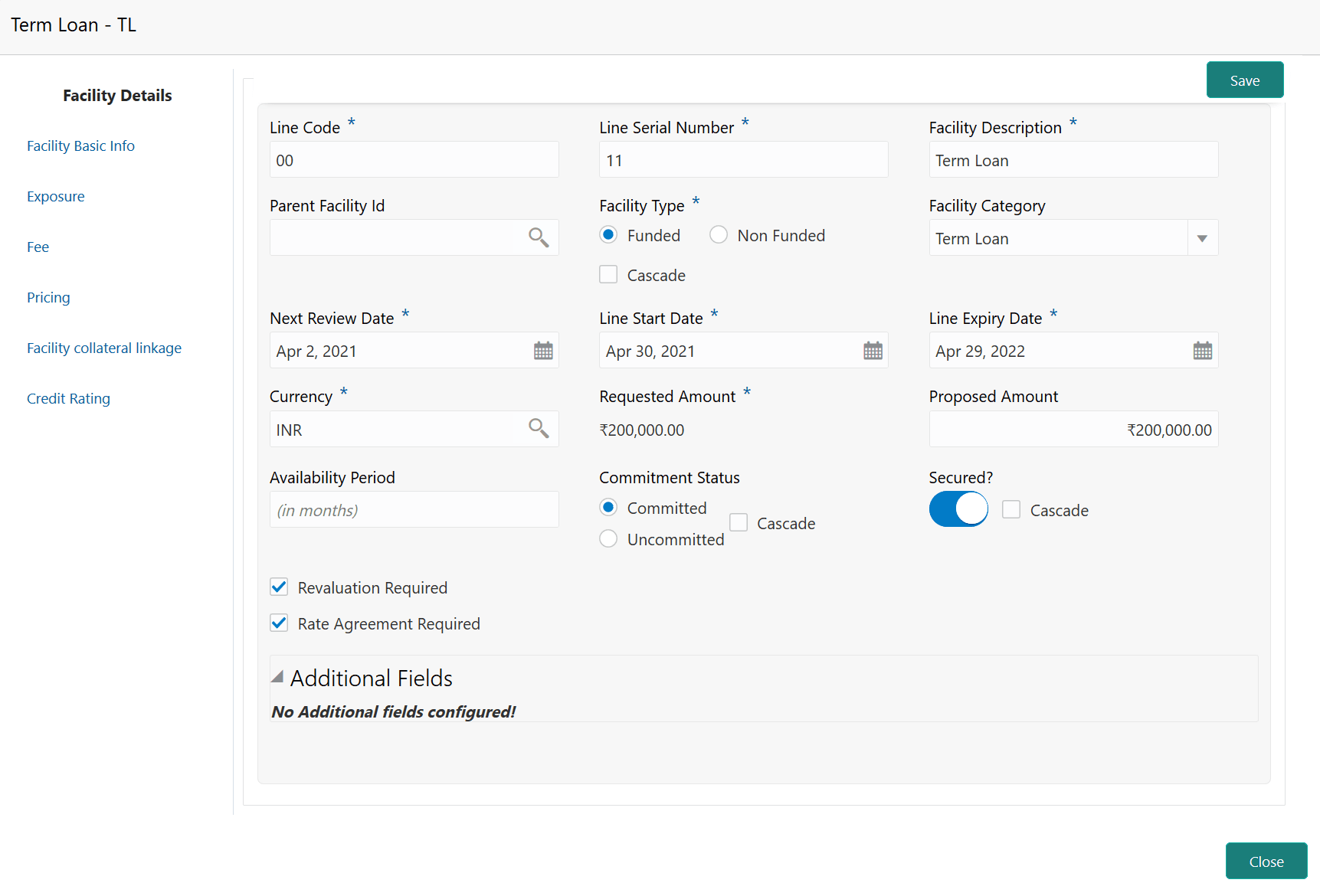

    Figure 6-4 Deal Structure - Facility Details

    Facility Details such as Line code and Facility type
  2. Specify the Proposed Amount.
  3. Click Save. Facility detail is updated with the proposed amount.
  4. To exit the Facility Details window, click Close.
