6.1.2 OBRH (Standalone) of OBDX setup

This topic provides information on OBRH (Standalone) of OBDX setup.

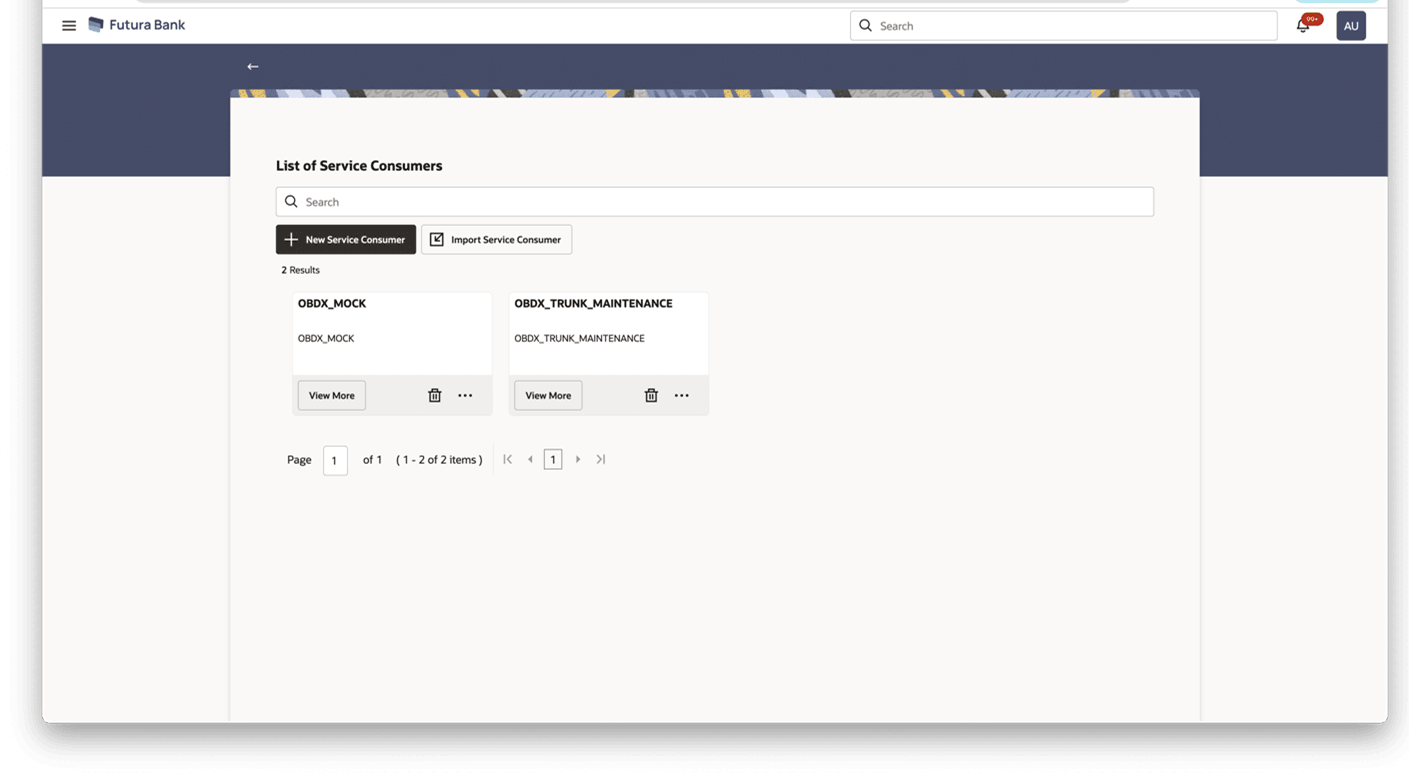

Figure 6-1 OBRH (Standalone) of OBDX setup

Description of "Figure 6-1 OBRH (Standalone) of OBDX setup"

Following properties needs to be updated from the screen for OBRH (Standalone) of OBDX setup from the following location:

System Configuration > Entity Specific > Framework

Table 6-2 System Configuration > Entity Specific > Framework

Property Id	Property_Value ( Default_value)
OBRH Token Endpoint Authentication Type	APIKEY
OBRH Service URL For Service Calls	cmc-obrh-services/route/dispatch
OBRH Service Context URL	http://${OBRH_HOST_IP}:${OBRH_HOST_PORT} (Replace this with actual host and port)
Application connection host	OBDX_HOST_IP
Application connection port	OBDX_HOST_PORT
OBRH Service Consumer Name	OBDX_TRUNK

Note:

In case of OBRH/OBDX cluster, a load balancer must be deployed and that host/port must be configured in above queries

OHS Configurations

In obdx.conf from installer. Check proxy pass values and note that order is maintained. /digx must be below /digx-cmc, /digx-sms. If using location/locationMatch tag for digx, remove proxy pass for /digx and move /digx-cmc, /digx-sms above location/locationMatch tag.

Note:

Cluster is not required for /digx-cmc, /digx-sms as they are used for OBRH/ML maintenances only.

In below entries replace host and ports as –

17004 – OBRH MS

17005 – OHS port

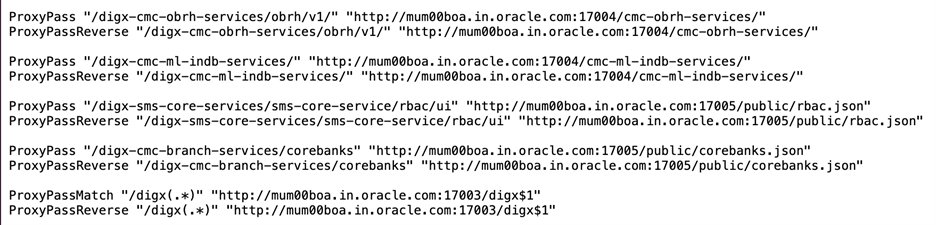

Figure 6-2 Example 1. With proxy pass

Description of "Figure 6-2 Example 1. With proxy pass"

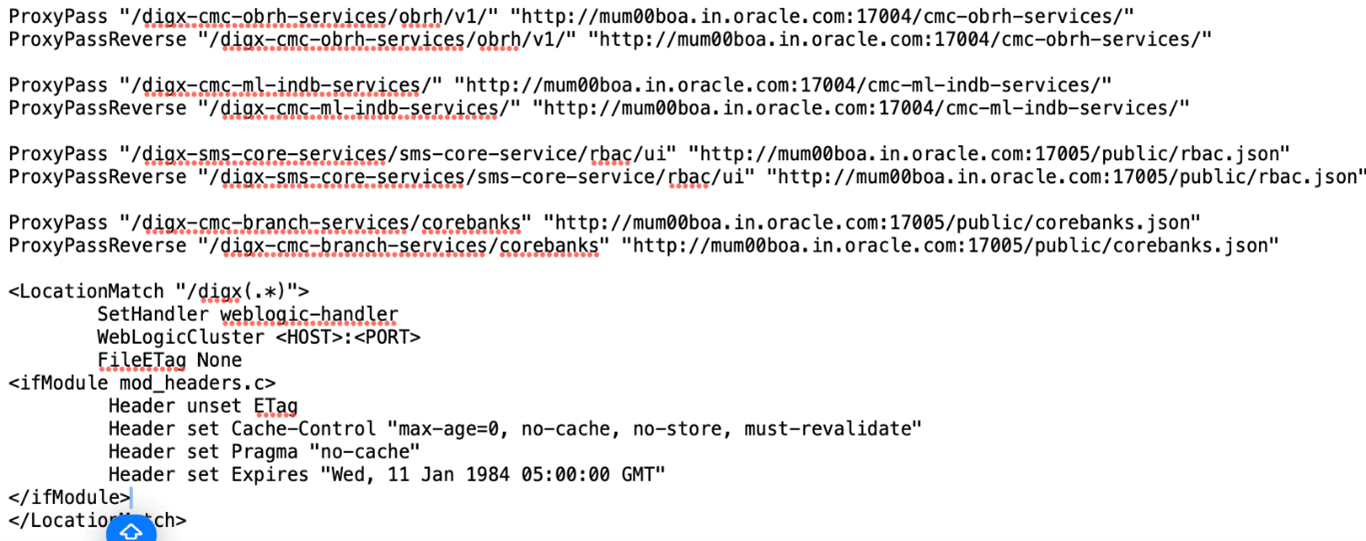

Figure 6-3 Example 2. With location for OBDX

Description of "Figure 6-3 Example 2. With location for OBDX"
