2.2.2 Transaction Format View

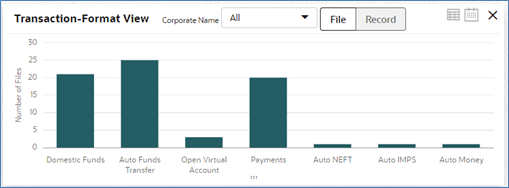

This widget displays the transaction wise break up, in the form of a bar chart or a table, for the files received during the day. A sample snapshot of a day:
Figure 2-5 Transaction Format View
The following details are displayed in the widget:
- Hover the bar to view the file count
- Click on the bar to drilldown to view the format view
- Filter the files based on Corporate
- Filter the data either for File or for Record

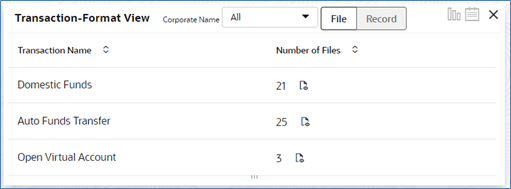

- Click on Table view icon, to view the total number of the files received for each transaction
- Click on the File eye view to view the Inquiry details of the files
The columns in the widget are as below:
Table 2-2 Columns in the widget
| Column | Description |
|---|---|
| Transaction Name | Displays the name of the transaction |
| Number of Files | Displays the count of files available under that transaction and the file eye view to redirect to the File Inquiry screen |

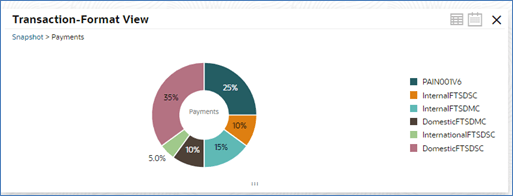

Each status can be further drilled down to know the number of files received for each format. This is represented in the form of a pie chart.
Figure 2-6 Transaction Format View
The following details are displayed in the widget:
- Hover the pie to view the file count

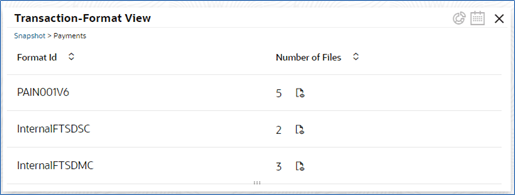

- Click on Table view icon, to view the total number of the files received for each format
- Click on the File eye view to view the Inquiry details of the files
Table 2-3 Columns in the widget
| Column | Description |
|---|---|
| Format Id | Displays the format id |
| Number of Files | Displays the count of files available under that transaction and the file eye view to redirect to the File Inquiry screen |

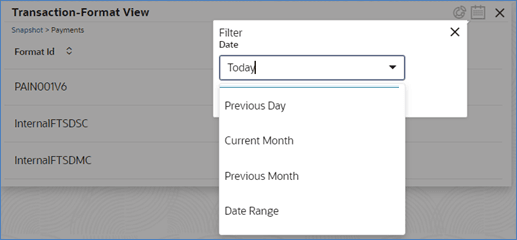

Date filter can be used to search the data based on the required date. Possible values include Today, Previous day, Current month, Previous month and manual date range.
