5 Functionality Demonstration

This topic explains the functionality of the view changes report.

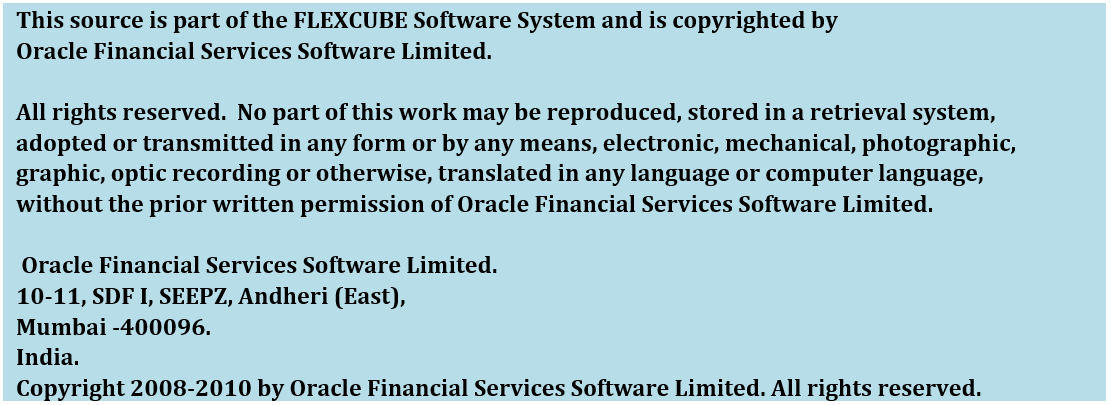

On the STDCUSAC.xls file, click the Copyright Clause tab to view the copyright details.

Figure 5-1 Copyright Clause

Description of "Figure 5-1 Copyright Clause"

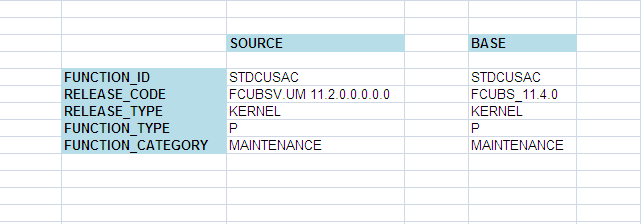

The comparison of STDCUSAC (FCUBS_11.2.0) and STDCUSAC (FCUBS_11.4.0) is displayed in the Header tab.

Figure 5-2 Header

Description of "Figure 5-2 Header"

On the PREFERENCES tab, the change report compares two RADXML's and forms one Dom with the nodes and displays the difference between two RADXML’s with old and new values.

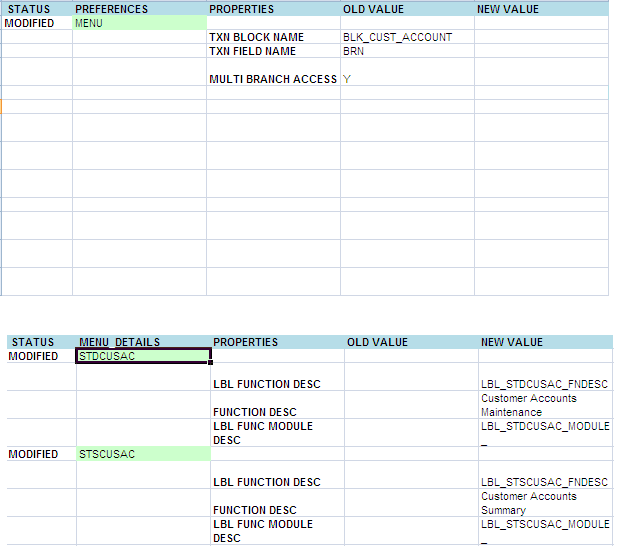

Figure 5-3 Preferences

Description of "Figure 5-3 Preferences"

The change report compares the two function id's and paints the excel sheet for the preferences node of the compared RADXML. Here in preferences, the status node is displayed as Modified and the modified node is Preferences. The property of the modified preferences node is TXN BLOCK NAME. The Old value is BLK_CUST_ACCOUNT and new value is null for the STDCUSAC (FCUBS_11.3.0) and STDCUSAC (FCUBS_11.4.0) has block_cust_account as TXN BLOCK.

Preferences will show the difference in both versions of the releases. The nodes representing here are:

• PREFERENCES
• MENU_DETAILS

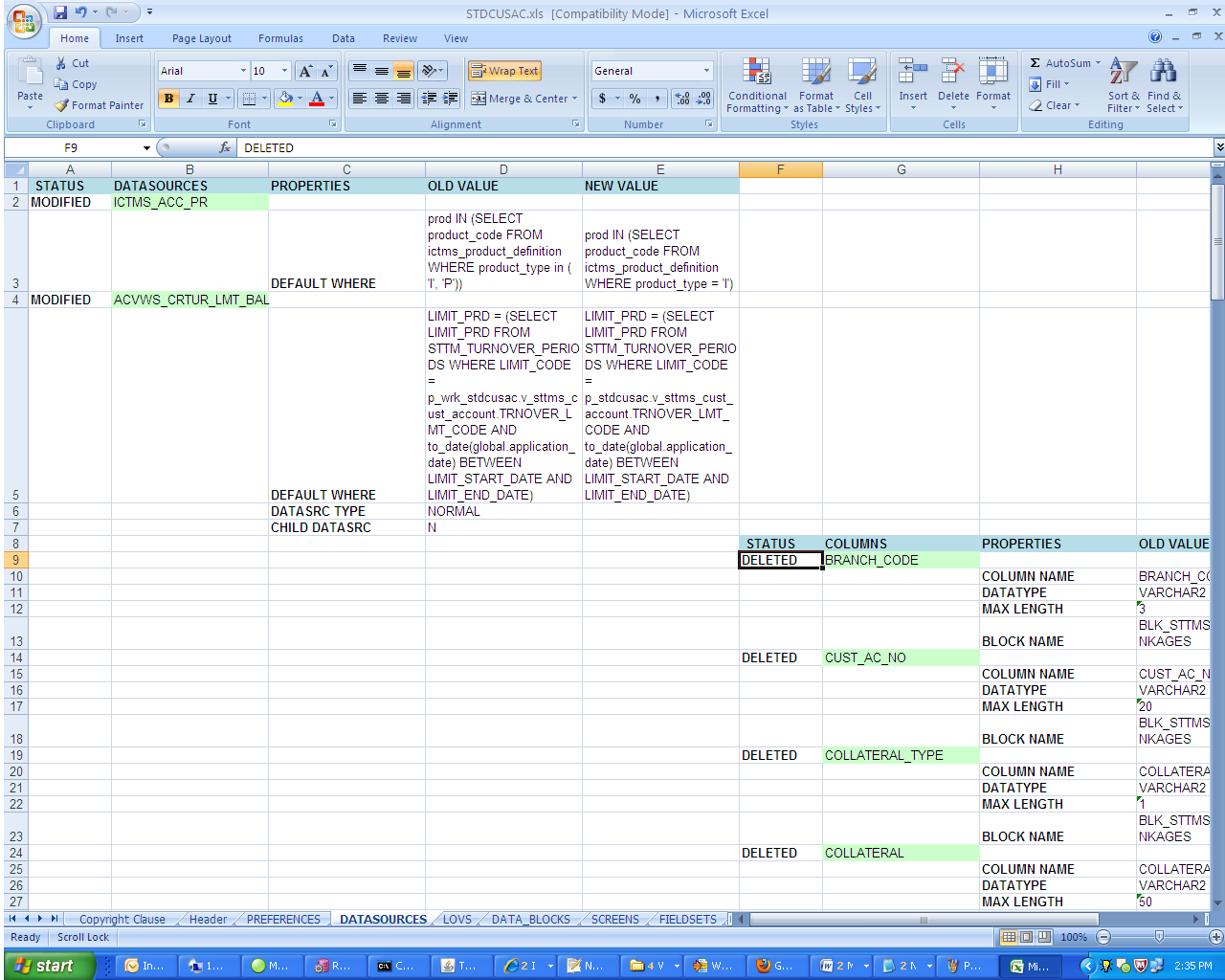

On the DATASOURCES tab, change report compares the two function ids and paints the excel sheet for the Data Sources node of the compared RADXML. Data Sources will show the difference in both versions of the releases.

Figure 5-4 DATASOURCES

Description of "Figure 5-4 DATASOURCES"

The nodes representing on the DATASOURCES tab are:

• DATASOURCES
• COLUMNS
