2.2.1 ELCM with SYNC Mode

This topic describes about the ELCM with SYNC Mode in oracle banking ELCM Integration with OBCL/ FCUBS Process.

  • For this implementation, a new adapter layer is created in FCUBS /OBCL system to interact with ELCM through web services.
  • During contract creation, if a limit request is created, FCUBS/OBCL logs the request to the service log tables.
  • Adapter layer prepares the request based on the service log entry and invokes the web service of ELCM for further processing.
  • Response received from the external limit system is shown during the transaction itself.

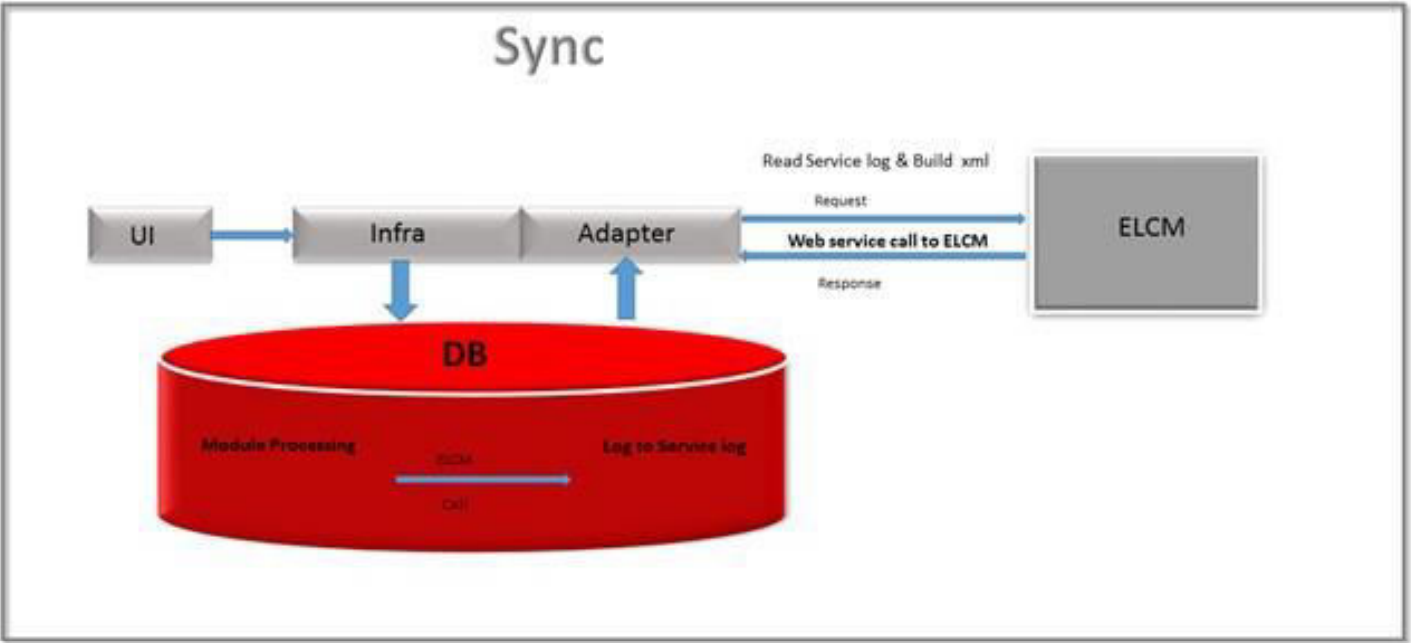

Figure 2-1 SYNC Mode


Description of Figure 2-1 follows
Description of "Figure 2-1 SYNC Mode"
