5 Examples

This topic provides different examples for customizing the screens.

Example 1

Requirement: Hide a Field in the screen

Below screenshots shows how Screen Customizer can be used for this purpose.

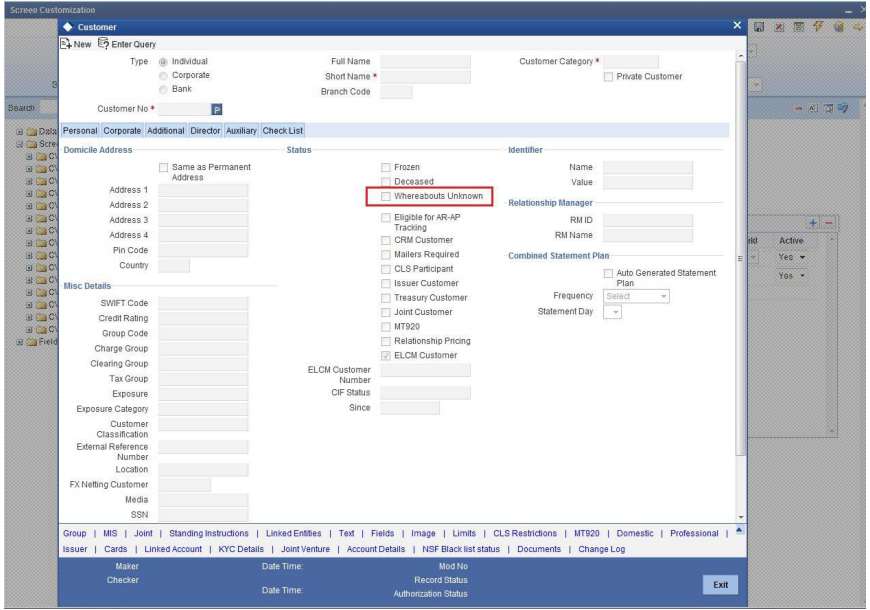

Figure 5-1 Whereabouts Unknown

Description of "Figure 5-1 Whereabouts Unknown"

If Whereabouts Unknown field is not required, uncheck the visible flag.

Example 2

Requirement: Adding a new Tab to the Screen. Move fields from one tab to another

As shown in below screenshot Main Tab contains Unique Identifier Field set. This field has to be moved to a new tab

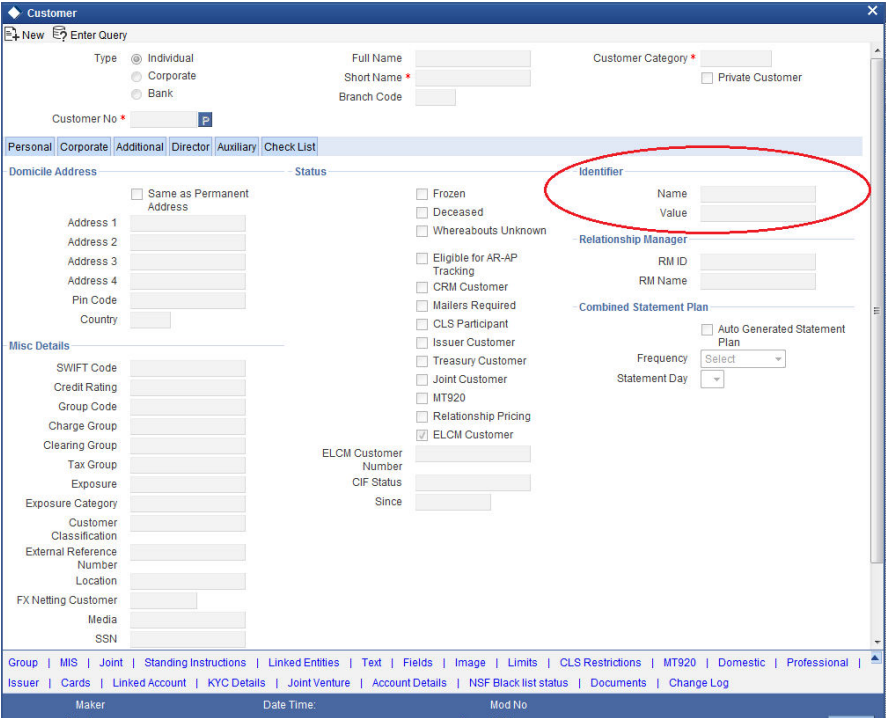

Figure 5-2 Unique Identifier

Description of "Figure 5-2 Unique Identifier"

As shown in below screenshot Main Tab contains Unique Identifier Field set. This field has to be moved to a new tab

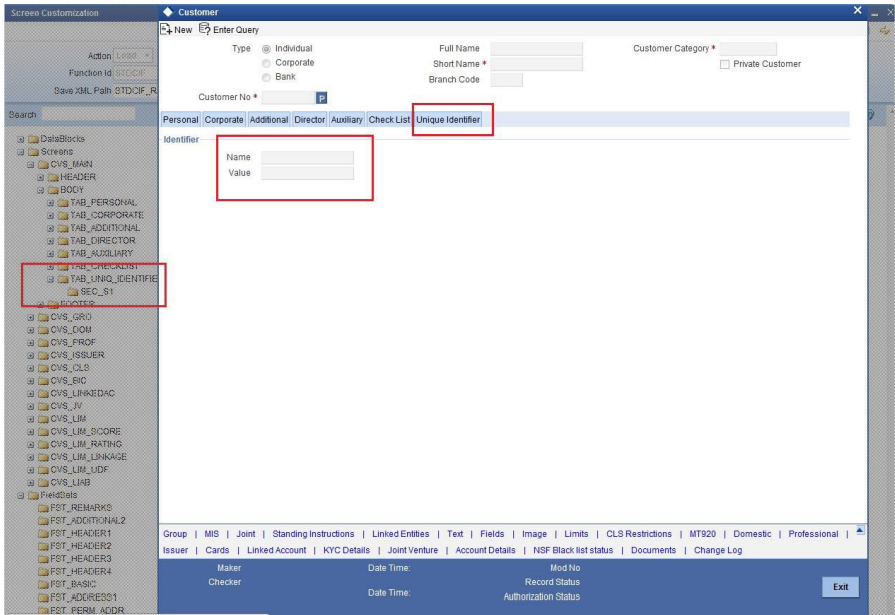

Figure 5-3 Unique Identifier 2

Description of "Figure 5-3 Unique Identifier 2"
