3 Screen Customizer

This topic describes Screen Customizer functionality available in Oracle FLEXCUBE Development Workbench.

DataBlocks

The Oracle FLEXCUBE Development Workbench Screen Customizer allows users to do UI changes on a screen. If only the screen layout of the function id has to be modified, the developer can use the Screen Customizer feature rather than the Function Generation feature.

Only the screen layout changes and UI field properties will be allowed to change in the Screen Customizer.

Note:

Only Load action is possible in Screen Customizer.
Only three nodes will be present in Screen Customizer as shown in the figure:

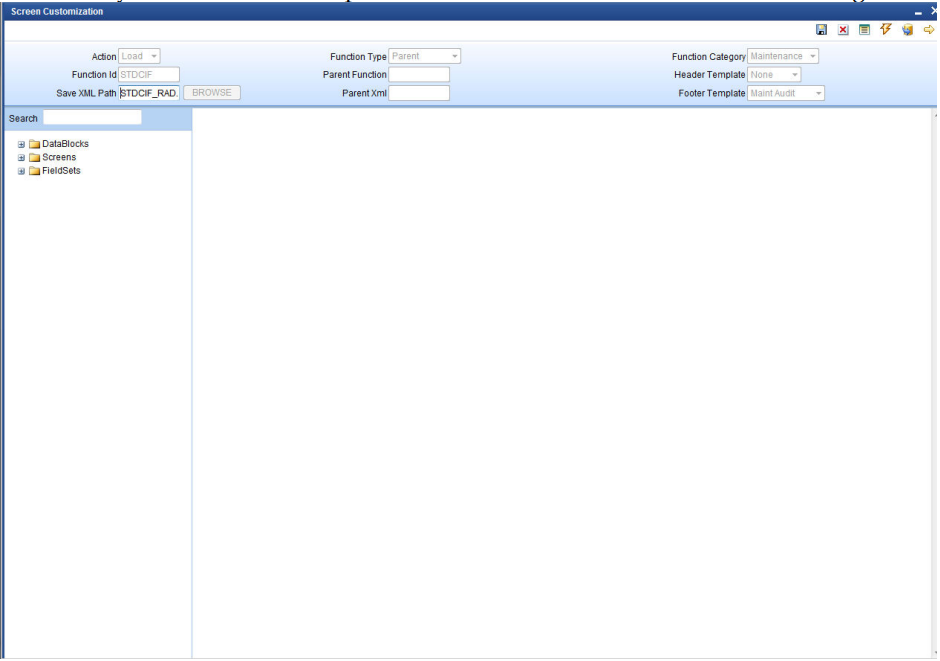

Figure 3-1 Screen Customization



Data Block properties would not be allowed to change in Screen Customizer. New Data Blocks and Block Fields also cannot be added. Deletion/Renaming of blocks and fields are also not allowed in Screen Customizer.

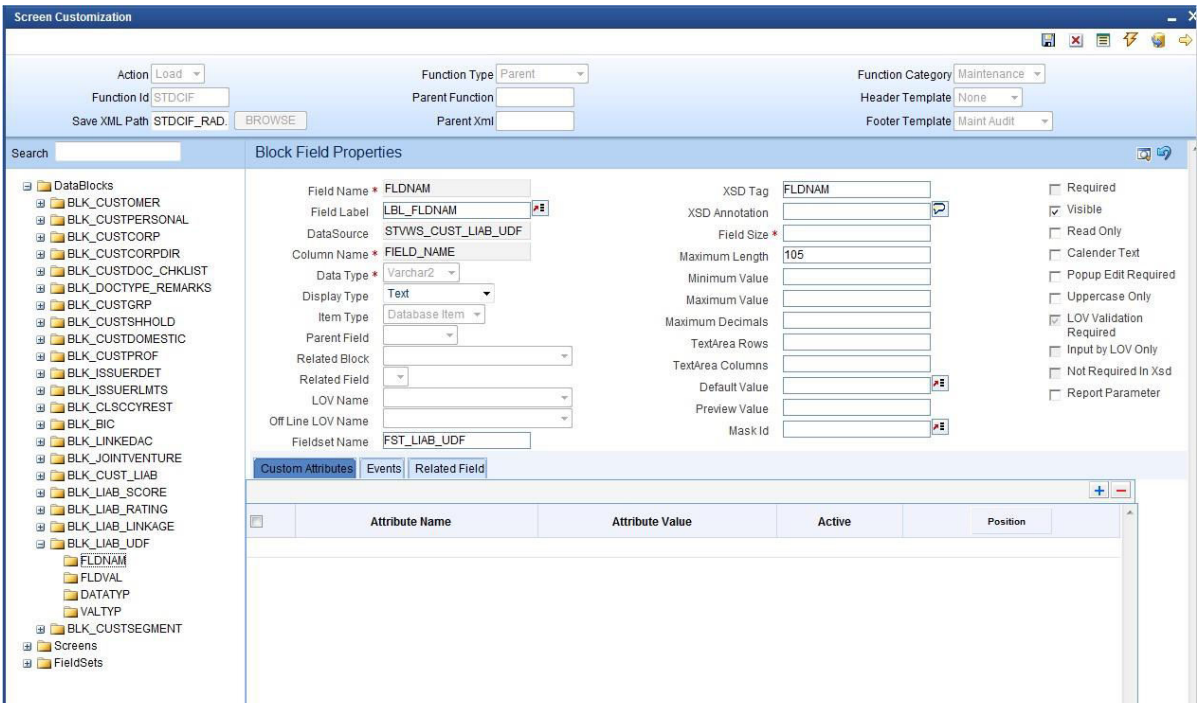

Figure 3-2 Screen Customization- Block Field Properties



The user will be allowed to change the below properties at the data block field level.
  • Display Type
  • Field Size
  • Preview Value
  • Popup Edit Required
  • Visible
  • Upper Case only
  • Read Only

Screens

All the actions can be performed at the screen level. Developers can add, modify, delete, and rename the screens, tabs, and sections. Note that deletion and renaming will be allowed only if the element is created in the working release.

FieldSet

In fieldset, the developer can change screen properties, display type from Vertical to Horizontal, read-only property, etc. Data Block to which fieldset is attached cannot be changed. Fieldset fields can be re-arranged as per requirement.

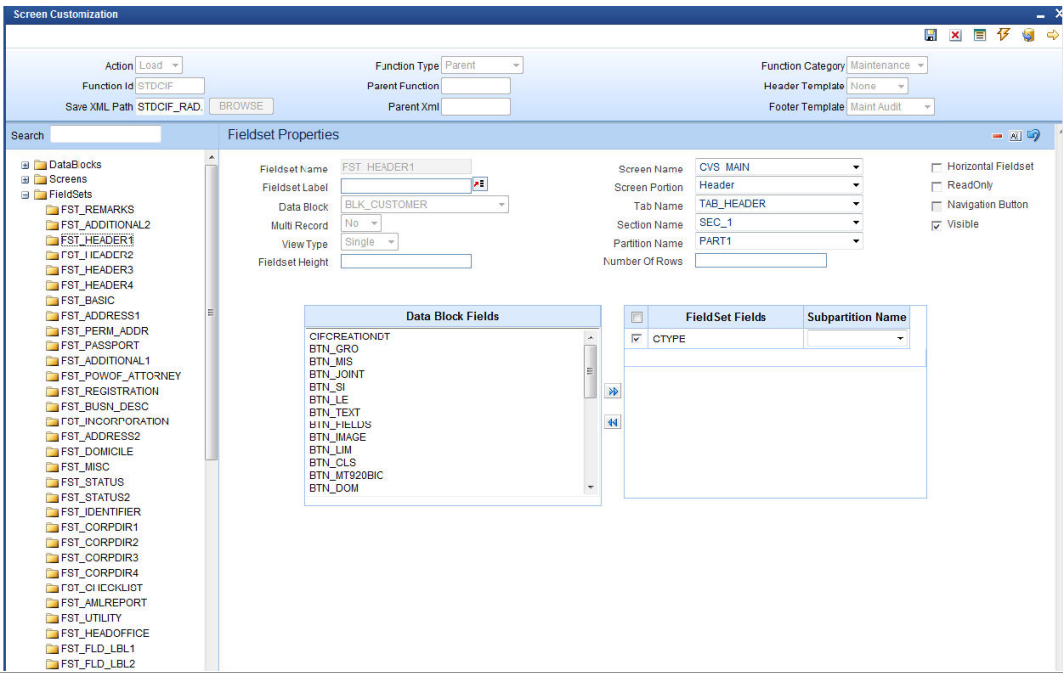

Figure 3-3 Screen Customization- Fieldset Properties
