4.3 Configure Cluster for Service Migration

This topic explains systematic instructions to configure cluster for service migration.

1. Under the Domain Structure left panel, click the Environment drop-down option, and then click Clusters.
   The Summary of Clusters screen displays.

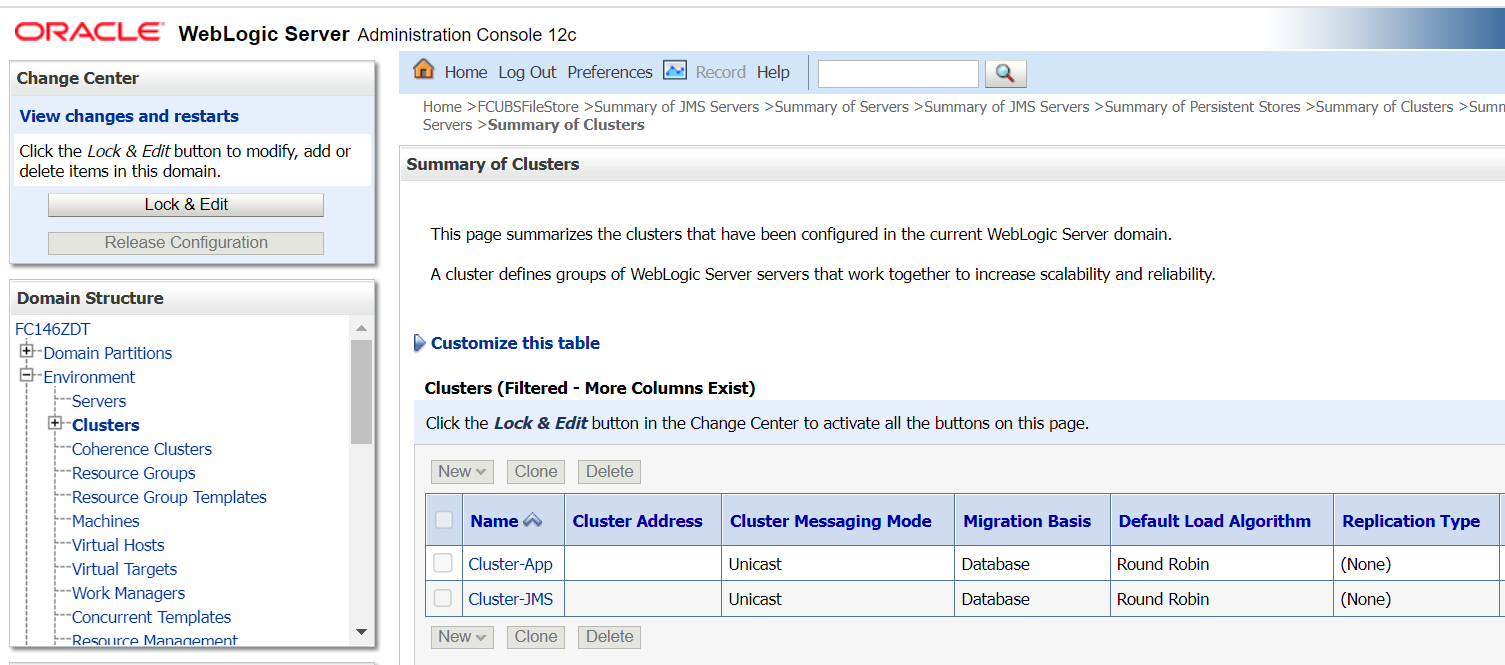

   Figure 4-11 Summary of Clusters





   Description of "Figure 4-11 Summary of Clusters"



2. Select Cluster-JMS from clusters table.
   The Settings for Cluster-JMS screen displays.

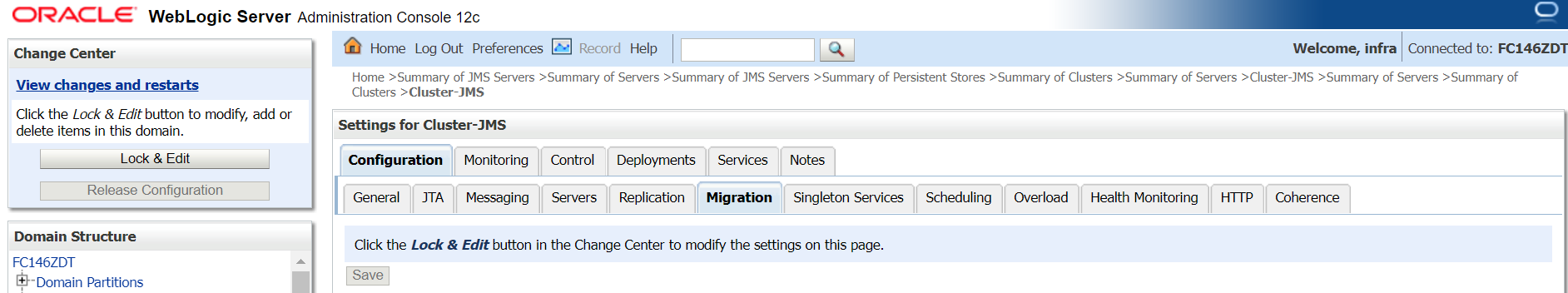

   Figure 4-12 Settings for Cluster-JMS





   Description of "Figure 4-12 Settings for Cluster-JMS"



3. Click the Migration Tab.
4. Change Migration Basis to Consensus, and then click Save.
