4.1 Create Persistence Store

This topic explains systematic instructions to create the Persistence Store.

1. Under the Domain Structure left panel, navigate to the Services, and click Messaging, and then Persistent Stores.
   The Summary of Persistent Stores screen displays.

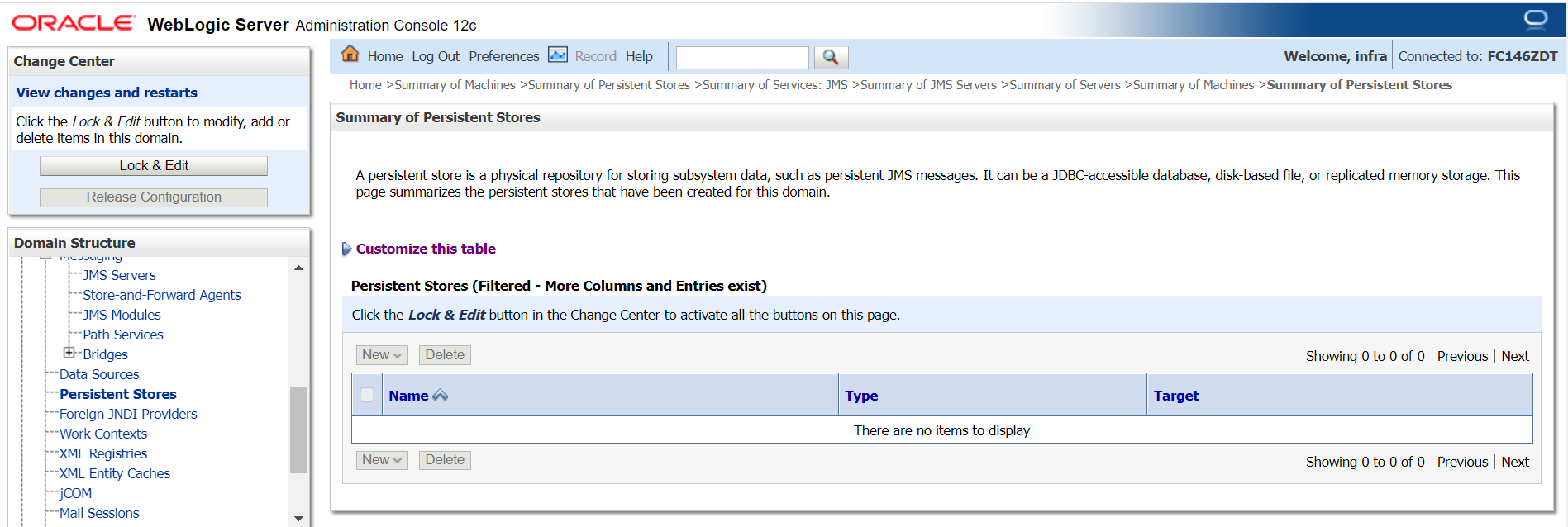

   Figure 4-1 Summary of Persistent Stores





   Description of "Figure 4-1 Summary of Persistent Stores"

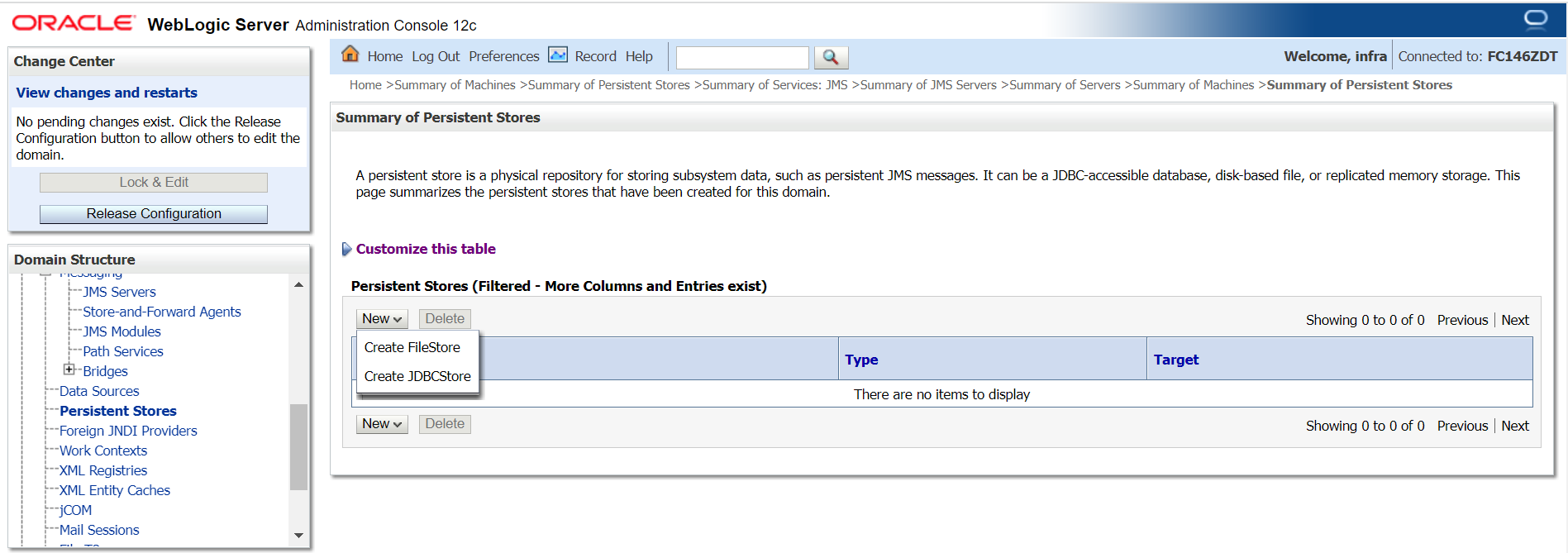

   Figure 4-2 Summary of Persistent Stores - Select New





   Description of "Figure 4-2 Summary of Persistent Stores - Select New"



2. Navigate to New in the Persistent Stores table, and then select Create FileStore by navigating through the drop-down option.
   The Create a New File Store screen displays.

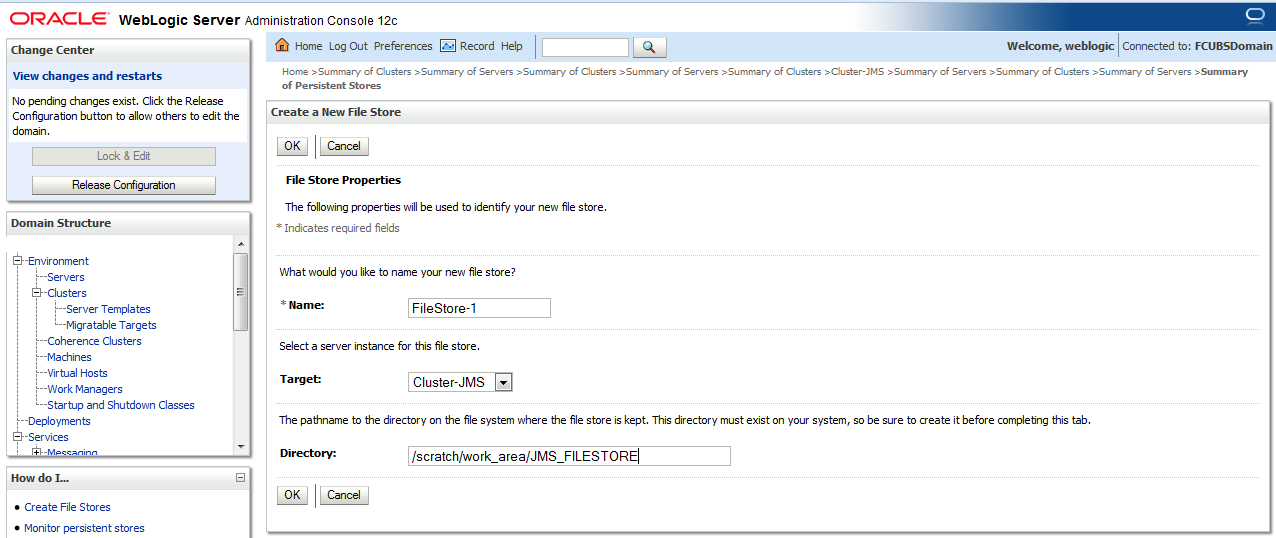

   Figure 4-3 Create a New File Store





   Description of "Figure 4-3 Create a New File Store"



3. Select Cluster-JMS under Target drop-down, and then click OK.
   The FileStore-1 is created.

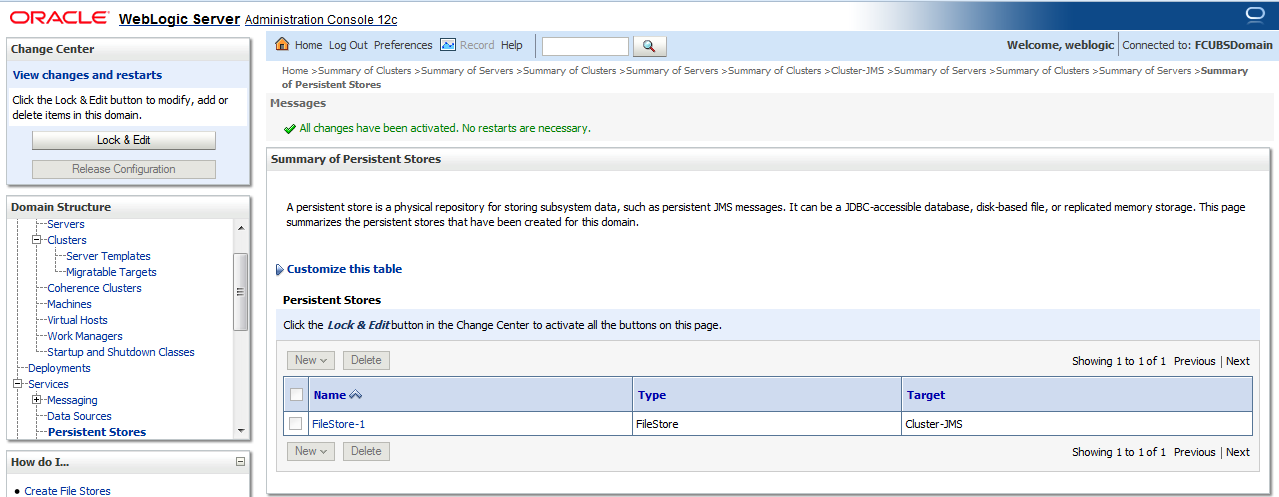

   Figure 4-4 Summary of Persistent Stores Message





   Description of "Figure 4-4 Summary of Persistent Stores Message"
