9.5 Test the Deployment

This topic explains systematic instructions to test the deployment.

1. Under the Domain Structure left panel, navigate to the Services drop-down option, and click Messaging, and then JMS Modules.
   The Summary of JMS Module screen displays.

   Figure 9-2 Summary of JMS Module








2. Navigate into JMS_MODULE, and then MDB_QUEUE.
   The Settings for MDB_QUEUE screen displays.

   Figure 9-3 Settings for MDB_QUEUE








3. Click the MONITORING tab.
   The Settings for MDB_QUEUE screen displays with Destinations table.

   Figure 9-4 Settings for MDB_QUEUE








4. Select any one server, and click Show Messages.
   The Summary of JMS Messages screen displays.

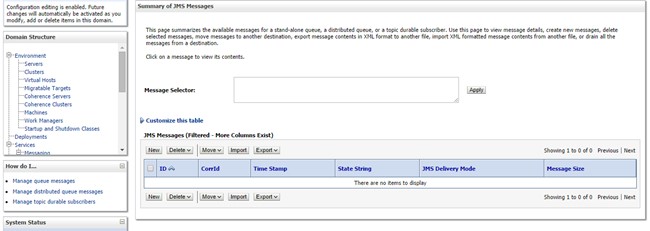

   Figure 9-5 Summary of JMS Messages








5. Click New.
   The Produce JMS Message screen displays.

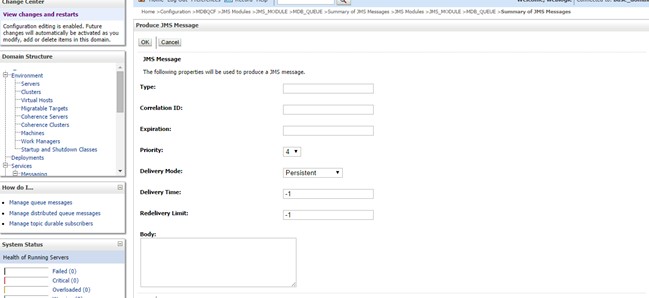

   Figure 9-6 Produce JMS Message








6. Enter the message in the field of Body, and click OK.
   The message is sent, and displays under the JMS Messages table.

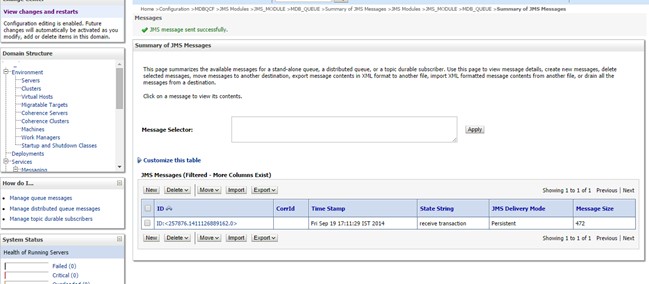

   Figure 9-7 Summary of JMS Messages








7. Verify at the backend or in the MDB log if the message is processed successfully.
