1.58 Maintain User Defined Fields

This topic explains systematic instructions to maintain user-defined fields.

Based on the requirement and the nature of the field, specify default values and validations for the field. Oracle FLEXCUBE Universal Banking validates all entries made to the field against the validations define for a field.

Note:

The fields which are marked in asterisk are mandatory.
  1. On Homescreen, type UDDUDFMT in the text box, and click Next.
    The User Defined Fields Maintenance screen displays.

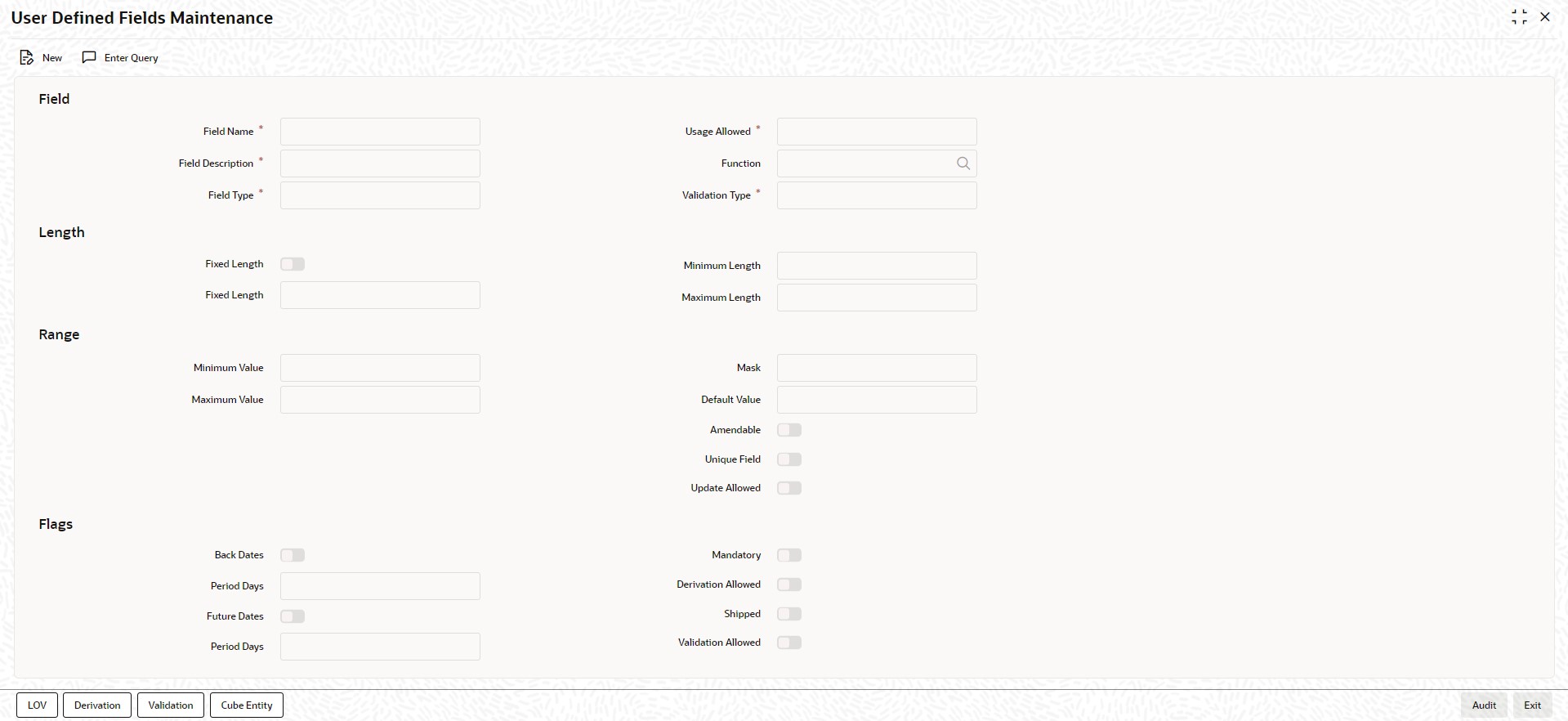

    Figure 1-59 User Defined Fields Maintenance


    Description of Figure 1-59 follows
    Description of "Figure 1-59 User Defined Fields Maintenance"

  2. On the User Defined Fields Maintenance screen, specify the fields.

    For more information on fields, refer to the field description table.

    Table 1-74 User Defined Fields Maintenance - Field Description

    Field Description
    Field Name Specify the Field Name.
    Field Description Enter the description of the specified field.
    Field Type Select the field type from the drop-down list:
    • Number
    • Text
    • Date
    • Cube Entity
    Usage Allowed Select the usage allowed for from the drop-down list:
    • Function
    • Product
    • Source
    Function Click Search and specify the function from the list of values.
    Validation Type Select the validation type from the drop-down list:
    • Length
    • Mask
    • Range
    • LOV
    • None
    Fixed Length Check this box to indicate the fixed length.
    Fixed Length Specify the Fixed Length value.
    Minimum Length Specify the Minimum Length value.
    Maximum Length Specify the Maximum Length value.
    Minimum Value Specify the Minimum Value.
    Maximum Value Specify the Maximum Value.
    Mask Specify the Mask.
    Default Value Specify the Default Value.
    Amendable Check this box to enable fields to amend.
    Unique Field Check this box to enable unique fields.
    Update Allowed Check this box to allow updates for the fields.
    Back Dates Check this box to enable back dates.
    Period Days Specify the backdated period days.
    Future Dates Check this box to enable future dates.
    Period Days Specify the future dated period days.
    Mandatory Check this box to enable mandatory fields.
    Derivation Allowed Check this box to allow derivation for the fields.
    Shipped Check this box to enable shipped fields.
    Validation Allowed Check this box to allow validation for the fields.

    A field that is created will become operational in Oracle FLEXCUBE Universal Banking only after it is authorized. A user bearing a different Login ID can authorize a field definition record that is created.

    Refer to the document User Defined Fields User Guide for call forms Cube Entity, Validation Rule, Derivation Rule, and List Of Values
  3. Click Exit to end the transaction.

Parent topic: Core Maintenance
