2.5.10 Exposure Type Maintenance

The topic describes about the detailed information on the exposure type maintenance screen.

Note:

The fields, which are marked with an asterisk, are mandatory.

1. On the Home screen, specify GEDEXPTY in the text box and click the icon.
   The Exposure Type Maintenance screen displays.

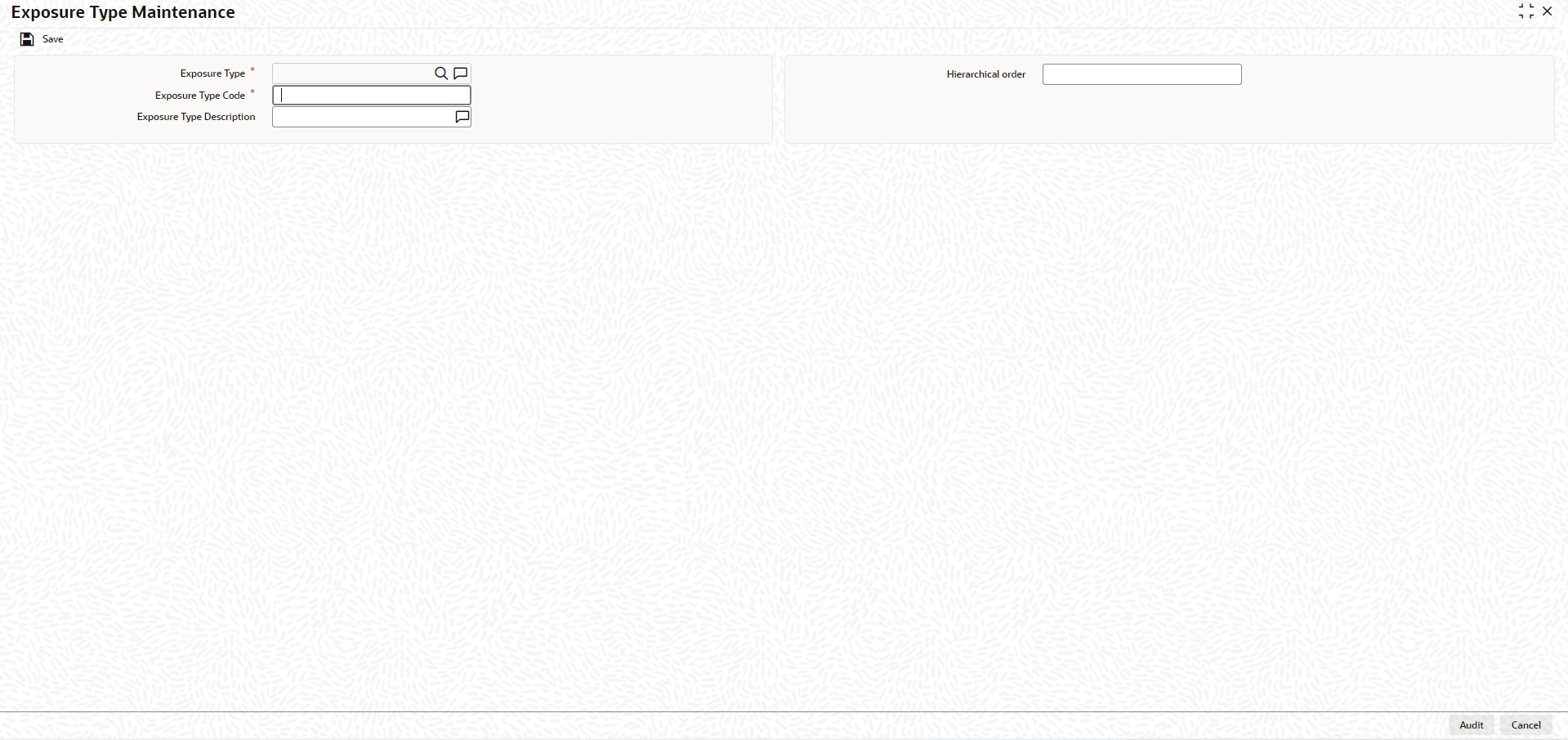

   Figure 2-19 Exposure Type Maintenance





   Description of "Figure 2-19 Exposure Type Maintenance"



2. On Exposure Type Maintenance screen, click New and specify the fields.
   For more information on fields, refer to the field description table.

   Table 2-20 Exposure Type Maintenance - Field Description

   Field	Description
   Exposure Type	Specify the exposure type. The following exposure types as well as the user defined exposure types maintained in Common Attribute Bulk Maintenance screen GEDTRKMT are: CURRENCY COUNTRY SECTOR INDUSTRY GROUP INDUSTRY SUB-INDUSTRY The user defined exposure types can be anything, for example, Zone, Regional office, Branch, and Department with the hierarchy 1, 2, 3, and 4, respectively.
   Exposure Type Code	Click the icon and select the exposure type code from the list. The types maintained in Common Attribute Bulk Maintenance screen (GEDTRKMT) are displayed in the list of values.
   Exposure Type Description	Specify the brief description of the exposure type.
   Hierarchical Order	Specify the order of hierarchy for the exposure type. This is non-mandatory in case there is no associated hierarchy.

3. Click Save to save the record.
