5.11 Linking an Utilization Transaction to a Facility
This topic provides information on Linking an Utilization Transaction to a Facility.
If user link an Oracle FLEXCUBE transaction to a facility, then based on the event of transaction corresponding, you need to process limits related data in Enterprise Limits and Collateral Management (ELCM) systems.
During processing if any error or override occurs in Enterprise Limits and Collateral Management, then Enterprise Limits and Collateral Management sends an error or override information to Oracle FLEXCUBE. Later Oracle FLEXCUBE displays the details to you. The Interface between Oracle FLEXCUBE and Enterprise Limits and Collateral Management is online real time using HTTP and all transaction posted into Enterprise Limits and Collateral Management is auto authorized. If delete or reversal action is triggered, the system will reverse the transaction in Enterprise Limits and Collateral Management.
If a contact needs to be tracked under facility, then you have to link the contact to the facility and during transaction processing, Oracle FLXCUBE sends the utilization details to Enterprise Limits and Collateral Management for processing.

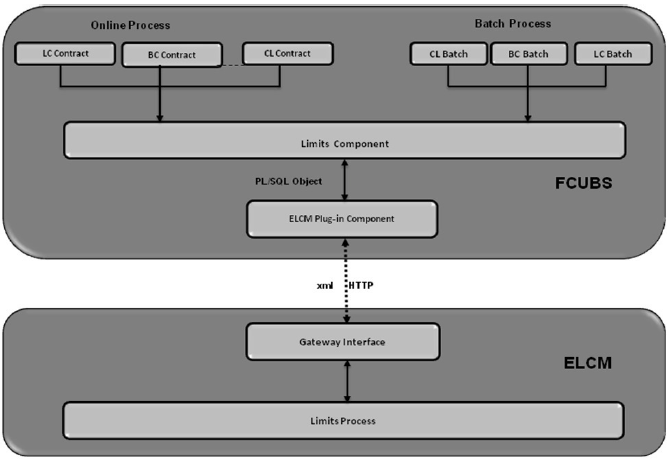

Figure 5-3 Utilization Transaction Integration Approach flow
Table 5-13 Oracle FLEXCUBE hands-off utilization transaction to Enterprise Limits and Collateral Management
| Sl. No | Oracle FLEXCUBE | Utilization Transaction Action |
|---|---|---|
| 1 | New | New |
| 2 | Modify | Modify/ Increase/Decrease |
| 3 | Delete | Delete |
| 4 | Reverse | Reverse |
| 5 | Liquate | Liquate |
| 6 | Rollover | Rollover |
| 7 | Payment | Decrease |
As part of the contract or transaction process, if a line code is linked to a contract then it is required to track the limits of the linked line. The system exposes limits process as subsystem and any module would interact with Limits subsystem.
The system allows you to trap all the utilization transaction. The system would interface with Enterprise Limits and Collateral Management Gateway HTTP to upload the utilization transactions in Enterprise Limits and Collateral Management. Based on the utilization event, the system creates utilization request in Enterprise Limits and Collateral Management format. It also logs transaction data and status of each utilization transaction.
