3 Deployment

This topic provides an overview of the Workbench-generated files deployment process.

Workbench-generated files can be deployed directly to the application server and schema. Front-end files get copied to the desired location which the user has maintained while adding environment details. Database files get compiled to FLEXCUBE schema which is specified in the working environment.

Prerequisites

The below maintenance is required to use the deploy option. In the environment, the user has two options to copy files based on the operating system the FLEXCUBE application is running.
  • Windows: File Copy / FileManager
  • Unix: FileManager
FileManager Servlet needs to deploy in the application server where FLEXCUBE is running. Refer File manager section in Development Workbench – Administration to get more details about the file manager.
In environment creation, the below details are mandatory to use the deploy option.

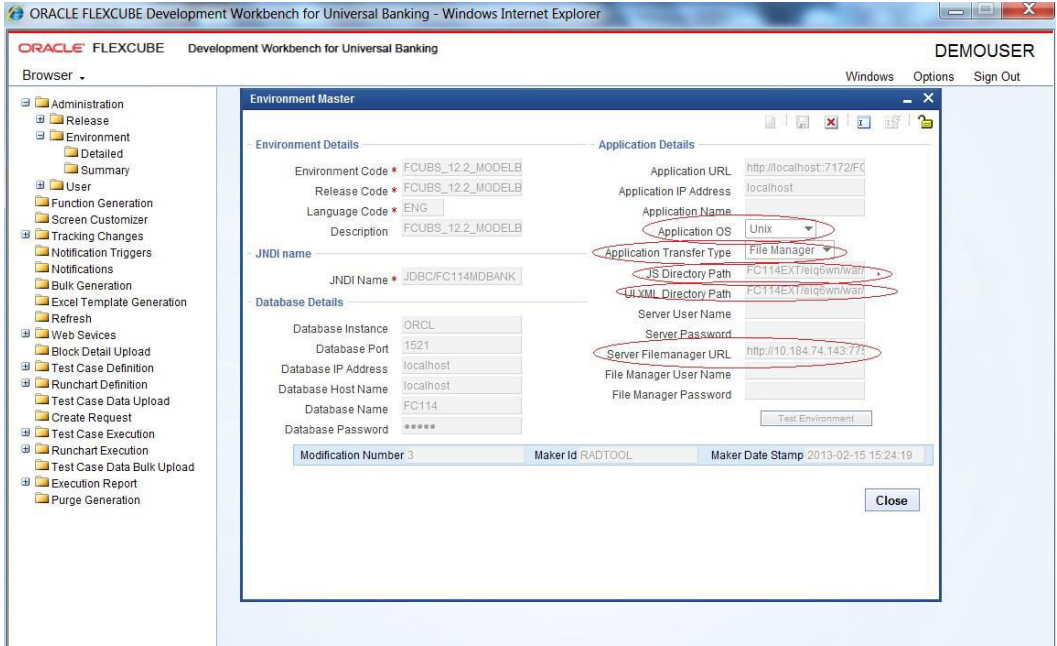

Figure 3-1 Environment Master


Description of Figure 3-1 follows
Description of "Figure 3-1 Environment Master"

Table 3-1 Environment Master

Field Description
Application Operating System Unix/Windows
Application Transfer Type
  • Windows: File Copy/FileManager
  • UNIX: FileManager
JS Directory Path Enter the shared path of JS files.
Uixml Directory Path Enter Shared path of Language XML files.

Note:

If the application server is Windows, the user can enter the absolute path.
  • Deploy Files
    This topic explains the systematic instructions to deploy the files.
