2.3.5 Maintain Integration Parameters

This topic describes about the Maintain Integration Parameters.

You have to maintain integration parameters for External LOV and ELCM Utilization. This maintenance must be done for all branches. This maintenance is done through Integration Parameters Maintenance screen.

1. On the Home screen, specify GEDHSTMN in the text box and click the icon.
   The Integration Parameters Maintanance screen is displayed.

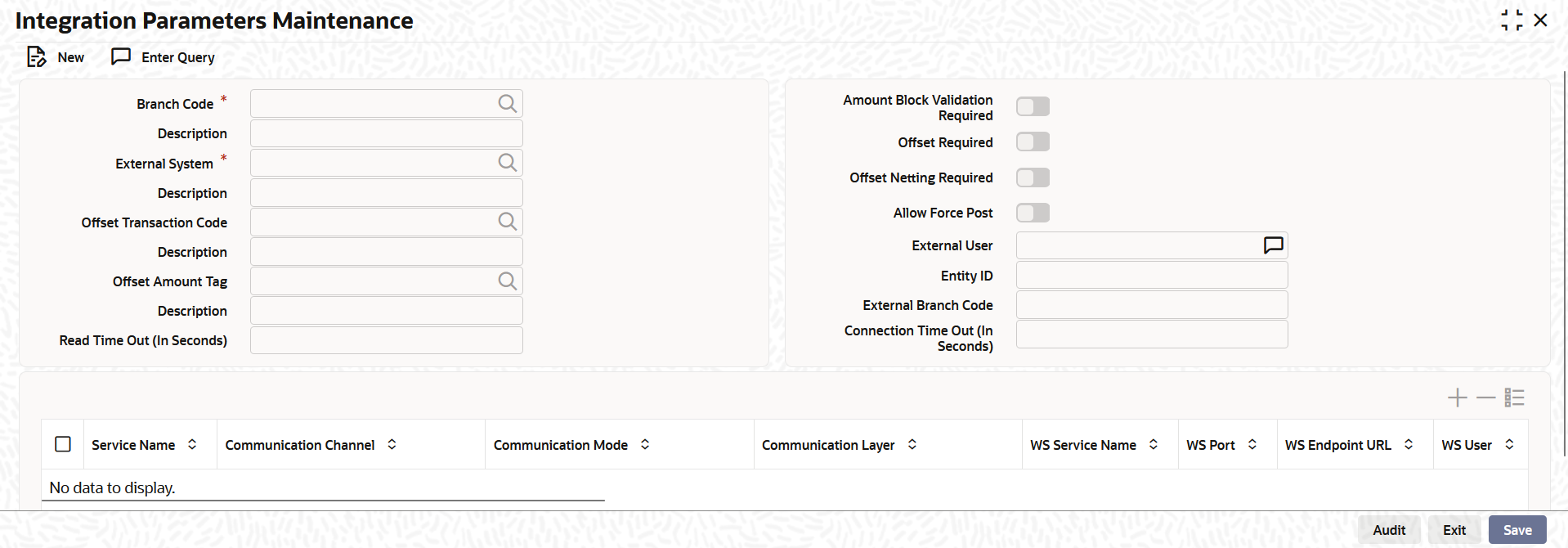

   Figure 2-7 Integration Parameters Maintenance





   Description of "Figure 2-7 Integration Parameters Maintenance "




   You need to maintain the integration parameters for the following:

   • External Lov – ExtLovService
   • ELCM Utilization – ELUtilizationService

   External Lov

   Table 2-7 External Lov - Fields and Description

   Fields	Description
   External System	External system name is specified here. For example: OLELCM
   Service Name	The service name for which the maintenance is done. For example, ELUtilization Service for ELCM and ExtLovService for External LovExtLovService.
   Communication Channel	The communication channel like REST, CUSTOM, WEB SERVICE, and so on are specified here.
   Communication Mode	The communication mode can be SYNC/ASYNC.
   Rest Service IP	You have to maintain the IP address. For example: ELCM IP.
   Rest Service Port	You have to maintain port details. For example: ELCM Port.
   Rest Service Pattern	You have to maintain rest service pattern. For example: LovService.
   Rest Service Context	You have to maintain rest service context. For example: FCJNeoWeb.
   External User	ELCM user should have access to all branches and autoauth.

   ELCM Utilization

   Table 2-8 ELCM Utilization - Fields and Description.

   Field	Description
   External System	External system name is specified here. For example: OLELCM.
   Service Name	The service name for which the maintenance is done. For example: ELUtilizationService for ELCM ExtLovService for External LovExtLovService
   Communication Channel	The communication channel like REST, CUSTOM, WEB SERVICE, and so on are specified here.
   Communication Mode	The communication mode can be SYNC/ASYNC.
   WS Service Name	The service name needs to be maintained here. For example, ELUtilizationService.
   WS Endpoint URL	The WSDL of the services are maintained here. For example, ELCM utilization service WSDL link
   WS User	ELCM user should have access to all branches and autoauth.
   External User	ELCM user should have access to all branches and autoauth.
