5.4 Create Queue

This topic explains systematic instructions to create the Queue.

  1. Under the Domain Structure left panel, navigate to the Services drop-down option.
  2. Click Messaging, and then click JMS Modules.
    The Settings for JMS_Module screen displays.

    Figure 5-10 Settings for JMS_Module


    Description of Figure 5-10 follows
    Description of "Figure 5-10 Settings for JMS_Module"

  3. Click the Configuration tab, and then click New.
    The Create a New JMS System Module Resources screen displays to choose the type of resources.
  4. Select the Distributed Queue, and then click Next.
    The Create a New JMS System Module Resources screen displays to enter the name of the resources.

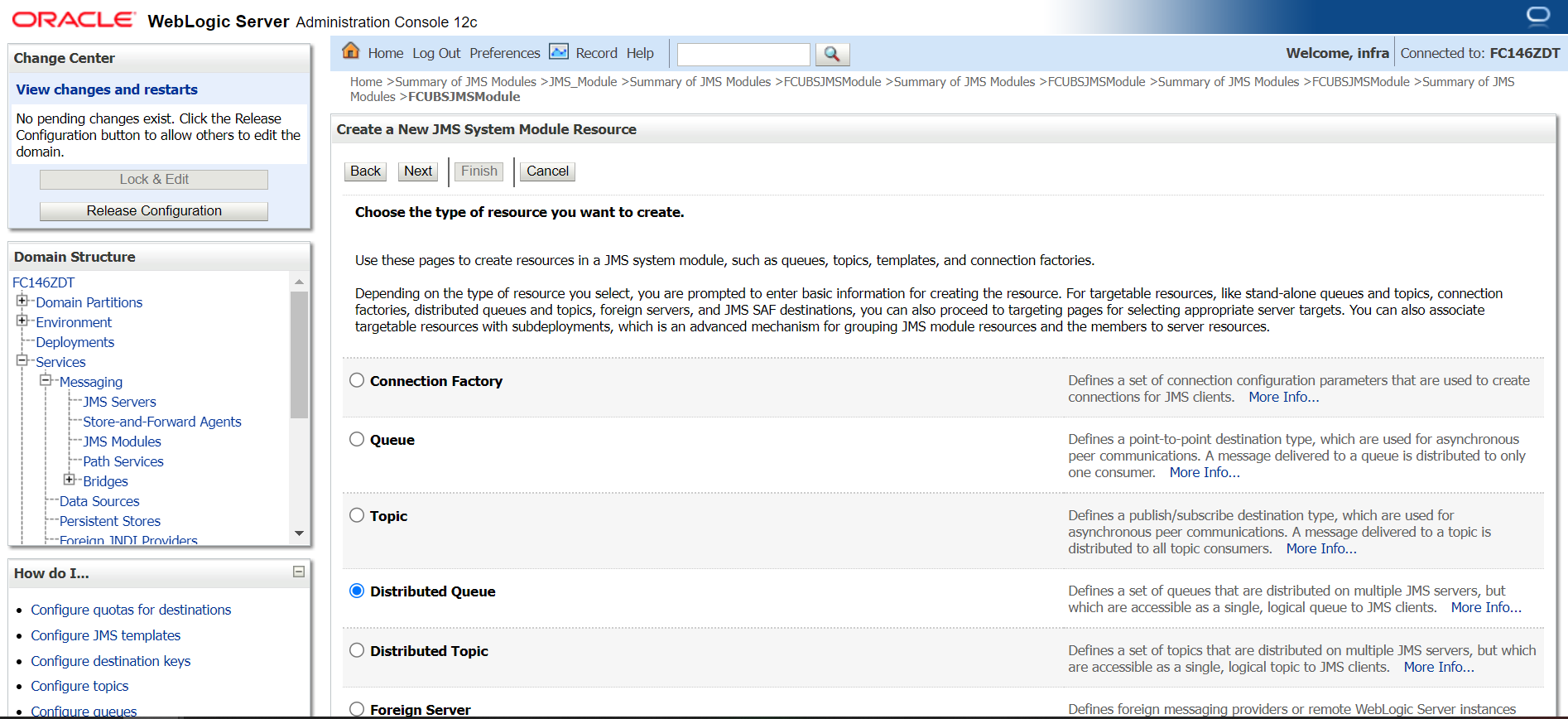

    Figure 5-11 Create a New JMS System Module Resources


    Description of Figure 5-11 follows
    Description of "Figure 5-11 Create a New JMS System Module Resources"

  5. Enter the Name as MDB_QUEUE, and Click Next.
    The Create a New JMS System Module Resources screen displays to enter the name of the resources.

    Figure 5-12 Create a New JMS System Module Resources


    Description of Figure 5-12 follows
    Description of "Figure 5-12 Create a New JMS System Module Resources"

  6. Click the Advance Targeting tab.
    The Targets tab opens in Create a New JMS System Module Resources screen.

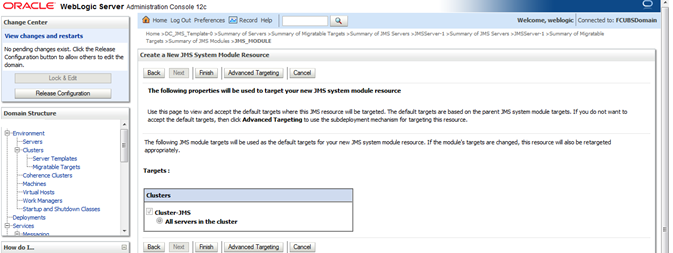

    Figure 5-13 Create a New JMS System Module Resources


    Description of Figure 5-13 follows
    Description of "Figure 5-13 Create a New JMS System Module Resources"

  7. Select Subdeployement as JMS_SUB, and then click Finish.
    Create a New JMS System Module Resources screen displays with subdeployement and target details.

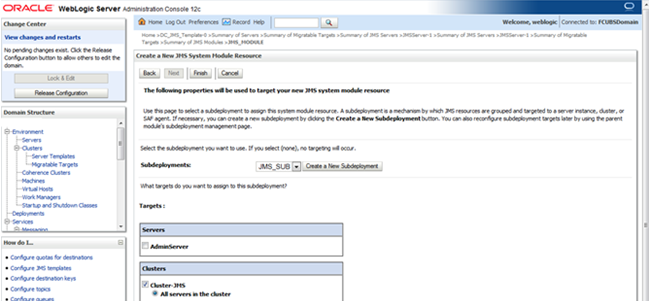

    Figure 5-14 Create a New JMS System Module Resources


    Description of Figure 5-14 follows
    Description of "Figure 5-14 Create a New JMS System Module Resources"

  8. MDB-QUEUE is created.
    The MDB-QUEUE is reflected under Summary of Resources.

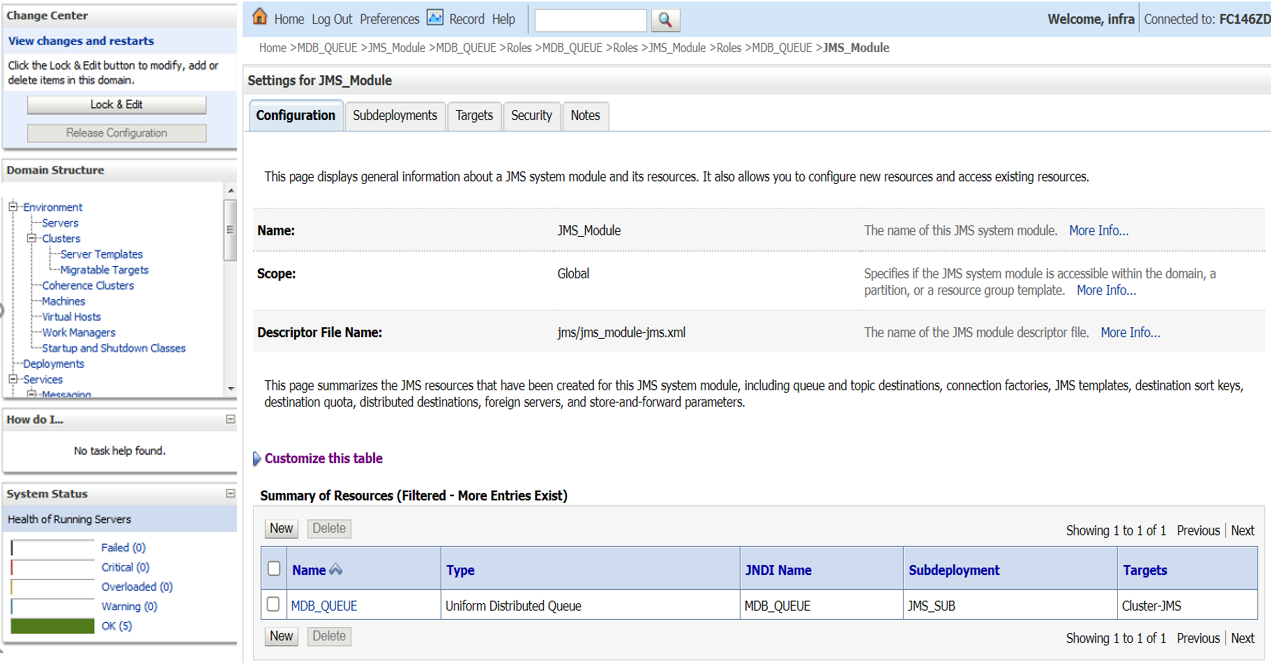

    Figure 5-15 Summary of Resources


    Description of settings-jms_module-resources-create-queue.png follows
    Description of the illustration settings-jms_module-resources-create-queue.png

  9. Similarly create the MDB_QUEUE_RESPONSE and MDB_QUEUE_DLQ.
    The MDB_QUEUE_RESPONSE and MDB_QUEUE_DLQ displays under the tab Summary of Resources.

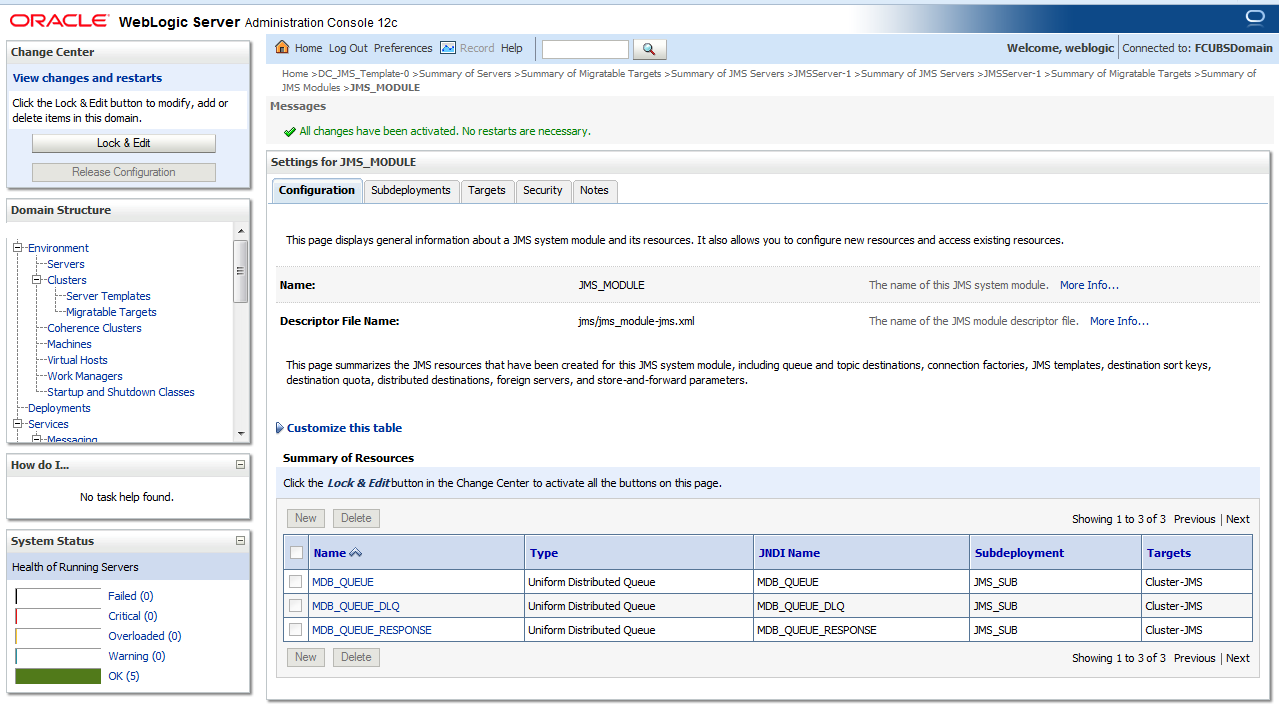

    Figure 5-16 Settings for JMS_Module - Message


    Description of Figure 5-16 follows
    Description of "Figure 5-16 Settings for JMS_Module - Message"
