6 Deployments
This topic provides the systematic instructions to deploy services for Oracle Banking Enterprise Limits and Collateral Management Installation.
The prerequisites are as follows:
- Make sure that database setup and data sources creation are completed before the application deployment stage.
- Each service is linked to a specific war file that must be deployed on the server.

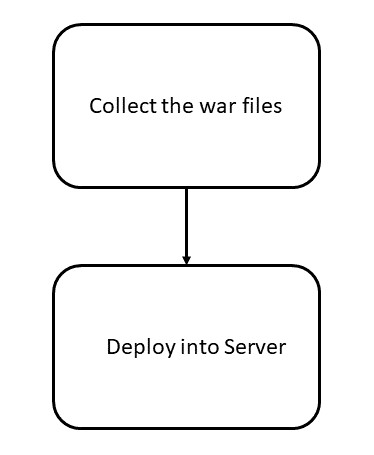

The following diagram represents the process of deploying the war files.
Deploy the war files sequentially in the given order. For additional details on deployments, see the Deploy Application section in the Configuration and Deployment Guide.
The table below outlines the deployment details needed
for each domain to operate the Oracle Banking Enterprise
Limits and Collateral Management application. The archive
names listed are for reference only.
Note:
For the exact version of the archive names and version, refer to the OSDC zip provided as a part of release.Deployment List
Table 6-1 Deployment List
| Application | Archive Name | OSDC Path | Target |
|---|---|---|---|
| obelcm-common-maintenance-services | obelcm-common-maintenance-services-{version}.war | \{unzip the file} \obelcm-common-maintenance-services | Maintenance Server (managed server 1) |
| obelcm-limits-maintenance-services | obelcm-limits-maintenance-services-{version}.war | {unzip the file} \obelcm-limits-maintenance-services | Maintenance Server (managed server1 |
| obelcm-collateral-maintenance-services | obelcm-collateral-maintenance-services-{version}.war | {unzip the file} \obelcm-collateral-maintenance-services | Maintenance Server (managed server1 |
| obelcm-exposure-maintenance-services | obelcm-exposure-maintenance-services-{version}.war | \{unzip the file} \obelcm-exposure-maintenance-services | Maintenance Server (managed server1 |
| obcc-core-services | obcc-core-services-{version}.war | {unzip the file} \obcc-core-services | Maintenance Server (managed server1 |
| covenant-services | covenant-services-{version}.war | {unzip the file} \covenant-services | Maintenance Server (managed server1 |
| terms-conditions-services | oblm-pool-services-{version}.war | \OBLM_SERVICES\oblm-pool-services\ | Maintenance Server (managed server1 |
| oblm-dashboard-services | terms-conditions-services-{version}.war | {unzip the file} \terms-conditions-services | Maintenance Server (managed server1 |
| obelcm-limits-utilization-services | obelcm-limits-utilization-services-{version}.war | {unzip the file} \obelcm-limits-utilization-services | Transaction Server (managed server2) |
|
obelcm-collaterals-utilization-services |
obelcm-collaterals-utilization-services-{version}.war | {unzip the file} \obelcm-collaterals-utilization-services | Transaction Server (managed server2) |
|
obelcm-pp-limits-kafka-consumer-services |
obelcm-pp-limits-kafka-consumer-services-{version}.war | {unzip the file} \obelcm-pp-limits-kafka-consumer-services | Kafka Consumer Server (managed server3) |
| obelcm-pp-limits-currency-reval-services | obelcm-pp-limits-currency-reval-services-{version}.war | {unzip the file} \obelcm-pp-limits-currency-reval-services | Limits Batch Server (managed server4) |
| obelcm-pp-facility-transfer-batch-services | obelcm-pp-facility-transfer-batch-services-{version}.war | {unzip the file} \obelcm-pp-facility-transfer-batch-services | Limits Batch Server (managed server4) |
| obelcm-pp-facility-earmarking-batch-services | obelcm-pp-facility-earmarking-batch-services-{version}.war | {unzip the file} \obelcm-pp-facility-earmarking-batch-services | Limits Batch Server (managed server4) |
| obelcm-pp-exposure-block-batch-services | obelcm-pp-exposure-block-batch-services-{version}.war | {unzip the file} \obelcm-pp-exposure-block-batch-services | Limits Batch Server (managed server4) |
| obelcm-pp-facility-nonrev-closure-batch-services | obelcm-pp-facility-nonrev-closure-batch-services-{version}.war | unzip the file} \obelcm-pp-facility-nonrev-closure-batch-services | Limits Batch Server (managed server4) |
| obelcm-facility-stats-master-batch-services | obelcm-facility-stats-master-batch-services-{version}.war | {unzip the file} \obelcm-facility-stats-master-batch-services | Limits Batch Server (managed server4) |
| obelcm-pp-liab-tanking-untanking-batch-services | obelcm-pp-liab-tanking-untanking-batch-services-{version}.war | Limits Batch Server (managed server4) | Limits Batch Server (managed server4) |
| obelcm-pp-facility-expiry-batch-services | obelcm-pp-facility-expiry-batch-services-{version}.war | {unzip the file} \obelcm-pp-facility-expiry-batch-services | Limits Batch Server (managed server4) |
| obelcm-facility-fee-batch-services | obelcm-facility-fee-batch-services-{version}.war | {unzip the file} \obelcm-facility-fee-batch-services | Limits Batch Server (managed server4) |
| obelcm-pp-facility-activation-batch-services | obelcm-pp-facility-activation-batch-services-{version}.war | {unzip the file} \obelcm-pp-facility-activation-batch-services | Limits Batch Server (managed server4) |
| obelcm-pp-facility-schedules-batch-services | obelcm-pp-facility-schedules-batch-services-{version}.war | {unzip the file} \obelcm-pp-facility-schedules-batch-services | Limits Batch Server (managed server4) |
| obelcm-pp-facility-gebsuval-batch-services | obelcm-pp-facility-gebsuval-batch-services-{version}.war | {unzip the file} \obelcm-pp-facility-gebsuval-batch-services | Limits Batch Server (managed server4) |
| obelcm-pp-coll-activation-batch-services-{version}.war | obelcm-pp-coll-activation-batch-services-{version}.war | {unzip the file} \obelcm-pp-coll-activation-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-coll-perfection-status-batch-services | obelcm-pp-coll-perfection-status-batch-services-{version}.war | {unzip the file} \obelcm-pp-coll-perfection-status-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-coll-pool-util-reval-batch-services | obelcm-pp-coll-pool-util-reval-batch-services-{version}.war | {unzip the file} \obelcm-pp-coll-pool-util-reval-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-coll-tanking-untanking-batch-services | obelcm-pp-coll-tanking-untanking-batch-services-{version}.war | {unzip the file} \obelcm-pp-coll-tanking-untanking-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-collateral-batch-services | obelcm-pp-collateral-batch-services-{version}.war | {unzip the file} \obelcm-pp-collateral-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-collateral-charge-expiry-batch-services | obelcm-pp-collateral-charge-expiry-batch-services-{version}.war | {unzip the file} \obelcm-pp-collateral-charge-expiry-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-collateral-child-reval-batch-services | obelcm-pp-collateral-child-reval-batch-services-{version}.war | {unzip the file} \obelcm-pp-collateral-child-reval-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-collateral-eca-accounting-batch-services | obelcm-pp-collateral-eca-accounting-batch-services-{version}.war | {unzip the file} \obelcm-pp-collateral-eca-accounting-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-collateral-enddate-reval-batch-services | obelcm-pp-collateral-enddate-reval-batch-services-{version}.war | {unzip the file} \obelcm-pp-collateral-enddate-reval-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-collateral-expiry-batch-services | obelcm-pp-collateral-expiry-batch-services-{version}.war | {unzip the file} \obelcm-pp-collateral-expiry-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-collateral-facility-master-batch-service | obelcm-pp-collateral-facility-master-batch-service-{version}.war | {unzip the file} \obelcm-pp-collateral-facility-master-batch-service | Collateral Batch Server (managed server5) |
| obelcm-pp-collateral-fee-batch-services | obelcm-pp-collateral-fee-batch-services-{version}.war | {unzip the file} \obelcm-pp-collateral-fee-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-collateral-fee-batch-services | obelcm-pp-collateral-haircut-batch-services-{version}.war | {unzip the file} \obelcm-pp-collateral-haircut-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-collateral-pool-reval-batch-services | obelcm-pp-collateral-pool-reval-batch-services-{version}.war | {unzip the file} \obelcm-pp-collateral-pool-reval-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-collateral-reval-batch-services | obelcm-pp-collateral-reval-batch-services-{version}.war | {unzip the file} \obelcm-pp-collateral-reval-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-collateral-util-reval-batch-services | obelcm-pp-collateral-util-reval-batch-services-{version}.war | {unzip the file} \obelcm-pp-collateral-util-reval-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-colpool-tanking-untanking-batch-services | obelcm-pp-colpool-tanking-untanking-batch-services-{version}.war | {unzip the file} \obelcm-pp-colpool-tanking-untanking-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-common-notification-batch-services | obelcm-pp-common-notification-batch-services-{version}.war | {unzip the file} \obelcm-pp-common-notification-batch-services | Collateral Batch Server (managed server5) |
| obelcm-pp-common-ofsaa-batch-services | obelcm-pp-common-ofsaa-batch-services-{version}.war | {unzip the file} \obelcm-pp-common-ofsaa-batch-services | Collateral Batch Server (managed server5) |
| OBO UI Components | app-shell-{version}.war | {unzip the file} ui/ | Appshell Server |
| cmc-component-server-{version}.war | |||
| moc-component-server-{version}.war | |||
| sms-component-server-{version}.war | |||
| obelcm-component-server-{version}.war | |||
| obcc-component-server-{version}.war |
Note:
Refer to OSDC zip for the eaxct version number for each service.
