6.1 Account Structure

This topic describes the systematic instructions to view the list of the account structure maintained in Liquidity Management system.

Specify User ID and Password, and login to Home screen.

1. On Home screen, click Liquidity Management. Under Liquidity Management, click Structure.
2. Under Structure, click Account Structure.
   The Account Structure screen displays.

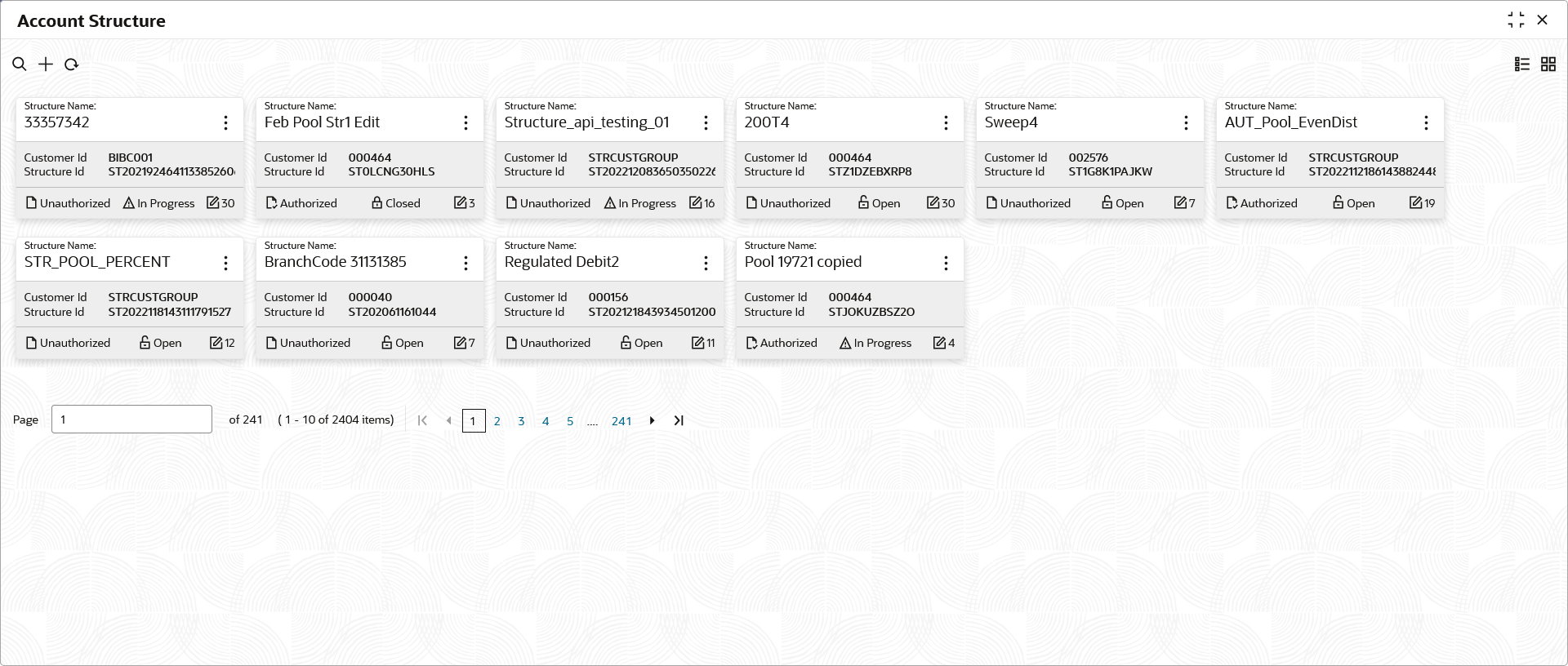

   Figure 6-1 Account Structure





   Description of "Figure 6-1 Account Structure"




   For more information on fields, refer to the field description table.

   Table 6-1 Account Structure - Field Description

   Field	Description
   Structure Name	Displays the name of the structure.
   Customer ID	Displays the customer ID.
   Structure ID	Displays the Structure ID.
   Authorization Status	Displays the authorization status of the record. The options are: Authorized Rejected Unauthorized
   Record Status	Displays the status of the record. The options are: Open Closed
   Modification Number	Displays the number of modification made to the record.

• Create Structure
  This topic describes the systematic instruction to create a new structure in Liquidity Management.
• Edit Structure
  This topic describes the systematic instructions to edit the existing account structures.
