1.10.1 Create UDE Group Codes

This topic describes the systematic instructions to configure the UDE Group Codes details.

1. On Home screen, click Interest and Charges. Under Interest and Charges, click UDE Group Codes.
2. Under UDE Group Codes, click Create .
   The UDE Group Codes - Create screen displays.

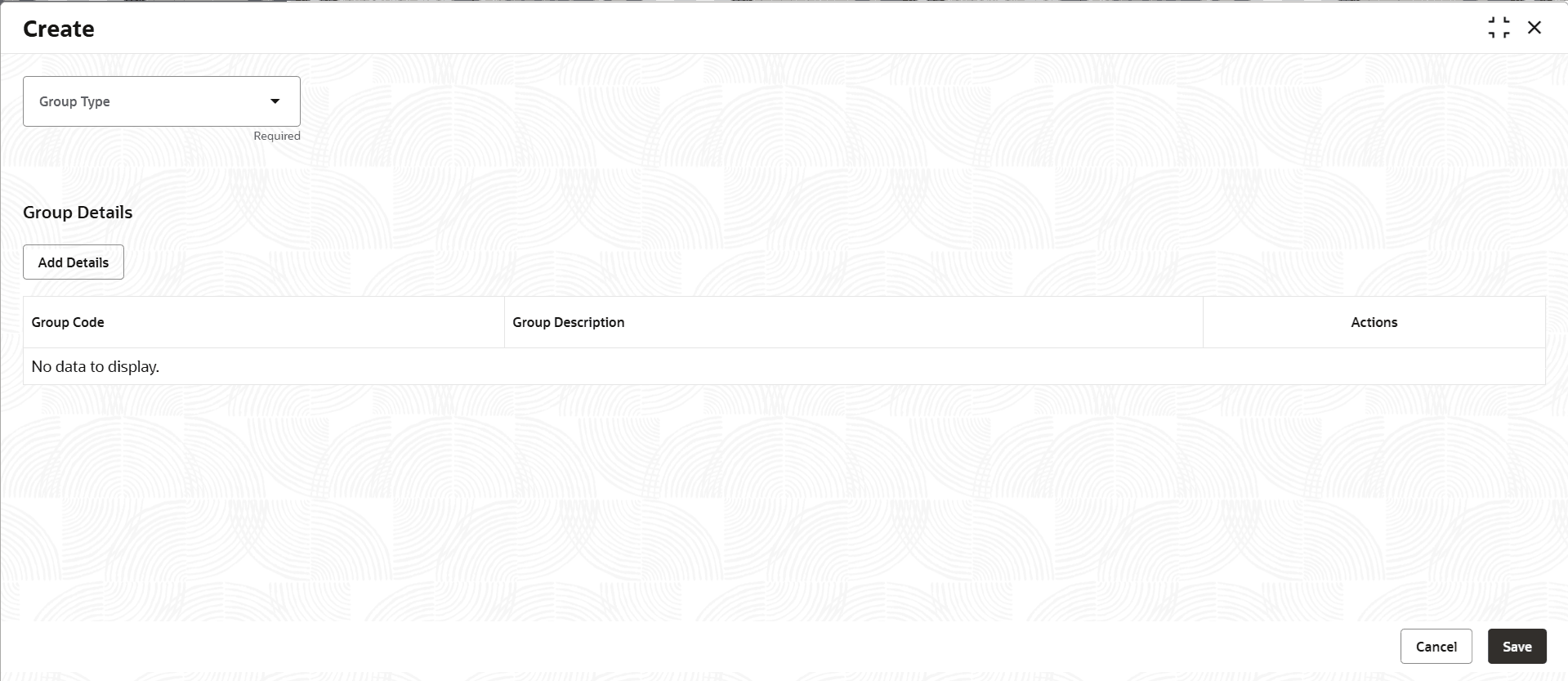

   Figure 1-23 UDE Group Codes - Create





   Description of "Figure 1-23 UDE Group Codes - Create"



3. Specify the fields on UDE Group Codes - Create screen.

   Note:

   The fields marked as Required are mandatory.

   For more information on fields, refer to the field description table.

   Table 1-22 UDE Group Codes - Create - Field Description

   Field	Description
   Group Type	Select Rate Group or Customer Group.
   Group Details	This section displays the group details related fields.
   Group Code	Specify Group code for rate group/customer group.
   Group Description	Specify Group code description.
   Actions	Click the Edit icon to edit the group details. Click the Delete icon to delete the group details.

4. Click Save to save the details.
   The user can view the configured UDE value input using View UDE Group Codes screen.
