11 Common Core Generative AI Service Setup

In this section you are going to setup the common core generative AI service for Oracle Banking Origination Installation.

Prerequisite

To run the Generative AI document analyzer service, below list must be installed:

• Operating System: Oracle Linux 8
• Python Version: 3.9.5
• Tesseract: 5.1.0
• Document Verification Service

Below package must be installed:

1. yum install zlib zlib-devel
2. yum install libffi-devel openssl-devel
3. yum install bzip2 bzip2-devel
4. yum install poppler-utils
5. yum install xz xz-devel xz-libs

Refer theDocument Verification Framework of the Common Core Services Installation Guide for the manual installation process of the packages.

Application Installation

Geneartive AI document analyzer is a python-based application. The applciation is shipped as a byte-coded whl file. This wheel file installs all the implementation files without any dependencies. All the required dependencies are to be installed separately, refer below steps for the detailed process. It is recommended to install the whl file and the dependencies in a virtual environment using pip so that it doesn't affect any other operations or applications running in the system.

To install the application and the dependencies:

1. Use the below command to install the application wheel package provided, for example

   cmc_ml_genai_doc_analyzer-{version}-py3-none-any.whl

   pip install <wheel_package_name>.whl

2. Install all the dependencies.

Dependency Installation

After installing the Document verification service, the following dependencies must be installed. Please install below third-party dependencies before starting the services.

Note:

These packages must be installed in the environment where the document verification services are installed.

The dependencies can be installed using below commands:

pip install openai==0.27.7
pip install pypdf==3.9.1
pip install PyPDF2==3.0.1
pip install Flask-Cors==3.0.7
pip install pdfminer.six==20221105
pip install openpyxl==3.1.2
pip install cohere==4.32.0
pip install PyMuPDF==1.22.5
pip install tabulate==0.9.0
pip install oci==2.112.1
pip install oracledb==1.3.2
pip install langchain==0.0.295
pip install docx2txt==0.8
pip install tiktoken==0.5.2
pip install llama-cpp-python==0.1.83
pip install pydantic==1.10.13
pip install py-eureka-client==0.10.0
pip install importlib-metadata==6.0.0
pip install sentence-transformers==2.2.2

Note:

This application works when above libraries are installed with required versions. Please don’t upgrade the libraries unless instructed in the documentation.

Configuration Update

We provide below configuration files:

1. application-config.json
2. system-config.json
3. logging-config.json

The application-config.json file has the configuration details that are supposed to be changed by the user. Please refer the below table for the fields and description of the fields:

Table 11-1 Configuration Update

Sr No	Parameter	Description
1	APPLICATION_NAME	Application name of our service to register on eureka.
2	LLM	Name of the LLM that you want to use. (openai/cohere)
3	LLM_API_KEY	The valid API Key of above mentioned LLM.
4	USE_CONFIG_LLM_API_KEY	Whether the API key should be used from this application config or not. (yes/no)
5	DELETE_AFTER_TRAINING	Whether the documents, trained files should be deleted post use or not. (yes/no)
6	WORKING_DOCUMENT_DIR	Path to local folder where trained files will be stored. User should have Read-Write permissions to this folder.
7	OCI_CONFIG_FILE	Path to ‘oci_config.txt’ file. You can get the filepath after completing the step of setting up OCI Credentials & configuration setup explained later in this document.
8	EUREKA_CLIENT_SERVICE_DEFAULT_ZONE	Address of Eureka for which we are getting DMS host to connect with.
9	DMS_DOWNLOAD_ENDPOINT	Endpoint used for downloading from DMS.
10	DMS_UPLOAD_ENDPOINT	Endpoint used for uploading to DMS.
11	DMS_SERVICE	Name of the DMS service to locate on eureka.

OCI Credentials and configuration setup

To configure the setup:

1. Create a folder with name secret.
2. Access the OCI Link and login to OCI using your credentials.
3. Click Profile option from the menu bar. The option to login in profile appears.
4. Click oracle/<Your email ID> option.

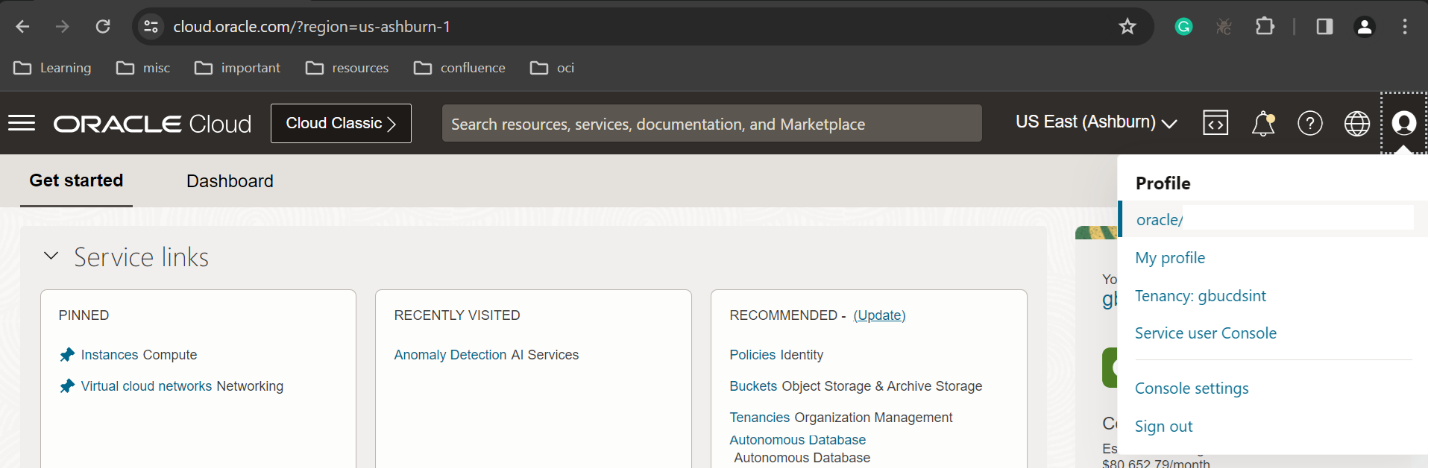

   Figure 11-1 Login with your credentials





   Description of "Figure 11-1 Login with your credentials "



5. Scroll down to the page and click on Add API Key. The Add API Key page appreas.

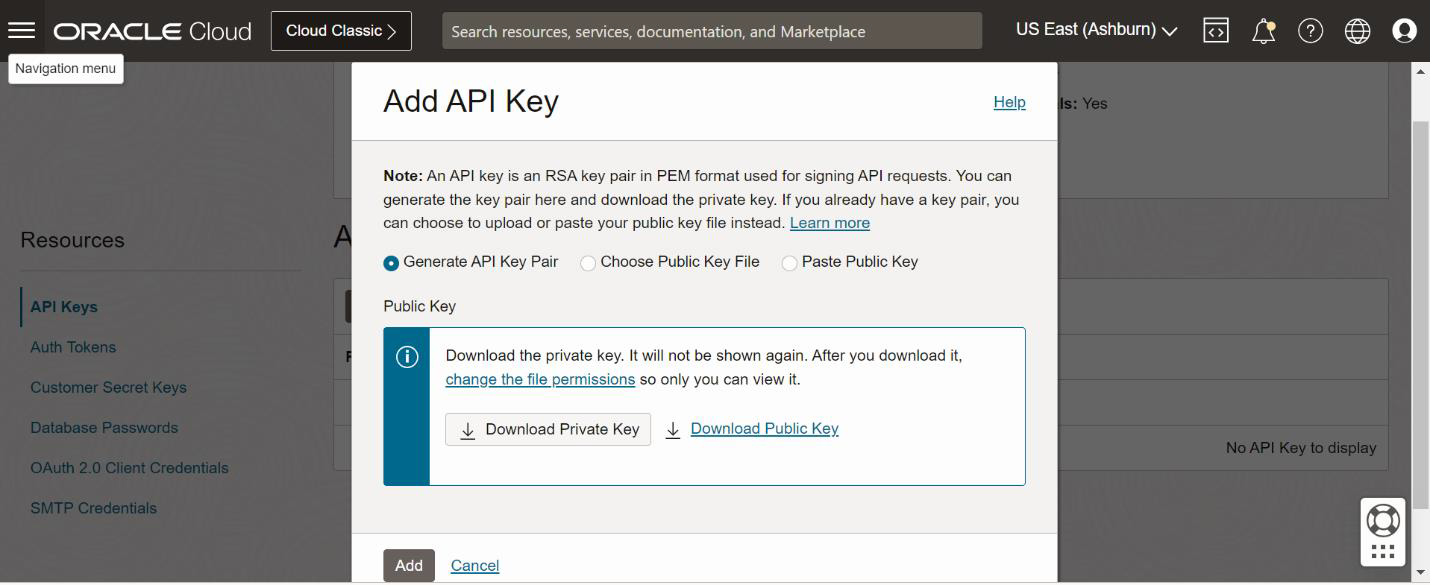

   Figure 11-2 Add API Key





   Description of "Figure 11-2 Add API Key"



6. Click the Download Private Key button. The key get downloaded.
7. Copy the key and enter it in the Select API Key Fingerprint field. The Configuration File Preview window appears.

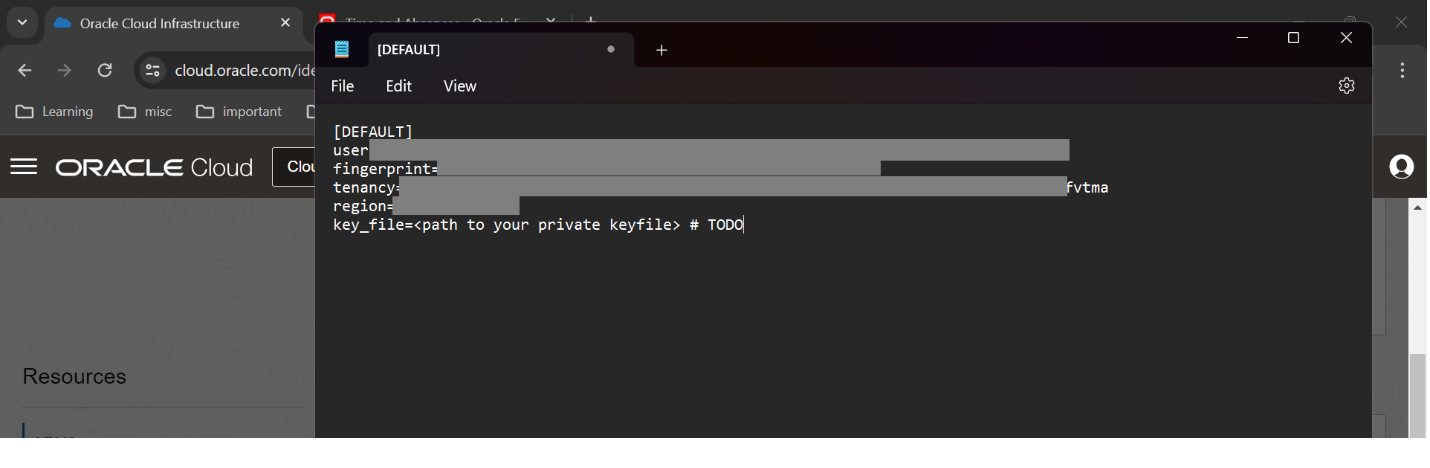

   Figure 11-3 Configuration File Preview





   Description of "Figure 11-3 Configuration File Preview"



8. Save the file in the secret named folder which is already created in Step 1.
9. Copy the downloaded private keys in the secret folder.
10. Edit oci_config.txt file. Change the key file path to the path of the private file in the secret folder. For example: key_file=./secret/oracle_oci.user-01-29-09-12.pem
11. Save the file oci_config.txt.
12. Move the logging-config.json, system-config.json and application-config.json to the current working directory.
13. This is how the folder structure should look like:

    ├──root_dir

    ├── secret

    └── Config.ini

    └── system-config.json

    └── application-config.json

    └── logging-config.json

Starting the application

To start the application:

1. After installing the wheel package and the dependencies and setting up the configuration files, we can run the genai_doc_analyzer server using the below-mentioned command, python -m genai_doc_analyzer.
2. Please note that this will by default run the app on port 7777. You can change the port by passing “–p” argument. For example, python -m genai_doc_analyzer -p 5000.
3. To run the service in the background, use this command nohup python -m genai_doc_analyzer > nohup.txt &.

   Note:

   After the execution of the above command, all the execution logs will be added to nohup.txt which is a text file. Now you may close the terminal and the app will keep running on port, unless stopped explicitly.
4. To terminate or kill the app, we can use the netstat command to find the process_id using the port on which the app is running and then use the kill command with the process_id of the app as shown below to terminate the application.

   netstat -nlp | grep 7777

   kill -9 <process_id>
