1.1 Maintenance for Oracle Banking Origination

This topic describes systematic instructions to maintain Oracle Banking Routing Hub configuration in common core for Oracle Banking Payment Integration Service.

To maintain Oracle Banking Routing Hub configuration in common core for the Oracle Banking Payments Integration Service.

To import the services:

  1. From Home screen, click Core Maintenance. Under Core Maintenance, click Routing Hub.
  2. Under Routing Hub, click RPM_ORIGINATION.
    The Service Consumers screen displays.

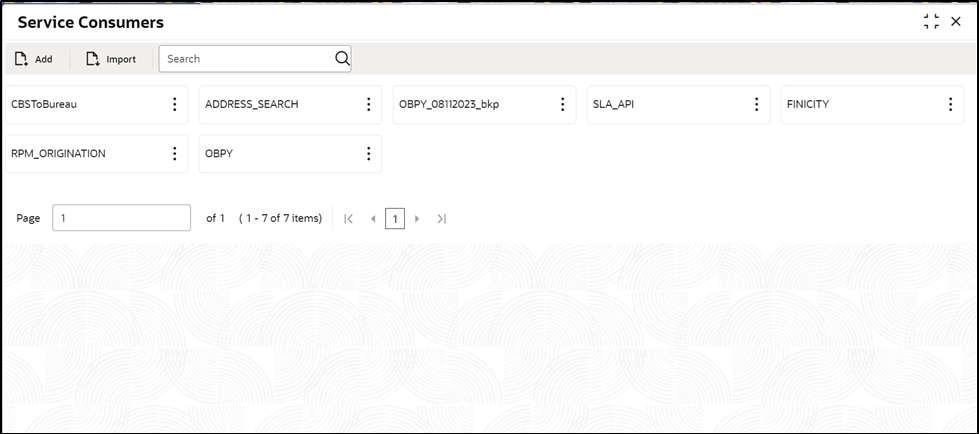

    Figure 1-1 Service Consumer


    Description of Figure 1-1 follows
    Description of "Figure 1-1 Service Consumer"

  3. Click Import and select the RPM_ORIGINATION_OBPM5.0_Provider.json provided in the release into the respective Routing Hub configuration levels.
  4. Under RPM_ORIGINATION Service Providers, click OBPM.

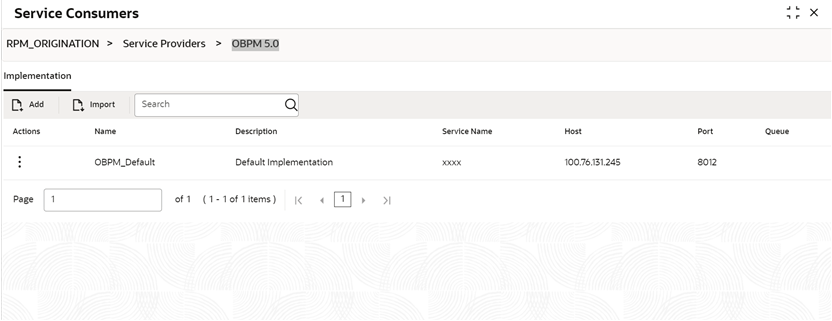

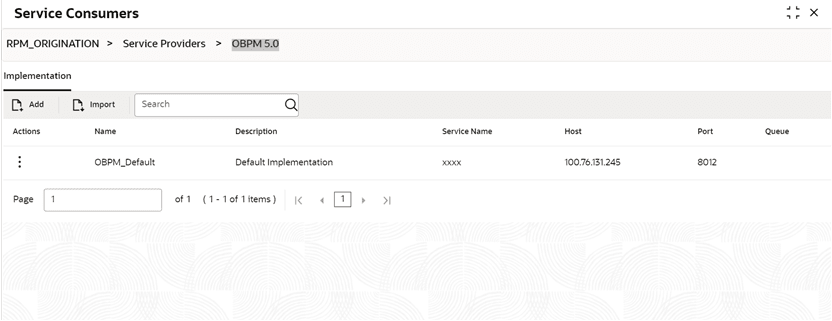

    Figure 1-2 RPM_ORIGINATION-OBPM


    Description of Figure 1-2 follows
    Description of "Figure 1-2 RPM_ORIGINATION-OBPM"

  5. Click Edit.
  6. Change the host and port as per the Oracle Banking Payment Service deployment and save it.

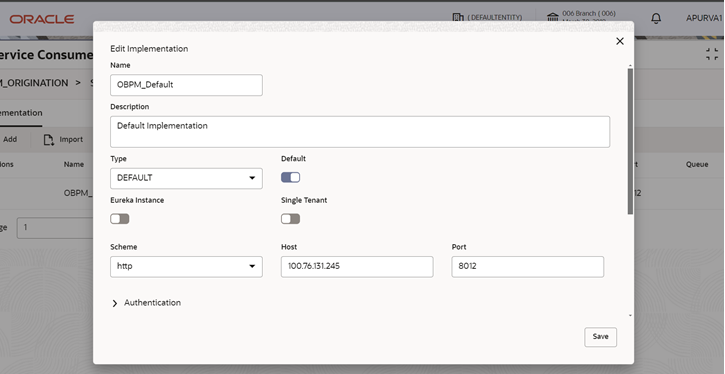

    Figure 1-3 Edit Implementation


    Description of Figure 1-3 follows
    Description of "Figure 1-3 Edit Implementation "

  7. From RPM_ORIGINATION screen, click Consumer Service.
    The Consumer Service screen displays.

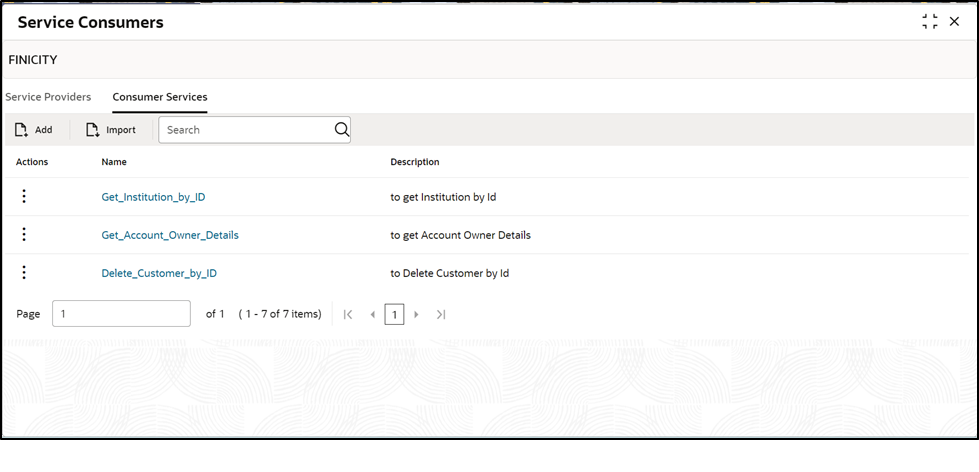

    Figure 1-4 Consumer Services


    Description of Figure 1-4 follows
    Description of "Figure 1-4 Consumer Services"

  8. Click Import to import the External_Account_Fund_Transfer

    1. API for fund transfer

    This allows to transfer funds from the finicity selected account to Oracle Banking Origination newly opened account.

    Table 1-1 Routing Hub Details

    Service Provider Consumer Services Service
    RPM_ORIGINATION External_Account_Fund_Transfer DEBITOUTPAY - /achnachadebitoutpay
