1.4.1 Known Issues for Zipkin

This topic describes the known issues encountered when using Zipkin and how to work around them.

The below known issues addressed when using Zipkin:

• Application Service is not Registered
  Perform the following steps to find the cause of this error:

  1. Check the applications, which are sending the trace report to the Zipkin server from Service Name drop-down list.

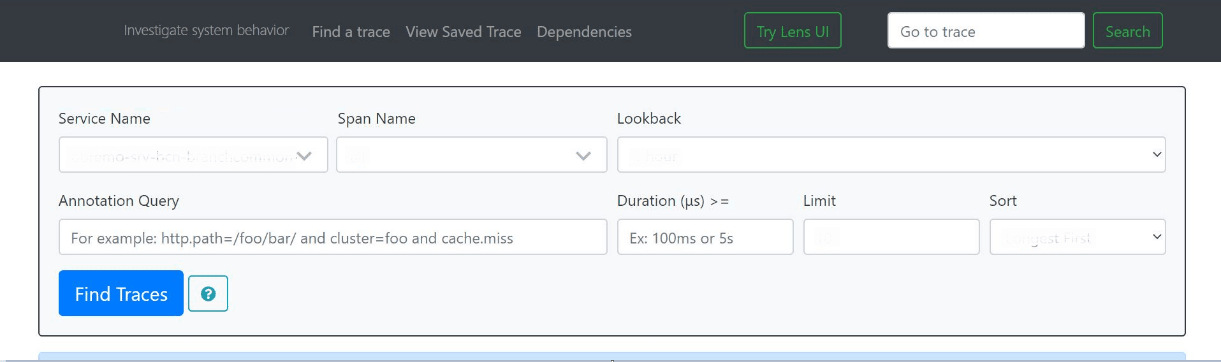

     Figure 1-12 Find Traces





     Description of "Figure 1-12 Find Traces"



  2. If the required application is not listed in Zipkins, check the application.yml file for Zipkin base URL configuration.

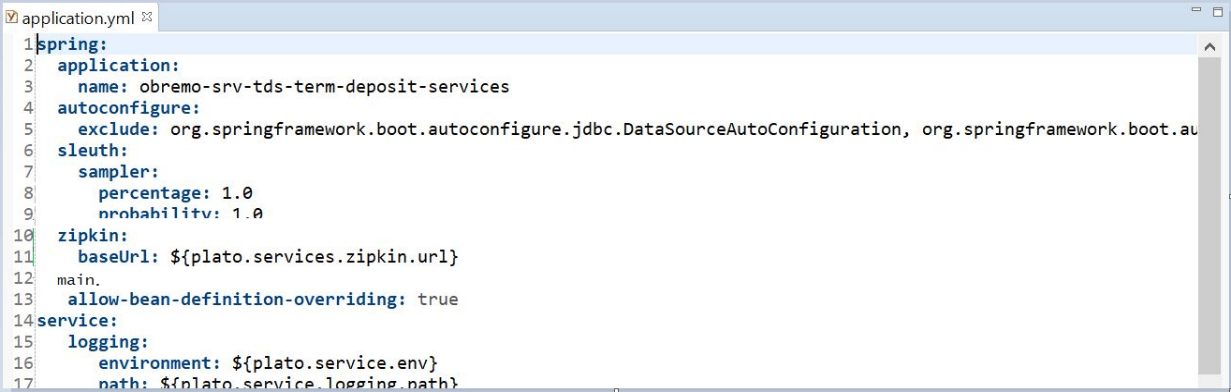

     Figure 1-13 application.yml File





     Description of "Figure 1-13 application.yml File"




     Note:

     The shipped application.yml should have the Zipkin entry. Every service should have spring-cloud-sleuth-zipkin dependency added in the build gradle file for the service to generate and send trace Id and span Id.
  3. The necessary values are as follows:

     • Compile group: org.springframework.cloud

     • name: spring-cloud-sleuth-zipkin

     • version: 2.1.2.RELEASE

     Figure 1-14 Origination Common Services





     Description of "Figure 1-14 Origination Common Services"

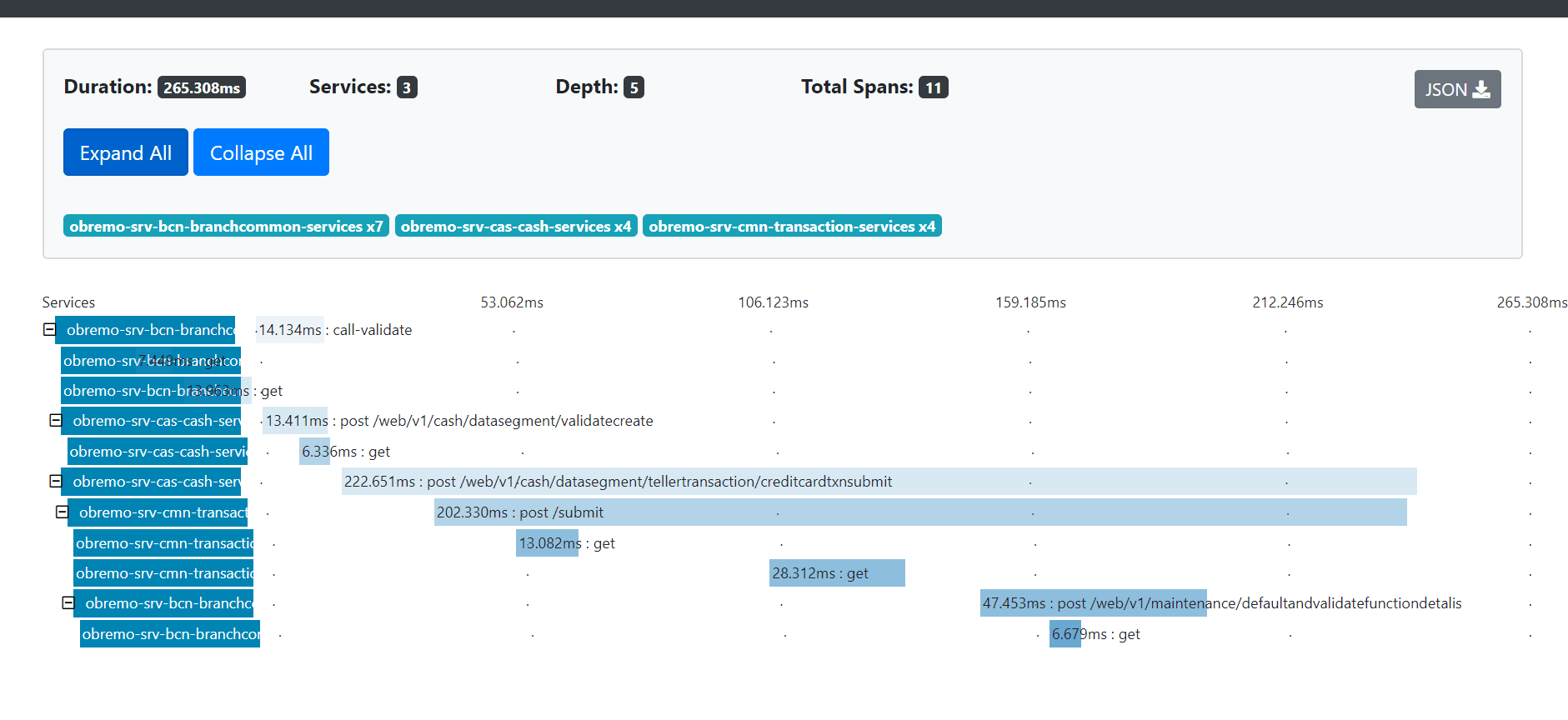

     Figure 1-15 Origination Common Services Trace





     Description of "Figure 1-15 Origination Common Services Trace"



• Page Not Found

  If there is a 404 error, check if the zipkin-server.jar is running in the system where the application is deployed. To check this, execute the following command:

  netstat -ltnup | grep ':9411'

  A sample output is shown below:

  tcp6    0    0    :::9411    :::*    LISTEN    10892/java

  Note:

  In the sample output, 10892 is the PID.
• Unable to Change Zipkin Default Port Number

  The default port number of the Zipkin is not editable. Hence, make sure that port 9411 is available to start the Zipkin-server.jar file.
