1.1.1 Maintenance of Service Providers and Consumer Services

This topic describes the systematic instructions to maintain Service Providers and Consumer Services for Oracle Banking Originations Cloud Service.

To maintain Oracle Banking Routing Hub configuration in common core for Oracle Banking Originations Cloud Service.

Specify User ID and Password, and login to Home screen.

To import the services:

1. On Home screen, click Core Maintenance. Under Core Maintenance, click Routing Hub.
2. Under Routing Hub, click Service Consumers.
   The Service Consumers screen is displayed.

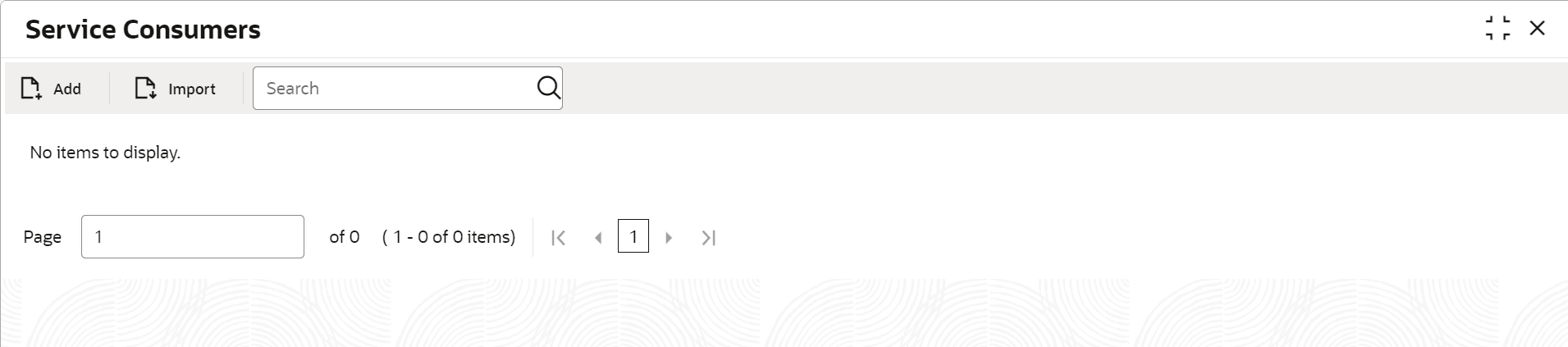

   Figure 1-1 Service Consumers





   Description of "Figure 1-1 Service Consumers"



3. Click Import and upload the RPM_ORIGINATION_Consumer.json file provided in the release and click Extract.

   Figure 1-2 Success





   Description of "Figure 1-2 Success"



4. Select DOCUSIGN ,and click Import.

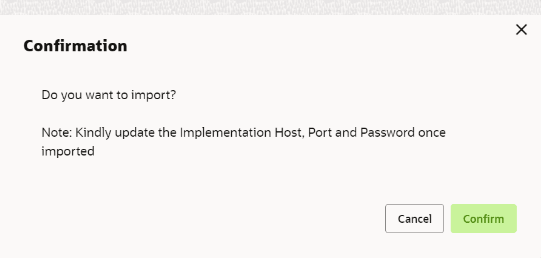

   Figure 1-3 Confirmation





   Description of "Figure 1-3 Confirmation"

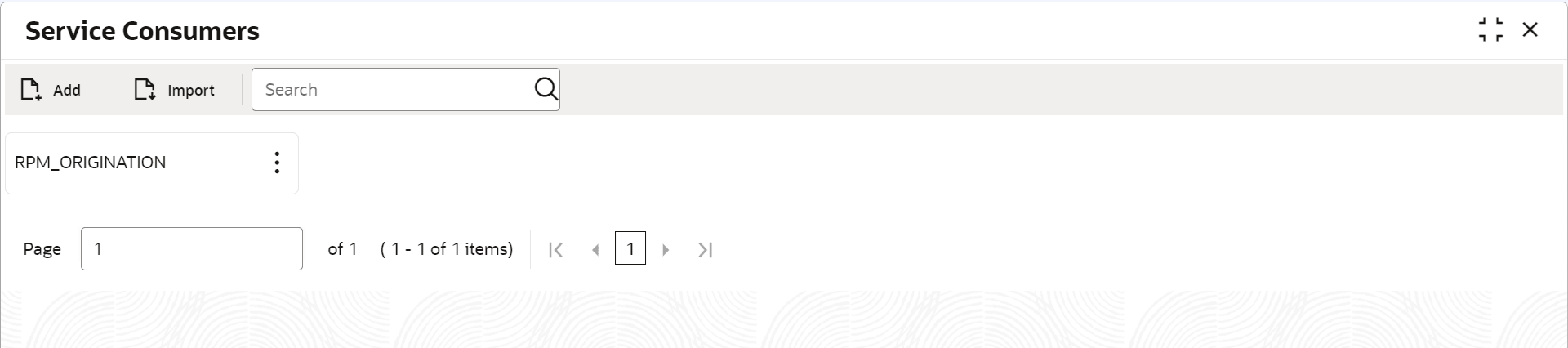

   Figure 1-4 RPM Origination





   Description of "Figure 1-4 RPM Origination"



5. Click RPM_ORIGINATION.Under RPM_ORIGINATION,click DOCUSIGN. Click Edit.
6. Change the host and port as per the oracle DOCUSIGN installation and Click save .
7. Repeat the same steps for all the DOCUSIGN Service Providers.
8. The below consumer services will be imported.

   Table 1-1 Consumer Service

   Consumer Service	Description
   Create_Docusign_Envelope	Usage: Create Docusign Envelope using different authetication Transformation: Create_Docusign_Envelope_No_Auth_Transform Create_Docusign_Envelope_Phone_Auth_Transform Create_Docusign_Envelope_AccessCode_Auth_Transform Create_Docusign_Envelope_IDV_Auth_Transform Create_Docusign_Envelope_KBA_Auth_Transform Get_JWT_Assertion Get_JWT_Access_Token_Transform
   Create_Docusign_Recipients_View	Usage: To generate URL for In-Person signing Transformation: Create_Docusign_Recipients_View_Transform Get_JWT_Assertion Get_JWT_Access_Token_Transform
   Void_Docusign_Envelope	Usage: Void created Docusign envelope Transformation: Void_Docusign_Envelope_Transform Get_JWT_Assertion Get_JWT_Access_Token_Transform
   Download_Docusign_Documents	Usage: Download Signed Documents from Envelope Transformation: Download_Docusign_Documents_Transform Get_JWT_Assertion Get_JWT_Access_Token_Transform
