1.3 Maintenance for Product Processor as environment variable

This topic describes information about the maintenance for oracle FLEXCUBE universal Banking.

Gateway setup should be done in Oracle FLEXCUBE Universal Banking for particular source system (Oracle Banking Originations Cloud Service) by doing maintenance in the below mentioned screens.

1. From Home screen, click Core Maintenance. Under Core Maintenance, click Routing Hub.
2. Under Routing Hub, click Service Consumers.
3. Click Edit.

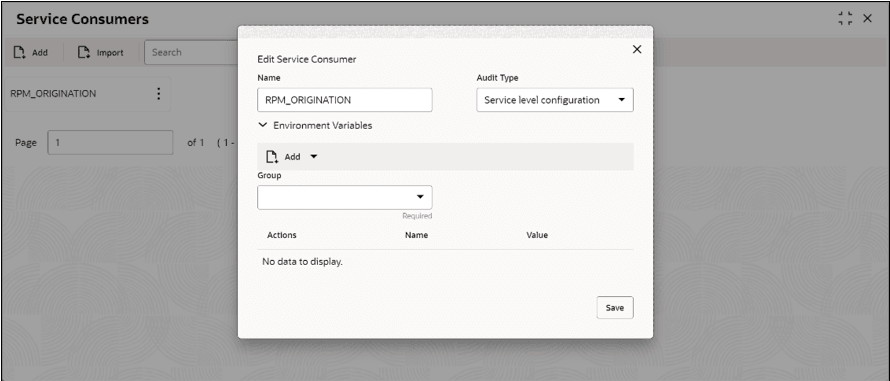

   Figure 1-12 Edit Service Consumer





   Description of "Figure 1-12 Edit Service Consumer"



4. Under Environment Variables, add ASSETS as new group.

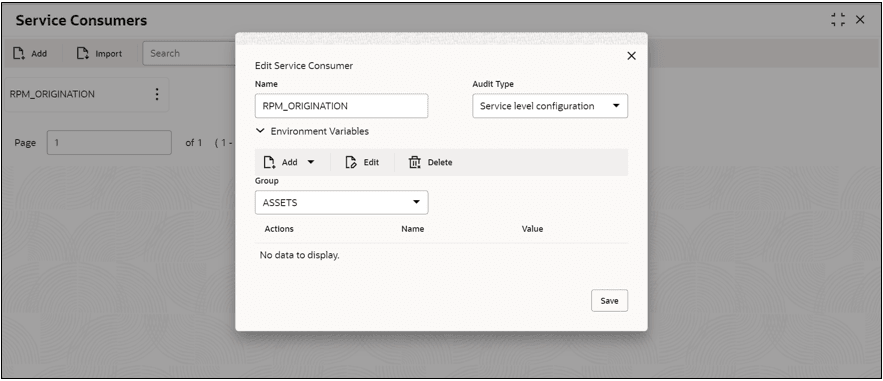

   Figure 1-13 Add Group





   Description of "Figure 1-13 Add Group"



5. Add PP as new variable, FCUBS as value and save it.

   Figure 1-14 Add Variable





   Description of "Figure 1-14 Add Variable"



6. Follow below steps for all consumer services mentioned in point number 10 of 2.2 section.
   1. Search List_All_Liability_Products.
   2. Click Edit.
   3. Add Product_Processor as new attribute, add json path and save it.

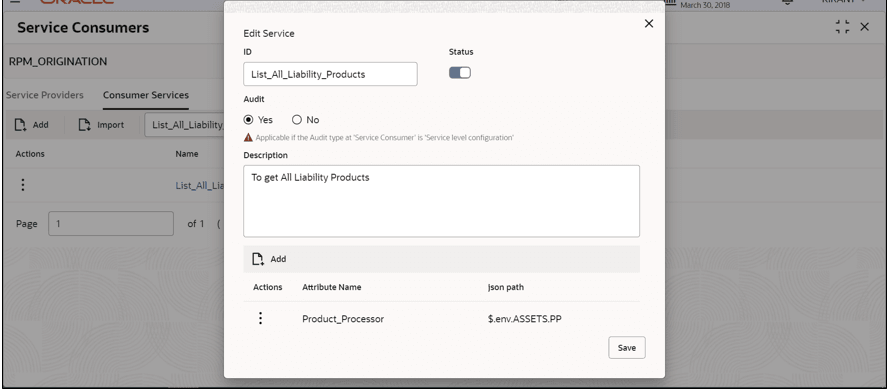

      Figure 1-15 Add Attribute





      Description of "Figure 1-15 Add Attribute"



   4. Click on List_All_Liability_Products Consumer service.
   5. Click on Routing.
   6. Click on Edit for List_All_Liability_Products_Route_RDDA route.
   7. Click on Custom Rule. Click on Expression Editor.
   8. Add Product_Processor as attribute (point 8.c) & “FCUBS” as value(point 5). Save it.

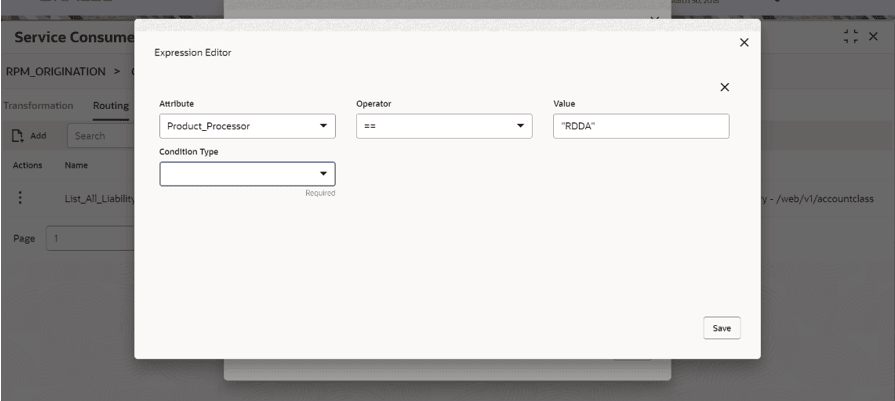

      Figure 1-16 Expression Editor





      Description of "Figure 1-16 Expression Editor"

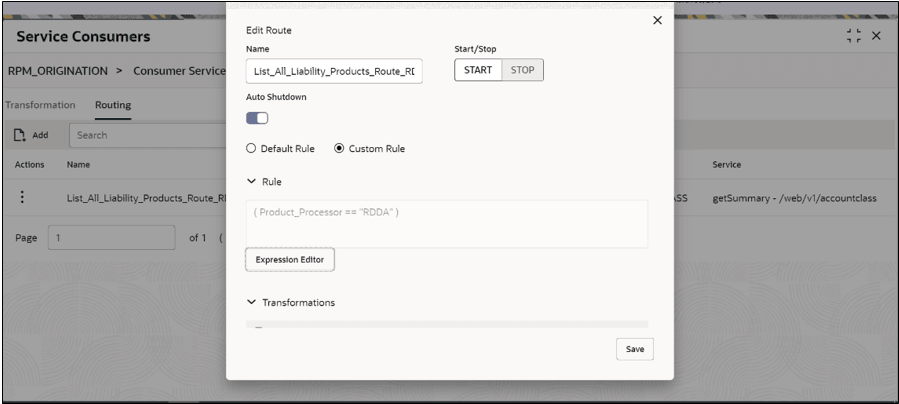

      Figure 1-17 Saved Expression





      Description of "Figure 1-17 Saved Expression"



   9. Save it.

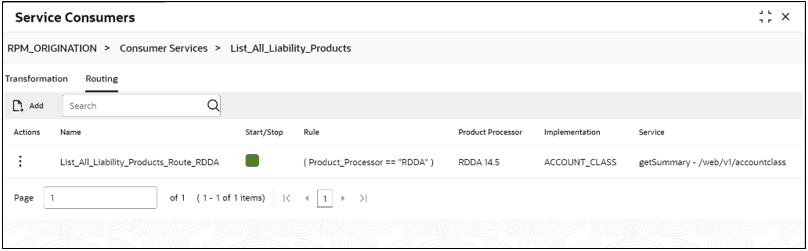

      Figure 1-18 Saved route





      Description of "Figure 1-18 Saved route"
