1.3 Integration of Decision Service

This topic describes systematic instructions to integrate Oracle Banking Originations Cloud Service.

To integrate Oracle Banking Originations Cloud Service with Decision Service through Oracle Banking Routing Hub.

Specify User ID and Password, and login to Home screen.

1. On Home screen, click Core Maintenance. Under Core Maintenance, click Routing Hub.
2. Under Routing Hub, click Service Consumers.
   The Service Consumers screen displays.

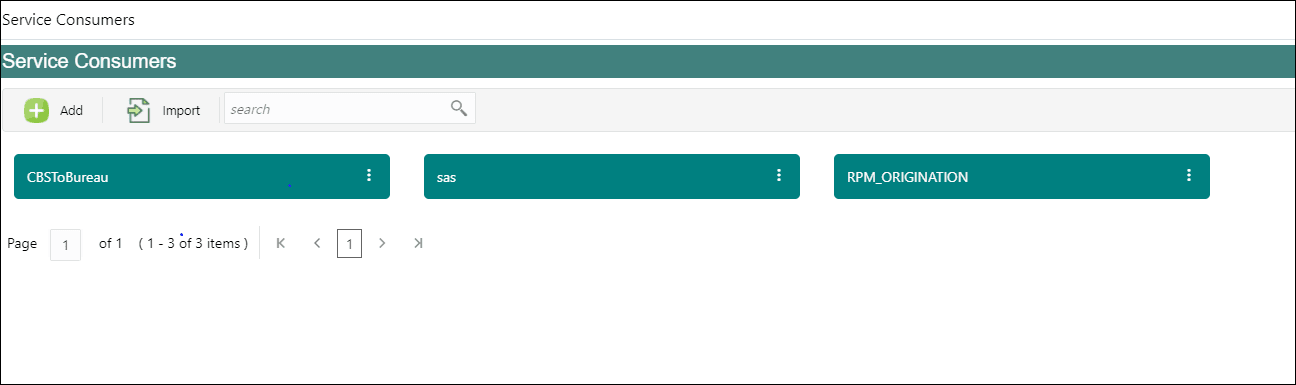

   Figure 1-1 Service Consumers


   Description of "Figure 1-1 Service Consumers"
3. Click RPM_ORIGINATION.
   The RPM_ORIGINATION screen displays.

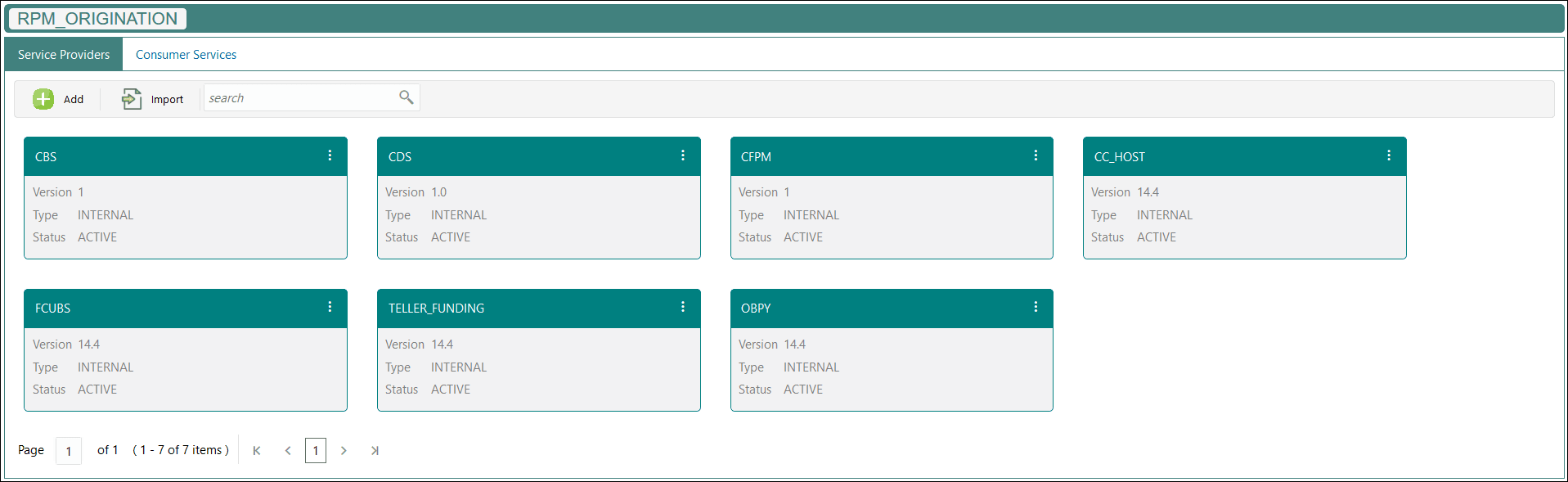

   Figure 1-2 RPM_ORIGINATION


   Description of "Figure 1-2 RPM_ORIGINATION"
4. Under Service Provider tab, click CDS.
   The RPM_ORIGINATION screen displays.

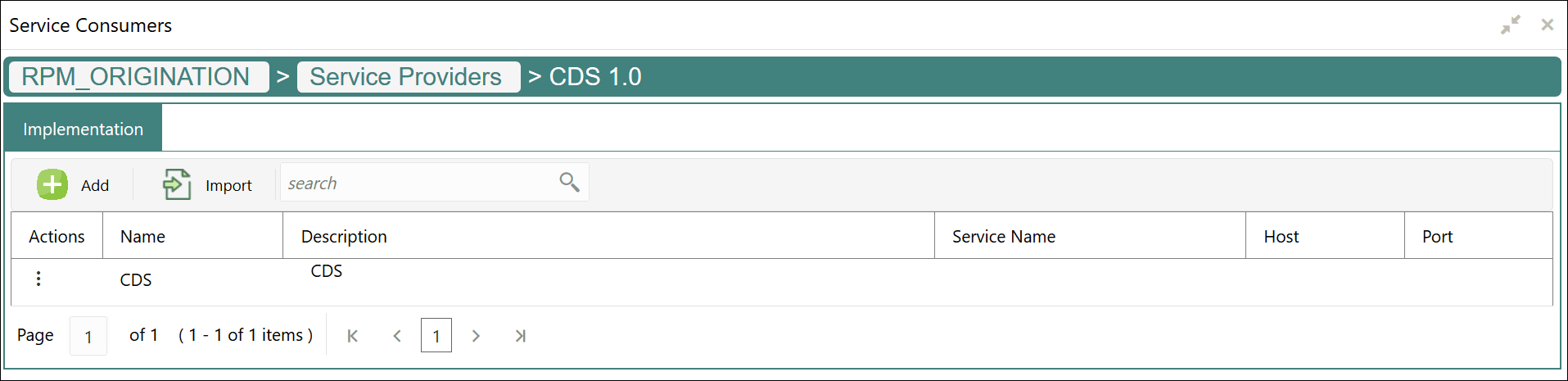

   Figure 1-3 RPM_ORIGINATION - CDS


   Description of "Figure 1-3 RPM_ORIGINATION - CDS"
5. Click actions button and click Edit.
   The RPM_ORIGINATION screen displays.

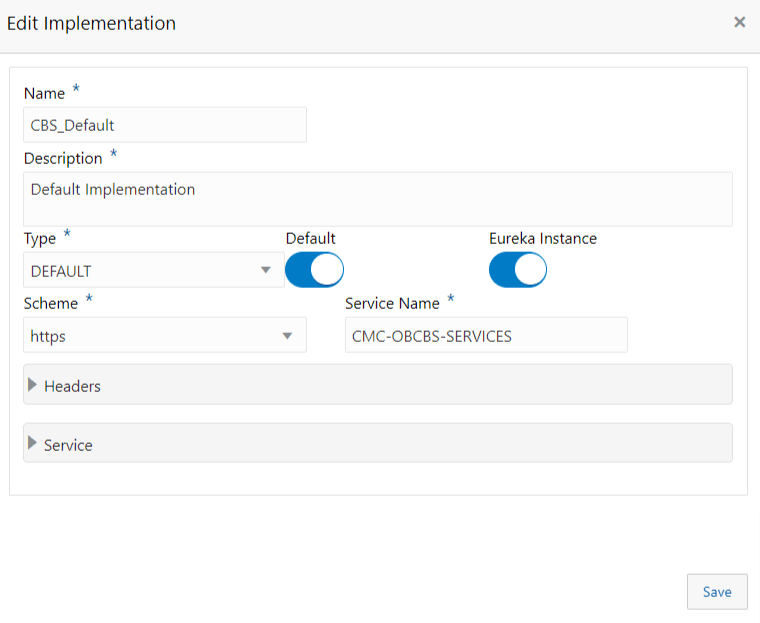

   Figure 1-4 Edit Implementation





   Description of "Figure 1-4 Edit Implementation"



6. Update the Host and Service name as per the environment (port and service name where the cmc-opds-services has been deployed)
7. Click Save to save the implementation details.
