1.1.2 Maintenance of Environment Variables

This topic describes the systematic instructions to maintain Environment Variables in Oracle Banking Routing Hub Configuration for Oracle Banking Originations Cloud Service.

To maintain Environment Variables in Oracle Banking Routing Hub configuration for Oracle Banking Originations Cloud Service.

To import the services:

  1. From Home screen, click Core Maintenance. Under Core Maintenance, click Routing Hub.
  2. Under Routing Hub, click Service Consumers.
  3. Click Edit.

    Figure 1-5 Edit Service Consumers


    Description of Figure 1-5 follows
    Description of "Figure 1-5 Edit Service Consumers"

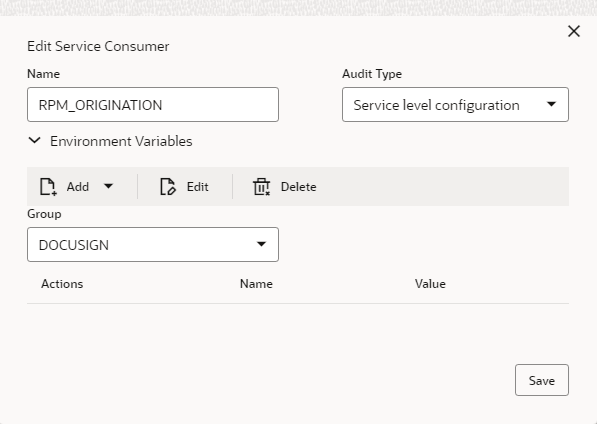

  4. Under Environment Variables, add DOCUSIGN as new group.
  5. Add following as new variable and update respective values as per DOCUSIGN account and click Save.
    1. accountId : <your_docusign_account_id>
    2. recipientAuthMethod : default is NOAUTH
    3. clientId: <your_integration_key>
    4. userId: <your_user_id>
    5. oauthBasePath: default is account-d.docusign.com (developer environment)
    6. scope: default is signature

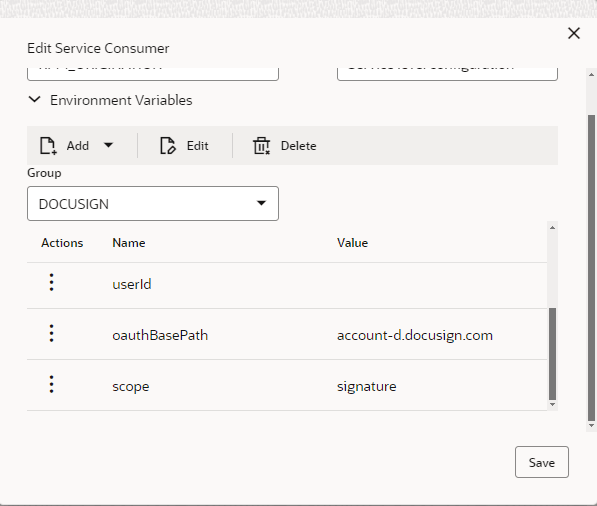

    Figure 1-7 Add Variable


    Description of Figure 1-7 follows
    Description of "Figure 1-7 Add Variable"

  6. Click RPM_ORIGINATION.
  7. Under RPM_ORIGINATION, click Consumer Services.
  8. For all consumer services, refer Table 1-1 section.
    1. Search Void_Docusign_Envelope.
    2. Click Edit.
    3. Add Account Id as new attribute, add json path and Click Save.

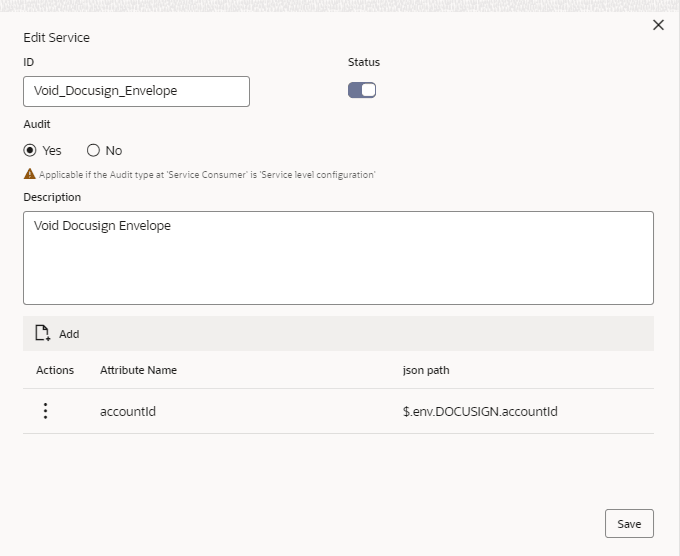

    Figure 1-8 Add Attribute


    Description of Figure 1-8 follows
    Description of "Figure 1-8 Add Attribute"

  9. Follow the below steps for Create_Docusign_Envelope consumer service.
    1. Search Create_Docusign_Envelope.
    2. Click Edit.
    3. Add RECIPIENT_AUTH_METHOD as new attribute, add $.env.DOCUSIGN.recipientAuthMethod json path and clickSave.

      Figure 1-9 Edit Service


      Description of Figure 1-9 follows
      Description of "Figure 1-9 Edit Service"

    4. Click Create_Docusign_Envelope Consumer service.
    5. Click Routing.
    6. Click Edit for Create_Docusign_Envelope_No_Auth_Route route.
    7. Click on Custom Rule. Click on Expression Editor.
    8. Add RECIPIENT_AUTH_METHOD as attribute (refer 9.c) and NOAUTH as value.Save.

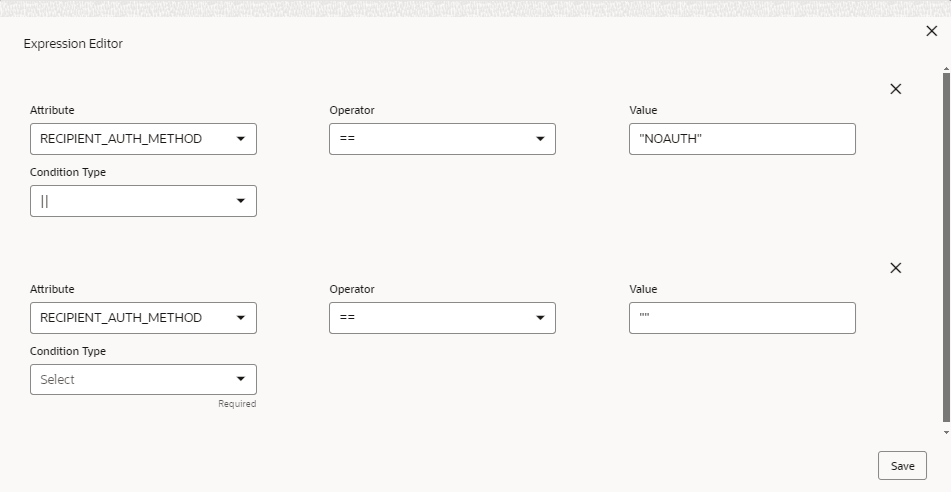

      Figure 1-10 Expression Editor


      Description of Figure 1-10 follows
      Description of "Figure 1-10 Expression Editor"

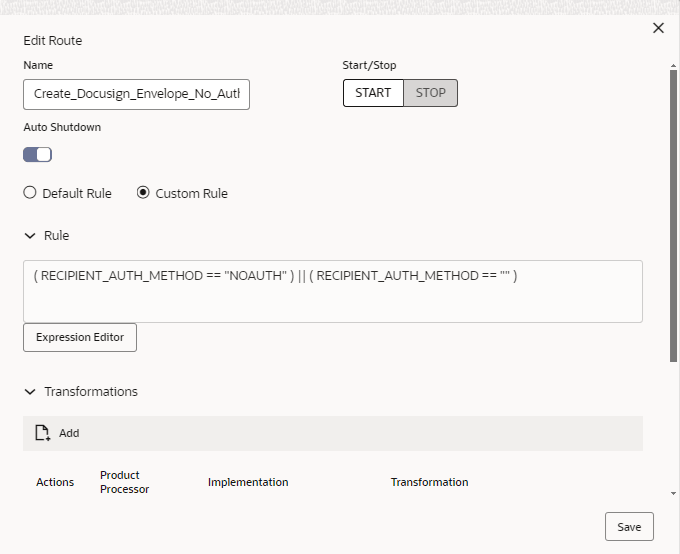

      Figure 1-11 Saved Expression


      Description of Figure 1-11 follows
      Description of "Figure 1-11 Saved Expression"

    9. The figure above shows all other authentication routes,

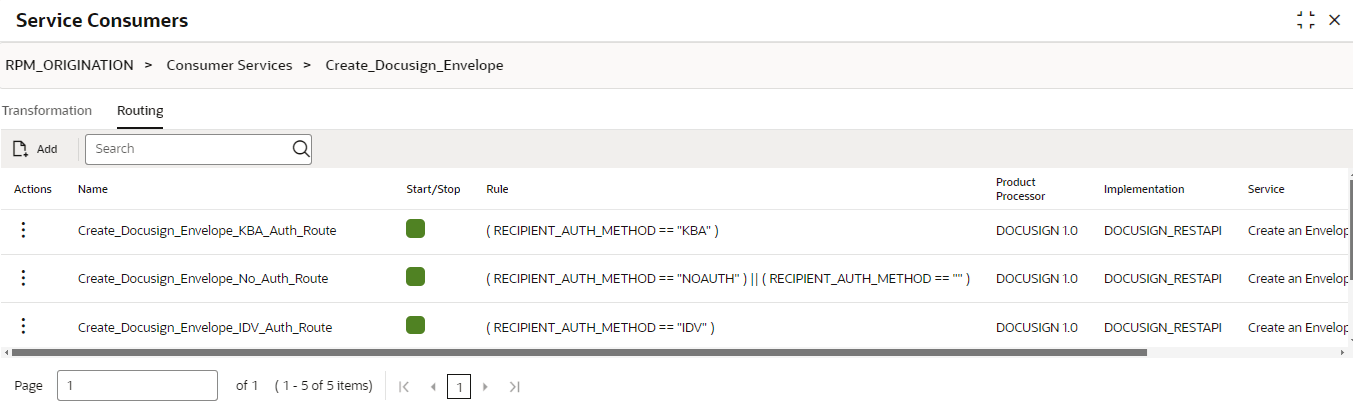

      Figure 1-12 Service Consumers


      Description of Figure 1-12 follows
      Description of "Figure 1-12 Service Consumers"

    10. For all authentication routes, you should follow these steps (f, g, h, i) as shown on the expression screen.
