2.2.1 Connector Network Linkage Maintenance

Use Connector Network Linkage Maintenance screen to link the SWIFTNet connector with the Network defined in Oracle Banking Payments.

  1. On Homepage, specify PMDCONNW in the text box, and click next arrow.
    The Connector Network Linkage Maintenance screen is displayed.

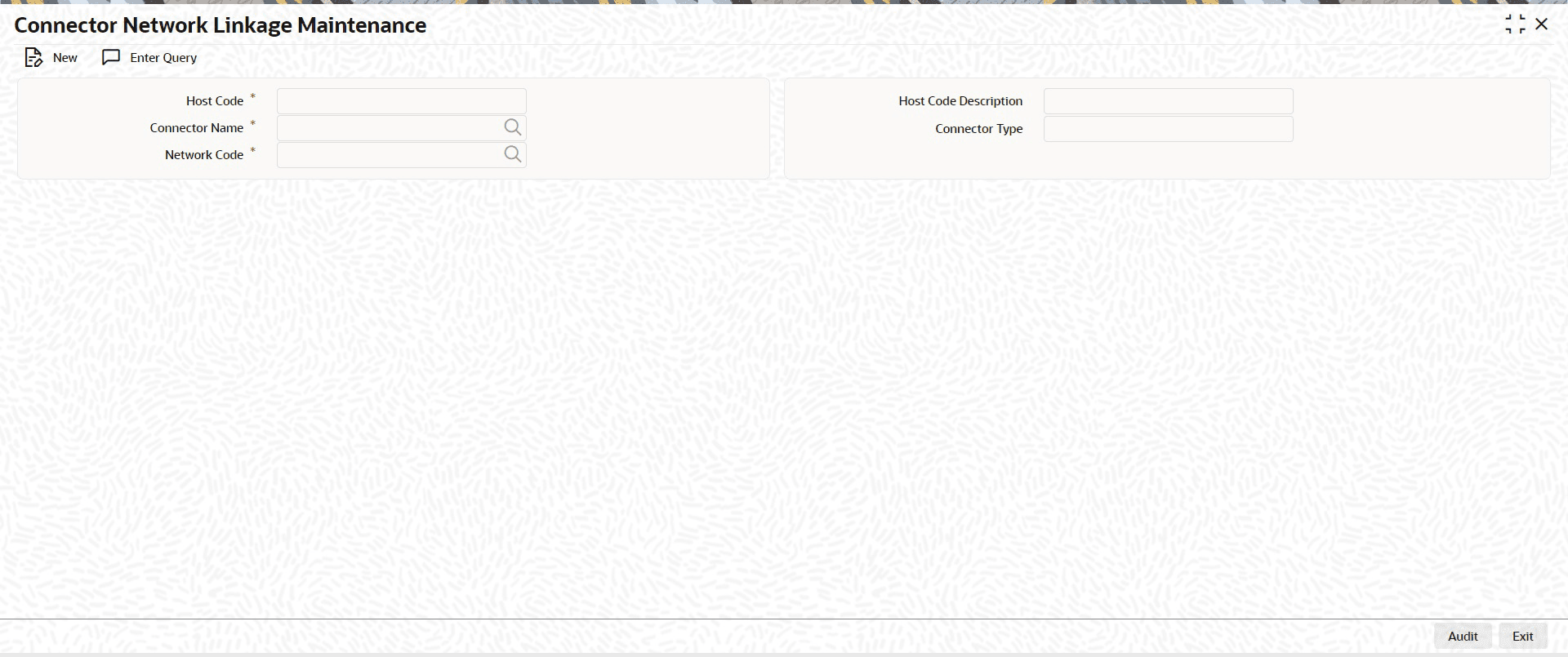

    Figure 2-1 Connector Network Linkage Maintenance

    Description of Figure 2-1 follows
    Description of "Figure 2-1 Connector Network Linkage Maintenance"
  2. On Connector Network Linkage Maintenance screen, click New to specify the fields.
    For more information about the fields, refer to field description table.

    Table 2-1 Connector Network Linkage Maintenance - Field Description

    Field Description
    Host Code This field is defaulted as the logged in Host.
    Host Code Description System defaults the Host Description based on the Host Code defaulted.
    Connector Name Select the Connector Name from the list of values. All open and authorized connectors maintained and linked to the Host in the maintenance FTA Connector Configuration (MSDFTACN) and MQHA Connector Configuration (MSDMQHAC) are listed.
    Connector Type Specify the Connector Type of the Connector Name selected.
    Network Code Select the Network Code from the list of values. All open and authorized Network codes of payment type SEPA CT and SEPA DD are listed.
