28.1.1 Generic Wires ISO Notification Of Correspondence Common Input and View Screen Detailed

The Generic Wires ISO Notification Of Correspondence Common Input and View Screen Detailed screen allows user to generate outbound admi.024 Notification of Correspondence message.

1. On Homepage, specify PSDCSNOC in the text box, and click next arrow.
   The Generic Wires ISO Notification Of Correspondence Common Input and View Screen Detailed screen is displayed.

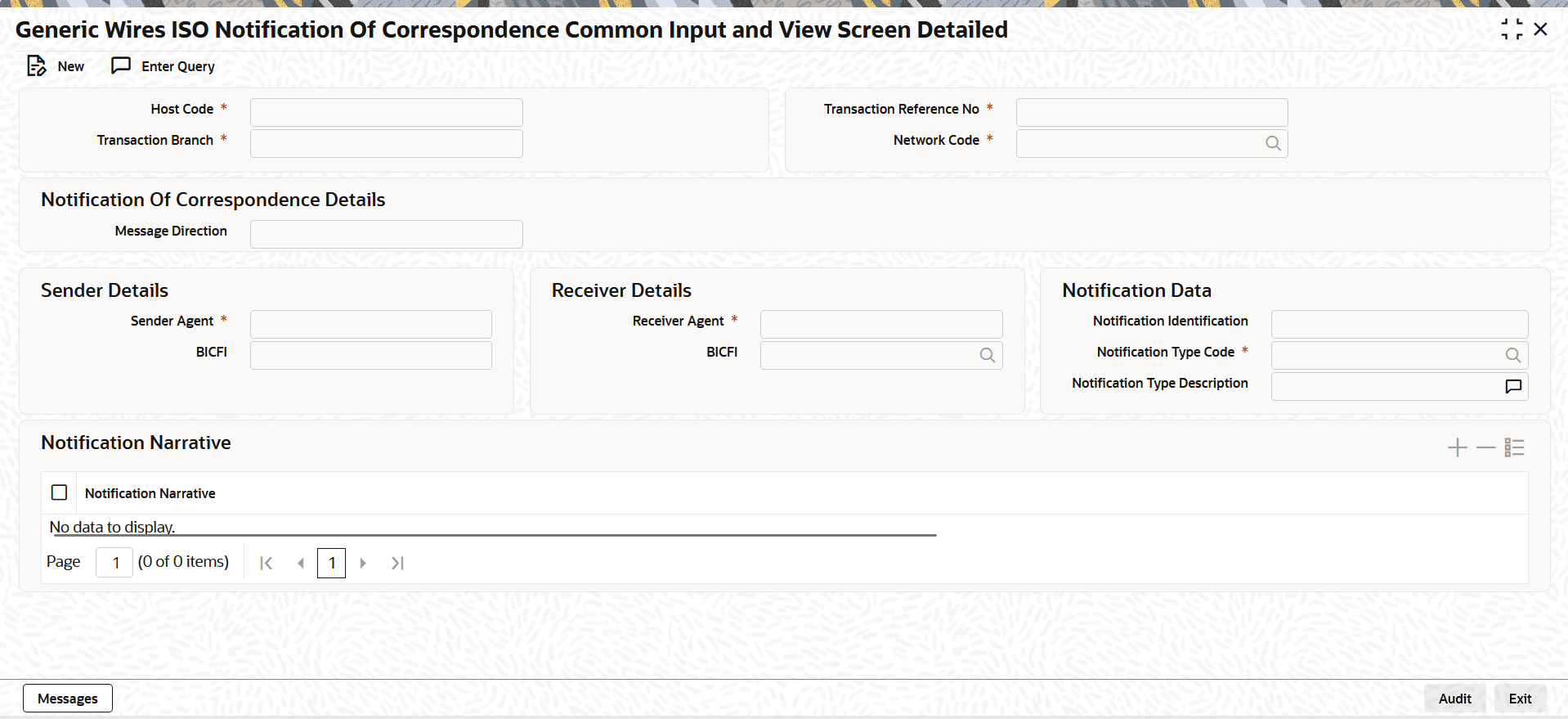

   Figure 28-1 Generic Wires ISO Notification Of Correspondence Common Input and View Screen Detailed





   Description of "Figure 28-1 Generic Wires ISO Notification Of Correspondence Common Input and View Screen Detailed"



2. On Generic Wires ISO Notification Of Correspondence Common Input and View Screen Detailed screen, click New to specify the fields.
   For more information about the fields, refer to field description table.

   Table 28-1 Generic Wires ISO Notification Of Correspondence Common Input and View Screen Detailed - Field Description

   Field	Description
   Host Code	System defaults the Host Code of the transaction branch when the user clicks the New button.
   Network Code	Specify the Network Code from the list of values. The list of values displays all cross-border MX networks defined in the Network Code Definition (PMDNWCOD) for the host.
   Transaction Branch	System defaults the transaction branch of the user’s logged in branch on clicking New button.
   Transaction Reference Number	System displays the Transaction Reference Number.
   Notification Of Correspondence Details	This section displays the Notification Of Correspondence Details.
   Message Direction	System displays Direction of Message. The possible values are: Incoming Outgoing This field is non-editable.
   Sender Details	This section displays the Sender Details.
   Sender Agent	Specify the FI Name of Sending Party.
   BICFI	Specify the BICFI of Sender Agent.
   Receiver Details	This section displays the Receiver Details.
   Receiver Agent	Specify the FI Name of Receiving Party.
   BICFI	Specify the BICFI of Receiver Agent.
   Notification Data	This section displays the Notification Data.
   Notification Identification	System displays Identification of notification Record.
   Notification Type Code	Specify the Notification Type Code from the list of values. Specific Code are defined by CBPRPlus for admi.024.
   Notification Type Description	Notification Type Description is auto-populated based on Notification Type Code selected.
   Notification Narrative	This section displays the Notification Narrative.
   Notification Narrative	Specify the information about the notification in narrative form.
