25.1.1.5 Response Data - Transaction Data Tab

This topic explains the Response Data details of the Generic Wires ISO Outbound Investigation Response Input Detailed screen.

1. From the main screen, select the Transaction Data tab.
   The Transaction Data details are displayed.

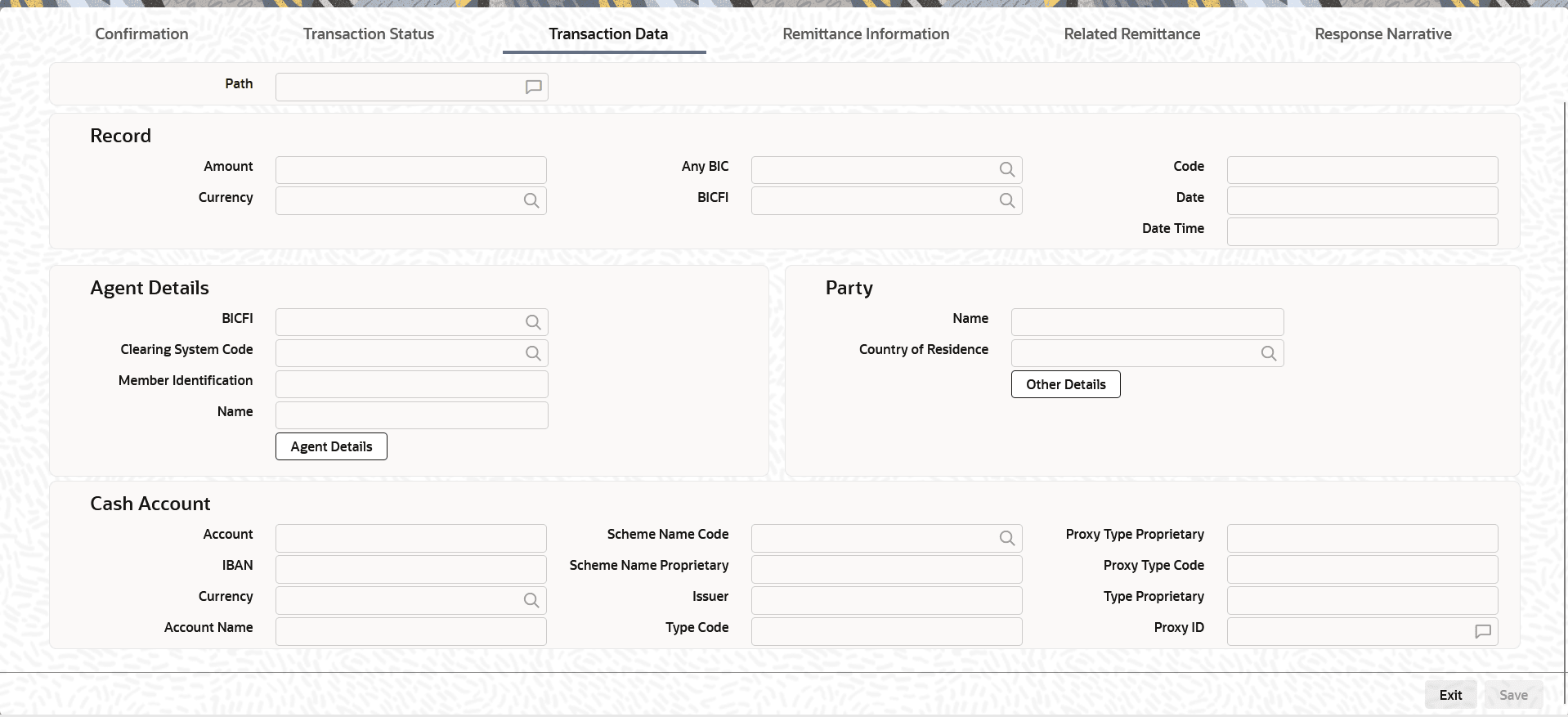

   Figure 25-6 Generic Wires ISO Outbound Investigation Response Input Detailed_Response Data_Transaction Data Tab





   Description of "Figure 25-6 Generic Wires ISO Outbound Investigation Response Input Detailed_Response Data_Transaction Data Tab"



2. On Transaction Data, specify the fields.
   For more information about the fields, refer to field description table.

   Table 25-6 Generic Wires ISO Outbound Investigation Request Input Detailed_Response Data_Transaction Data Tab - Field Description

   Field	Description
   Path	Specify the path.
   Record	This section displays the Record details.
   Amount	Specify the Transfer amount.
   Currency	Specify the Currency from the list of values. The list displays all valid (Open/Authorized) currencies defined.
   Any BIC	Specify the Any BIC from the list of values. The list displays all valid (Open/Authorized) BIC defined.
   BICFI	Specify the Any BIC from the list of values. The list displays all valid (Open/Authorized) BIC defined.
   Code	Specifies details on a code that was requested.
   Date	Specifies details of a date that was requested.
   Date Time	Specifies details on a date and time that was requested.
   Agent Details	This section displays the Agent Details.
   BICFI	Specify the BIC from the list of values.
   Clearing System Code	Specify the Clearing System Code from the list of values.
   Member Identification	Specify the Member Identification.
   Name	Specify the Name.
